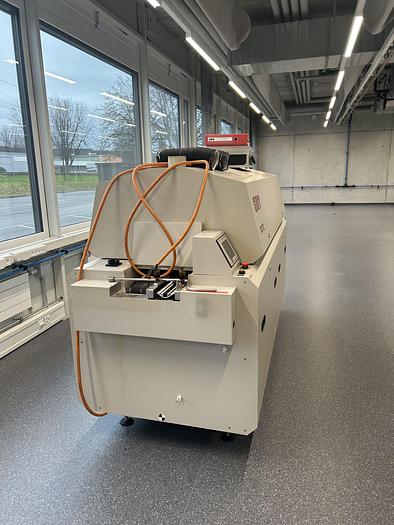

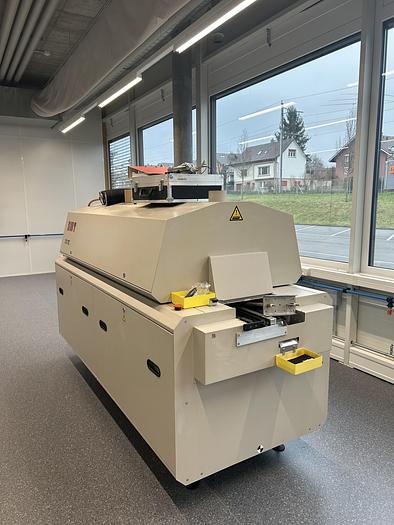

2004 SMT 1.2 TC
2004 SMT 1.2 TC
€4,500 (EUR)
Zürich, Switzerland
Description
Great working condition
- Vintage : 2004
- Dimensions (L x W x H) : 2400 x 1000 x 1440 mm
- Conveyor direction : left to right
- Air oven
- Stainless steel mesh belt conveyor
- Conveyor speed : 0,2 à 2 m/min
- Conveyor width : 300 mm
- Allowable components clearance : 80 mm above
- Heating length : 1080 mm
. 2 preheating top zones (2 x 400 mm)
. 1 peak zone top and bot (1 x 280 mm)
. Maximum process temperature : 300°C
. Temperature rise and stabilization time : 15 min
. Heating by forced convection
- 1 air cooling zone (1 x 550 mm)
- 1 hot air extraction fan from above
- Electric heating tunnel opening
- Use the friendly touch screen panel
- Voltage : 400 Volts / 25 A
- Total power : 15 Kw
- Exaust : 2 x Ø 100 mm - 2 x 300 m3
- 1 main disconnector / 2 emergency stops
The SMT 1.2 TC (N2) oven is 100 % forced
forced convection. Two versions are available
versions are available, for air and nitrogen (N2)
nitrogen (N2).
The machine is designed to provide high
to provide high performance welds
performance, both in leaded and lead-free processes, for medium
processes, for medium production rates. The
SMT 1.2 TC is the ideal furnace for
prototyping, pre-production runs, and small series.
small series.
It is equipped with SMT's patented air injector
patented SMT air injector system. In addition to the large
air generation capacity of 600 m³/h
a very high heat transfer is achieved.
heat transfer. This enables soldering with the new lead-free
new lead-free solder pastes at low temperatures.
temperatures.
The control of this equipment is done by a CAN bus control system.
a CAN bus control system.
All process data are visible on the colour monitor.
on the colour monitor.
The basic furnace is equipped with a
mesh conveying system. For double-sided
for double-sided circuits or in-line
for double-sided circuits or in-line work, there is the possibility, as an option,
to install a chain system on top of the
on top of the mesh
Lead-free soldering at low temperatures.
- Very low delta T
- Little floor space
- Narrow, door entry
- Low energy consumption
- Low nitrogen consumption (if applicable)
- Easy maintenance
- Patented SMT nozzle system.
- High fan power, 600 m³/h each
- Peak temperature up to 350 °C
- Average conveying speed 0.25 to 0.35 m/min
- Flux filters in the cooling zone
- Motorised opening of the furnace lid
- Process chamber made of stainless steel
- Optional "Management Data System
Find more here - https://www.ucymachines.com/
Specifications
Manufacturer | SMT |
Model | 1.2 TC |
Year | 2004 |
Condition | Used |
