Used Gravel Washing Plant

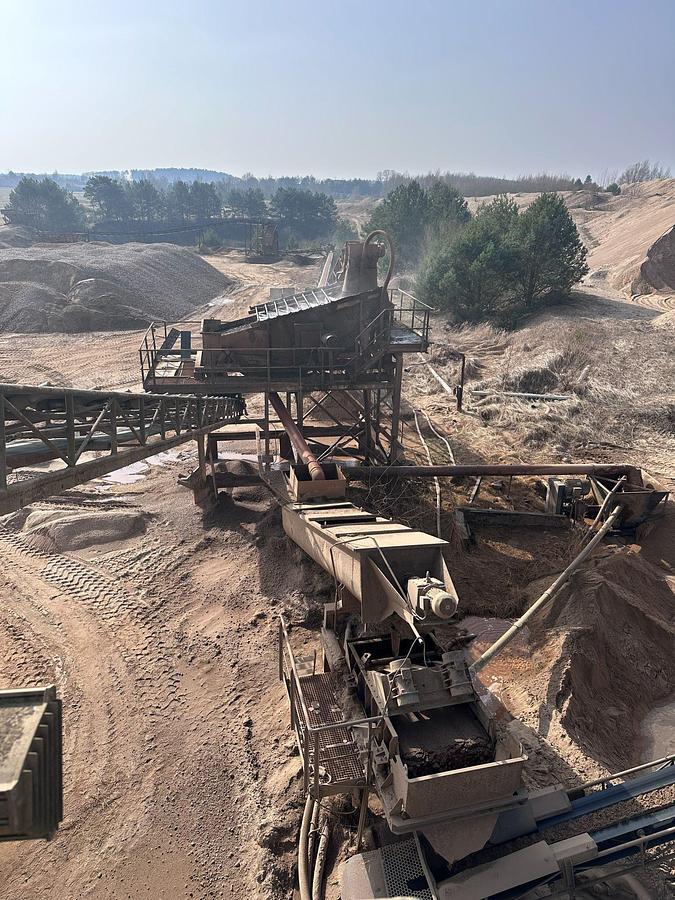

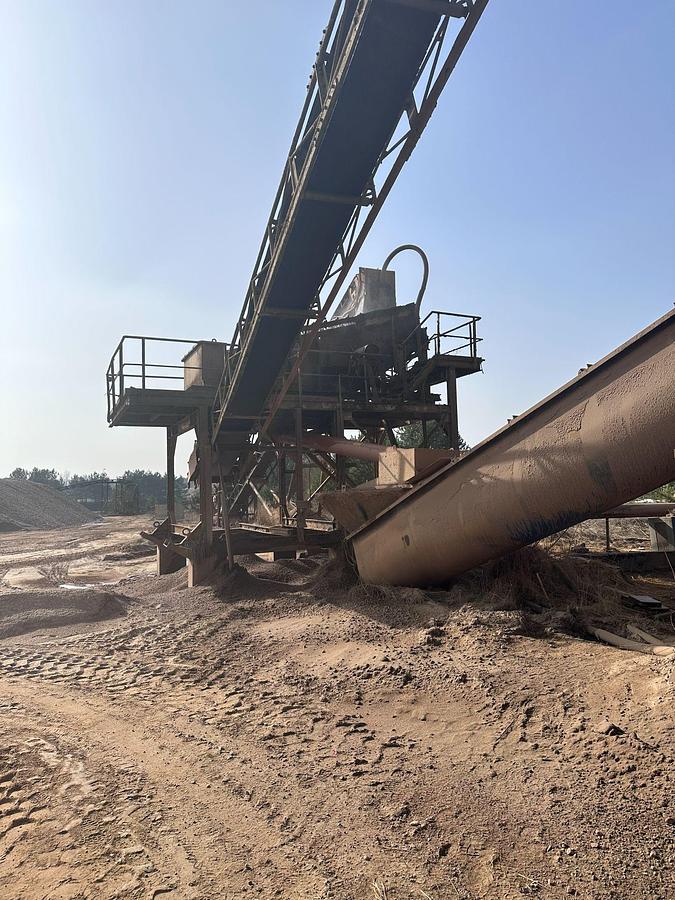

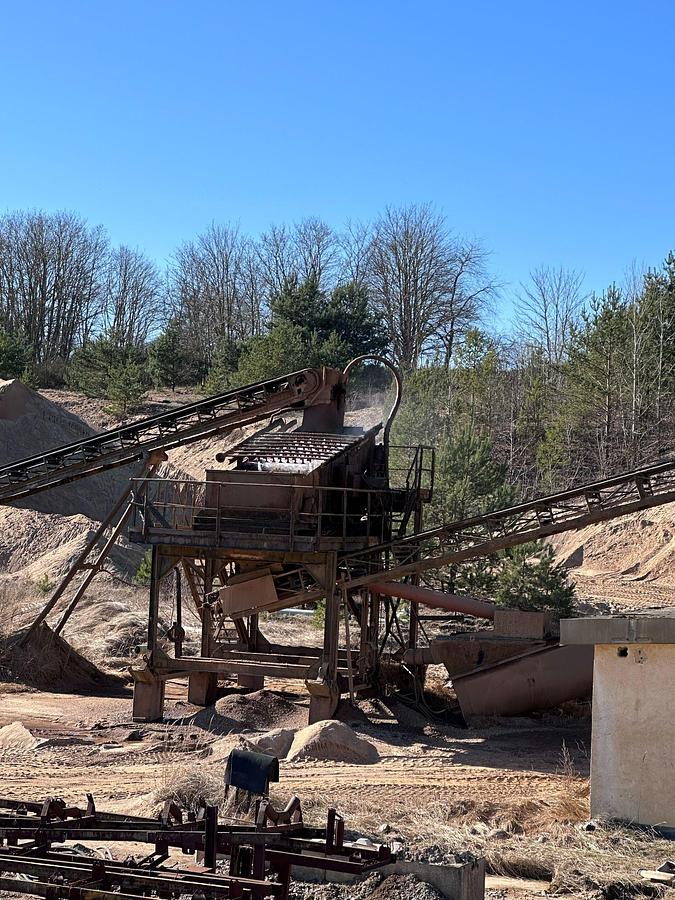

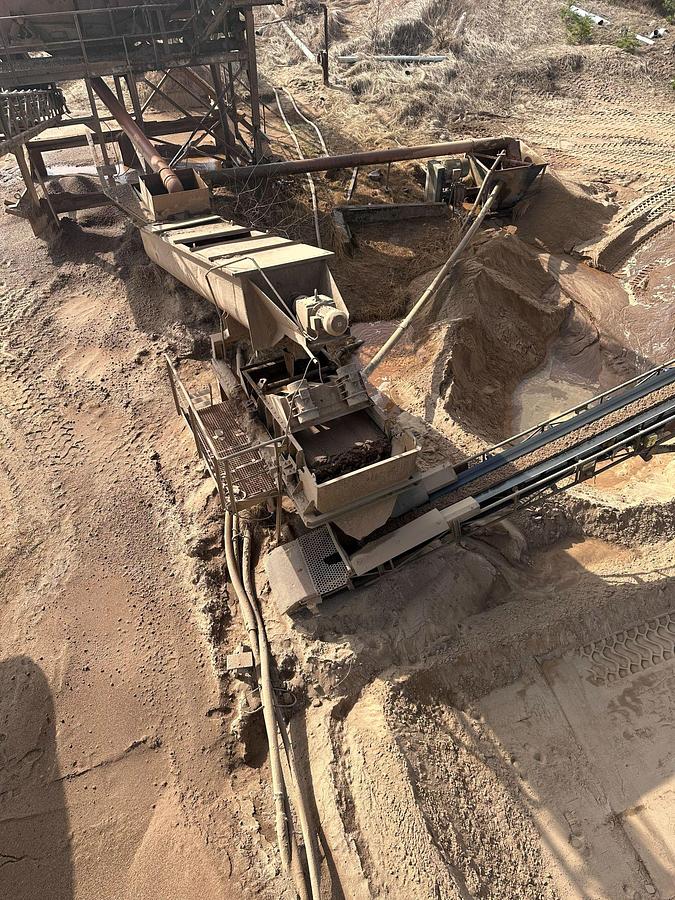

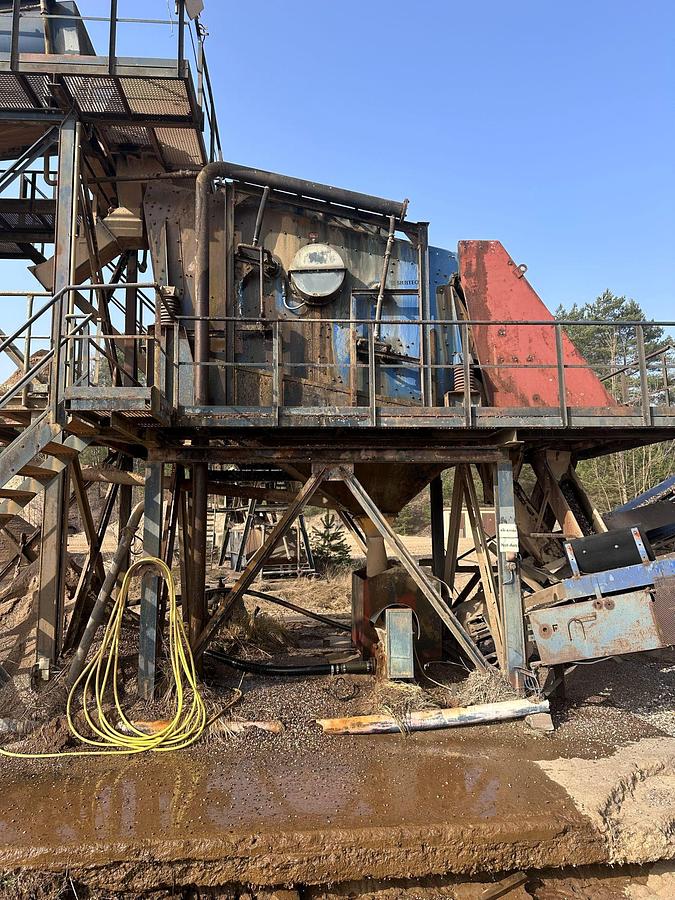

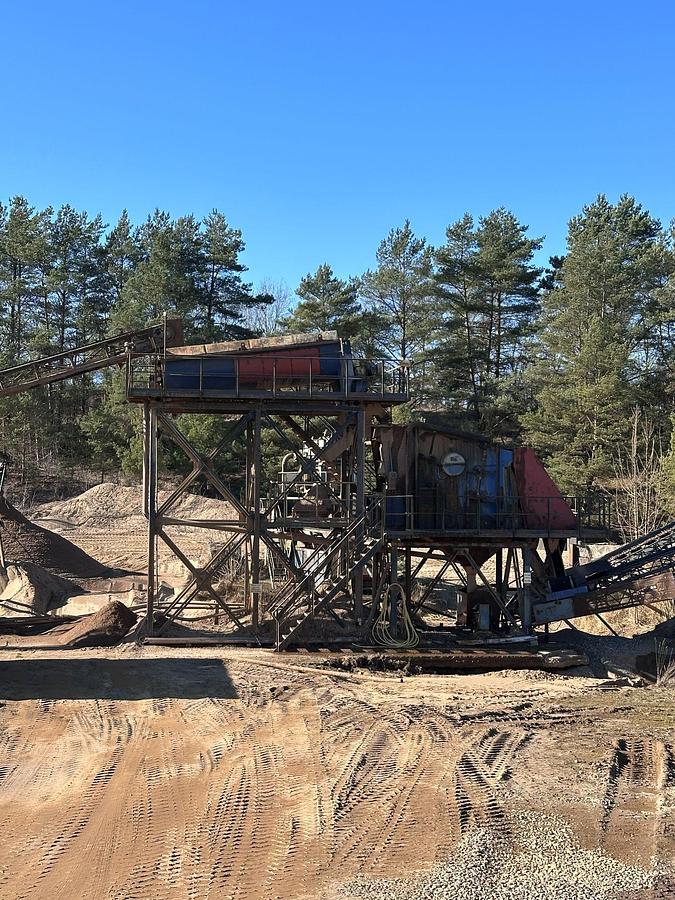

Complete used gravel washing plant available for sale. This is a fully operational gravel washing and screening plant currently still in use.

Complete Plant Component List

1. Feed conveyor for sand classifying screen

• Year: 1991
• Details: Belt width 650 mm / Length 20 m / Stiebel flat gearbox drive
• Condition: Operational

2. Sand classifying screen (single-deck vibrating screen / wash screen)

• Details: Steinhaus / Siebtechnik / PU screen
• Condition: Operational

3. Feed conveyor for log washer

• Year: 1991
• Details: Belt width 650 mm / Length 20 m / Stiebel flat gearbox drive
• Condition: Operational

4. Wolff double-shaft log washer

• Year: 1991
• Details: Wolff Type SW 50
• Condition: Operational

5. 3-deck screening machine / Steinhaus screen

• Year: 2016
• Details: Siebtechnik Type V16.5/40/III KR
• Condition: Operational

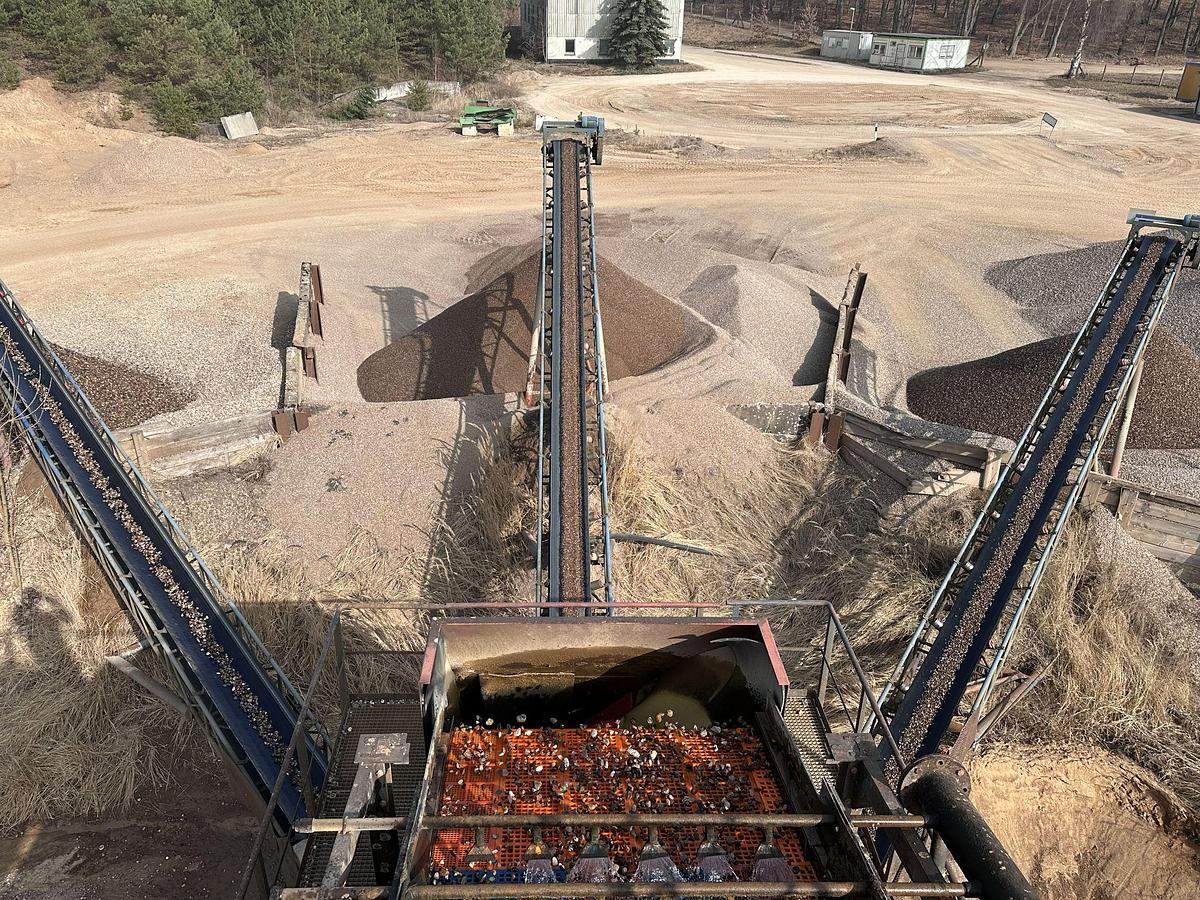

6. 3 x stockpile conveyors

• Year: 1991
• Details: Belt width 500 mm / Length 16 m each
• Condition: Operational

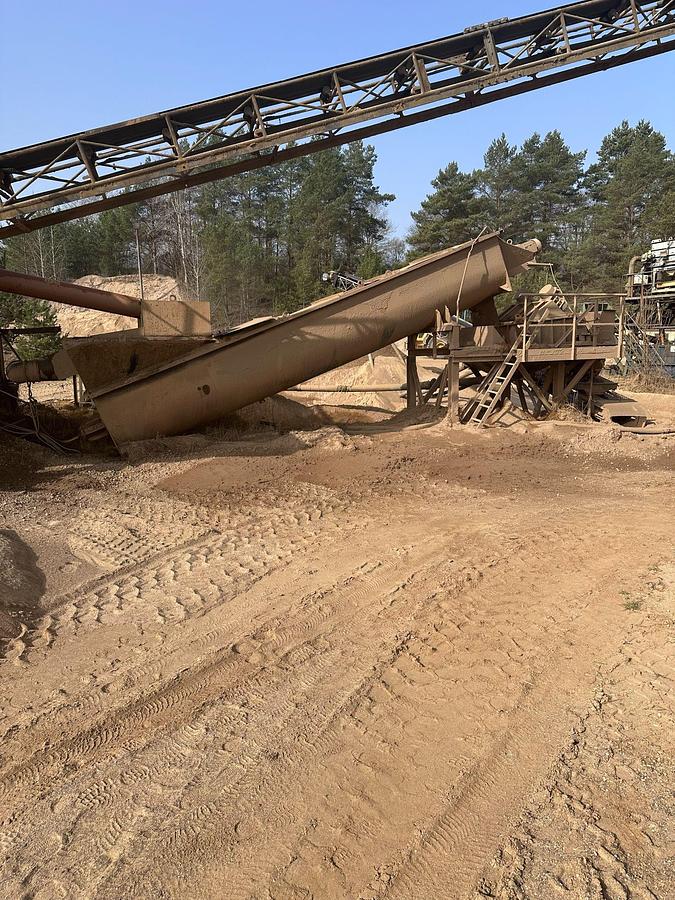

7. Wolff sand screw classifier

• Year: 1991
• Details: Wolff WSS 1000
• Condition: Defective

8. Dewatering chute

• Condition: Operational

9. Stockpile conveyor

• Details: Belt width 650 mm / Length 22 m / Stiebel flat gearbox drive
• Condition: Operational

10. Warman slurry pump

• Details: Optional
• Condition: Operational

11. Warman slurry pump

• Details: Optional
• Condition: Operational

12. Fresh water pump (Speck)

• Details: Optional
• Condition: Operational

13. IBAG jaw crusher

• Condition: Operational

14. Steinhaus / Siebtechnik jig machine

• Condition: Defective

15. Steel structure wash tower

• Condition: Operational

16. Single-deck dry screening machine

• Condition: Operational

17. 3 x overland conveyors

• Details: Belt width 650 mm / Total length approx. 450 m
• Condition: Operational

18. 2 x feed hoppers approx. 16 m3

• Details: Discharge with vibrator
