Keyence RB-1200 / CV-X480D / CA-E200T

No longer available

Keyence RB-1200 / CV-X480D / CA-E200T

Munich, Germany

Description

Keyence RB-1200 / CV-X480D / CA-E200T

Like NEW, rarely used

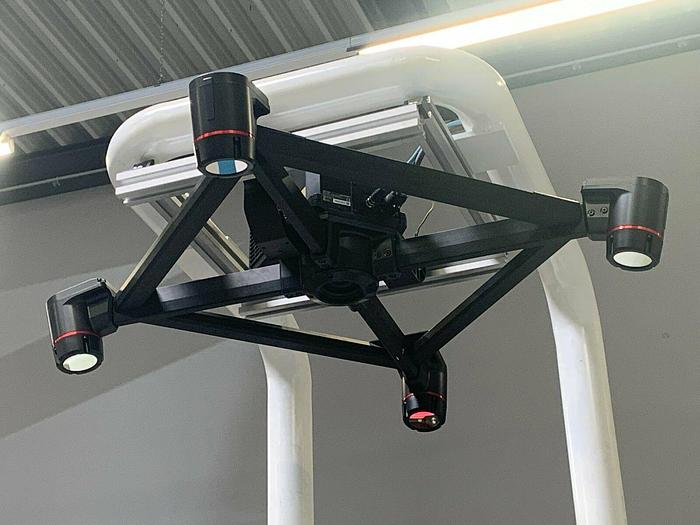

3D Vision-Guided Robotics Camera




- 3D Camera System RB-1200

- Controller CV-X480D

- Extension module CA-E200T


We have a Keyence RB-1200 incl. accessories with us, which was exclusively used by us for (very few) tests. Purchased in early/mid-2020, condition as new.

Subject to prior sale.


Operating hours are <40 h.




Technical data (3D ROBOT VISION camera)

Model RB-500 RB-800 RB-1200

Imaging element B/W CMOS image sensor

Valid number of pixels


2048 (H) × 1536 (V) 2048 (H) × 2048 (V)

With binning 1024 (H) × 768 (V) 1024 (H) × 1024 (V)

Detection area (X, Y, Z) / mm 520 × 390 × 200 860 × 645 × 500 1260 × 1260 × 1000

Working distance to upper

detection area / mm 1500 1700 2000

Repeatability (±3 ) * ±0.1 mm ±0.2 mm ±0.4 mm

Light source LED (Blue, Green) LED (Blue)

Nominal values Supply voltage 24 V ±10%


Current consumption 6.0 A 4.5 A


Environmental resistance


Ambient temperature

in operation 0-45°C 32-113°F

Relative humidity

in operation 35 to 85% RL (no condensation)


Weight Approx. 12 kg Approx. 14 kg Approx. 15 kg



Specifications

ManufacturerKeyence
ModelRB-1200 / CV-X480D / CA-E200T
Year2020
ConditionUsed
