Keysight 16802A

Keysight 16802A

€6,150 (EUR)

Munich, Germany

orCall +49 (0)89 44354985

Description

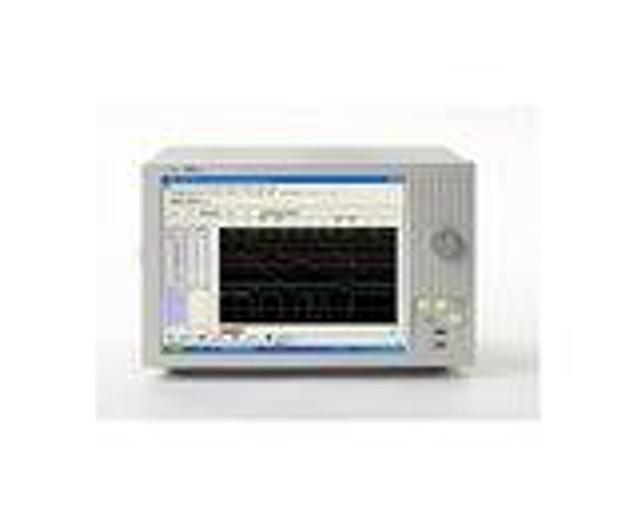

Keysight Technologies 16802A

Portable Logic Analyzer; 115/230V, 48 to 66Hz, 605W Max


Channels / Slots 68 CH

Max CH State Speed 450MHz

Product Type Standalone

Max CH Timing Speed 4GHz

Max Memory Depth 32MB


Logic Analyzer Configuration

15-inch (38.1 cm) color display with touch screen available


68-channel portable logic analyzer with up to 32 M acquisition memory depth, equivalent model with built-in pattern generator


Comprehensive single-ended signal support, threshold is adjustable in -5 V to 5 V (10 mV increments)


Timing Analysis (asynchronous sampling)

4 GHz (250 ps) timing zoom with 64 K memory


1.0 GHz / 500 MHz (half / full-channel) conventional timing with deep memory


500 MHz transitional timing


State Analysis (synchronous sampling)

State clock rates up to 450 MHz


Data rates: up to 500 Mb/s



Simultaneous eye diagrams on all channels identify problem signals quickly


Configuration Considerations

Selectable memory depths: 1 M, 4 M, 16 M, 32 M


Compatible with 40-pin logic analyzer probes. Probes are ordered separately.

Specifications

ManufacturerKeysight
Model16802A
ConditionUsed
