2011 Battenfeld HM 400 / 2250 /750S

2011 Battenfeld HM 400 / 2250 /750S

Contact us for price

Munich, Germany

orCall +49 (0)89 44354985

Description

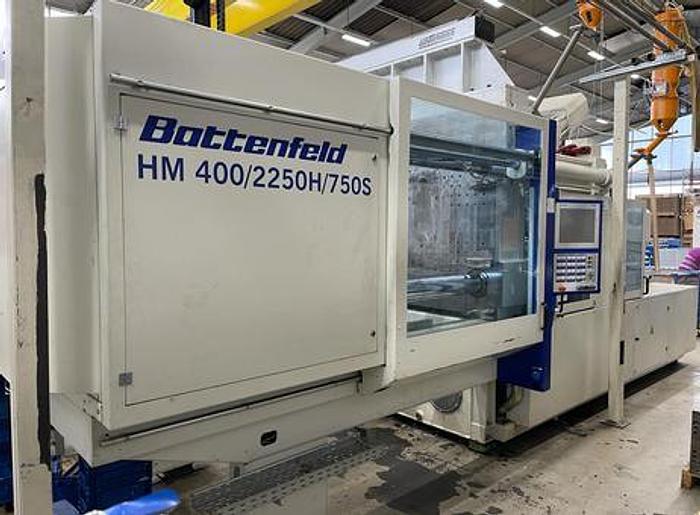

Battenfeld HM 400/2250/750S

Wittmann Robot W833

Year 2011



Year of production: 2011

Control: Unilog B6S

Robot: Yes


Injection unit: .../2250/750

Screw diameter: 65/45 mm

Specific injection pressure: 2070/2116 bar

Injection volume: 1078/358 cm

Injection weight: 981/325.8 g


Mold closing system: 400

Clamping force: 400 t

Mold platen dimensions: 1450 x 1350 mm

distance between tie bars: 900 x 710 mm

mold height: 1175 mm

Opening stroke: 600 mm

Max. distance between platens: 1775 mm

Pump motor power: 75 kW

Cylinder heating bands power: 29,4/12,1 kW

General data:

Date of collection: Immediately

dimensions (m) LxWxH: 7,0 x 2,4 x 3,3 m

Weight: 22100 kg


Instrumentation:

- 4 x hydraulic core

- 8 x cascaded control

- 1 x air valve

- 1 x extendable column for changing forms

- Batteries

- Robot

- Conveyor belt

- Restricted access zone

- cook-feeder


Specifications

ManufacturerBattenfeld
ModelHM 400 / 2250 /750S
Year2011
ConditionUsed
