2004 Kwang Dah Ent LTD KDF-6

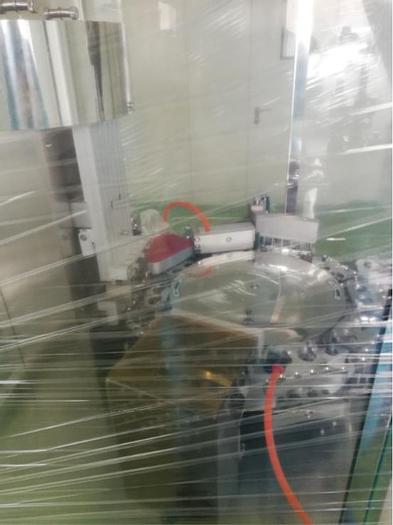

The KDF-6 is a fully automatic capsule filling machine with capsule orientation. The machine opens the

capsule, fills the capsule with powder, and then closes the capsule. This machine can be filled on capsules

from sizes #00 to #4, can feed different types of powder, and can also fill granules and pellets. Different

filling weights can be adjustable without changing parts.

Technical specifications:

Capacity

Max. 50 000 Pieces per hour

Power supply

AC 220/380V, 50/60Hz 3 Phase

Power consumption

Machine 1.1 kW

Suction 1.0 kW

Vacuum 1.5 kW

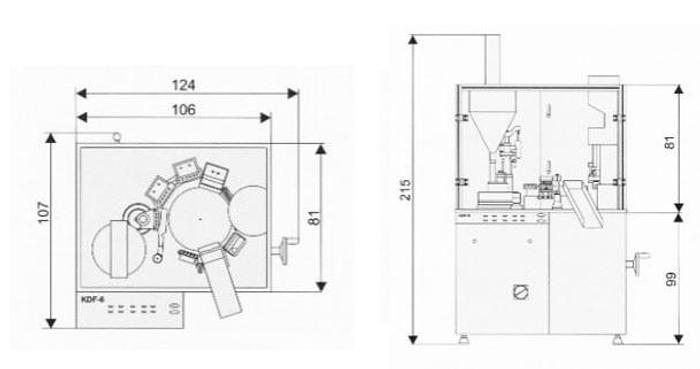

Machine size

107 x 124 x 215 cm

Packing size

182 x 136 x 211 cm

Net weight

Approximately 1000 kg

Gross weight

Approximately 1350 kg
