2021 Smipack HS 500 Flowpacker

2021 Smipack HS 500 Flowpacker

Contact us for price

Available quantity: 2

Stuttgart, Germany

orCall +49 89 38031660

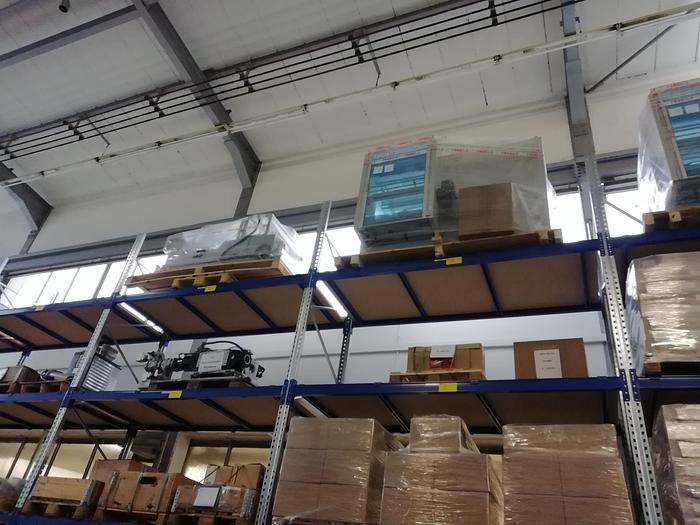

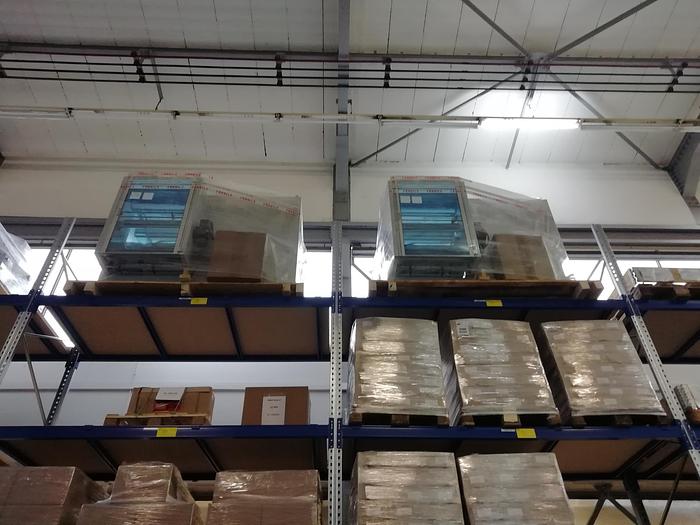

HS 500 film packaging machine +Flat film dispenser PX 750  - have been bought NEW this year and never used/unpacked. This Unit is NEW, see pictures still packed. Ready to use.

The HS 500 impresses with extremely high production rates of up to 6000 pieces per hour. This is ensured by two separate sealing processes. A fully automatic beam sealer takes care of the transverse sealing, while a lateral continuous sealer performs the longitudinal sealing. The result is a completely sealed bag. The HS 500 can handle extremely flat products. Machine description: ■ Full color 7" touch display ■ Average hourly output: up to 6000 pieces ■ Other versions available - please inquire! ■ Transport speed adjustable (11 - 45 m/min) ■ 50 programs can be stored - Longitudinal sealing system with clocked cycle - Transverse sealing with PTFE-coated sealing knife - Production output: up to 6,000 packs/hour (depending on size) - Sealing bar: 500 mm - Max. product height: 200 mm - Max. film width: 600 mm - Max. film roll diameter: 350 mm - For polyolefin and polyethylene films up to 30 my - Dimensions: 2,180 x 1,545 x 1,505-1,665 mm (LxWxH) - Weight: approx. 730 kg - Supply voltage: 380-415 V 3 PH-N-PE, 50/60 HZ - Connected load: max. 2,500 watts

No additional compressed air connection required; machine runs purely on electricity.- Pressure mark control - Welding bar for PE - Special side guides for masks - Press-on / hold-down for light product

2x in total available.

The “Full Electric” automatic packers with continuous sealing system from the HS series, designed according to the most advanced concepts of Industry 4.0, are characterized by a great quality/price ratio and modularity. In fact, all the models of this range can be supplied with or without shrink tunnel.

The HS series with continuous sealing and intermittent or box motion cycle can handle Polyolefin and Polyethylene, Polypropylene centerfolded or flat film with film folder PX, and is suited to meet outputs of up to 7200 packs/hour and 9000 packs/hour with customized solutions.


Bakery, confectionery, dairy products, fruit & vegetables, fish, meat, eggs, printing industry, stationery, computer industry, laundry, household products, toys, cosmetics, pharmaceutical, electric-electronic, plastic, wood, paper, detergents, mechanical industry, lubricants, cases & boxes, shelving, logistic, co-packers.

Find more here - https://www.ucymachines.com/


ModelHS 500 Flowpacker
