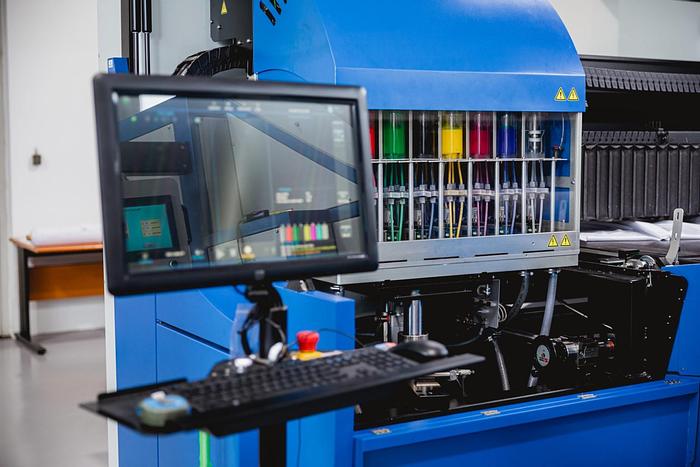

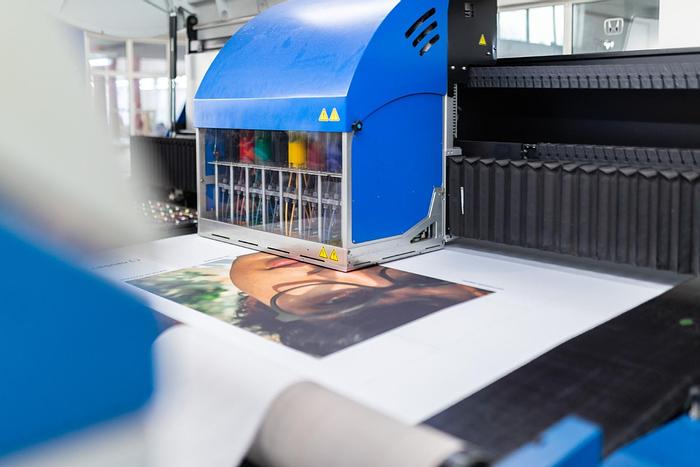

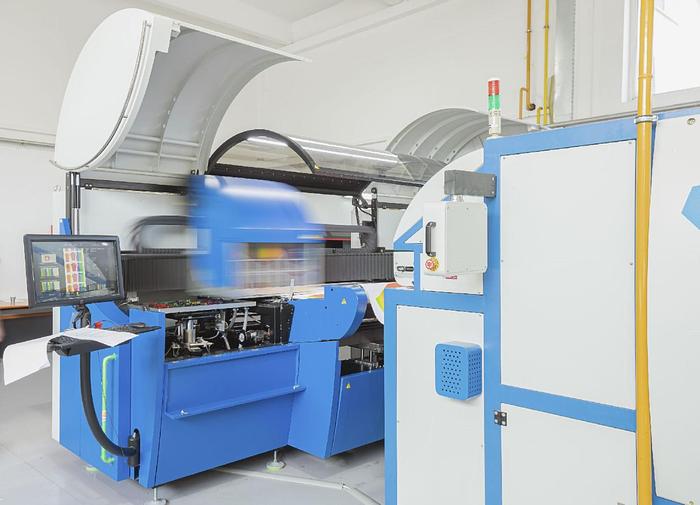

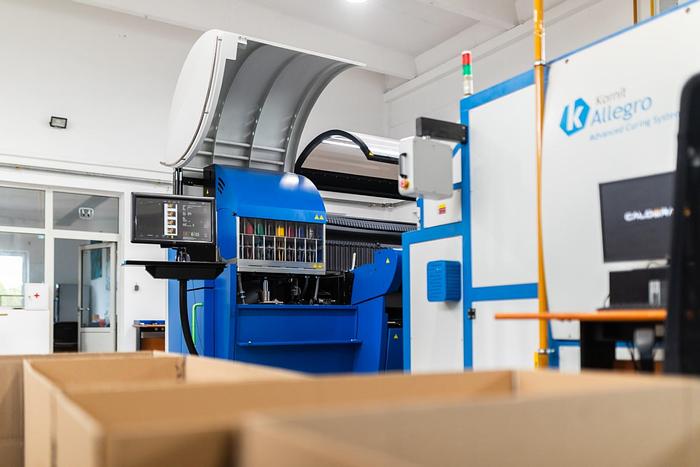

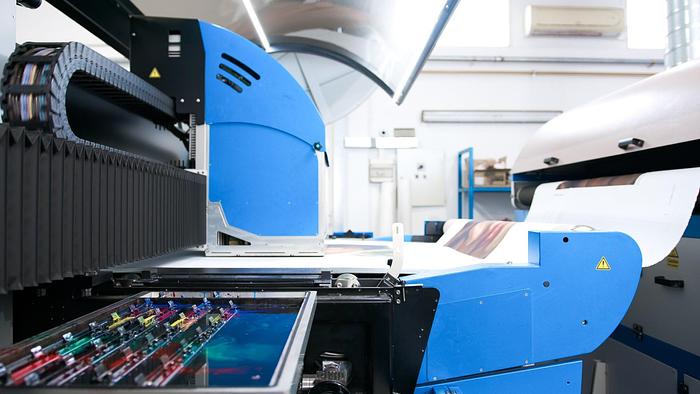

2018 Kornit Allegro

Manufacturer Kornit

Model Allegro

Production Year 2018

Print Heads Recirculating Spectra Polaris™, 64 heads, 7 colors+ 1 FOF (Fixation on the Fly)

Ink Type CMYK + Red + Green + Gray

Printing Area Max Roll Width 180 cm / 70.8 in / Max Roll Outer Diameter 40 cm / 15.74 in / Max Roll Weight 50 kg / 110.2 lb

Weight 3500kg / 7716.17lb

Power Requirements 110/220V, 60/50 Hz, 40A, 3Ph+N+GND 25kW

Media transportation High precision adhesive belt conveyor system

Fabric feeding system Axial unwinding system with adjustable fabric width and tension mechanisms

Max media thickness 15 mm / 0.59 in

Max roll width 180 cm / 70.8 in

Max roll outer diameter 40 cm / 15.74 in

Max roll weight 50 kg / 110.2 lb

Compressed air 6-8 bar/ ≤ 0.4 m3/min

Dryer type Allegro Triple Pass Air-Blow Dryer (Gas)

Dimensions of entire solution (WxDxH) 460 x 699 x 214 cm / 181 x 275 x 84 in

Dimensions of dryer (WxDxH) 283 x 226 x 192 cm / 111.4 x 89 x 75.6 in

Power supply 110/220V, 60/50 Hz, 40A, 3Ph+N+GND 25kW

Printing resolution 400X600DPI , 600X600DPI, 600X800DPI

Printing Substrates Fabric types: Most common woven + knitted / Fiber types: All – Natural, Synthetics, Blends

Dimensions 460 x 699 x 214 cm / 181 x 275 x 84 in
