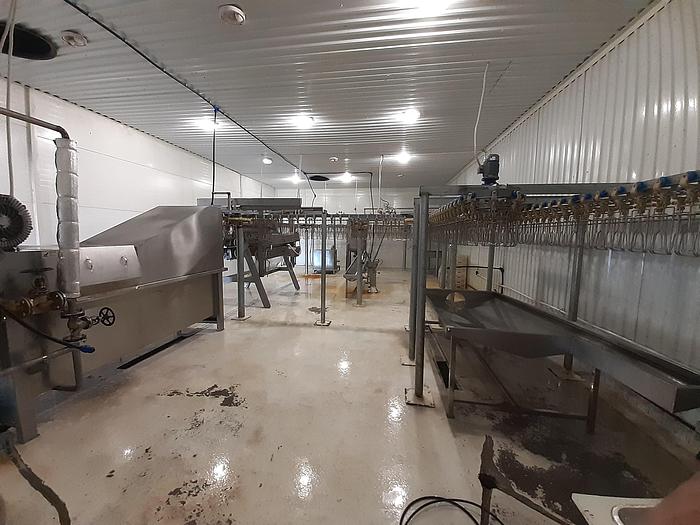

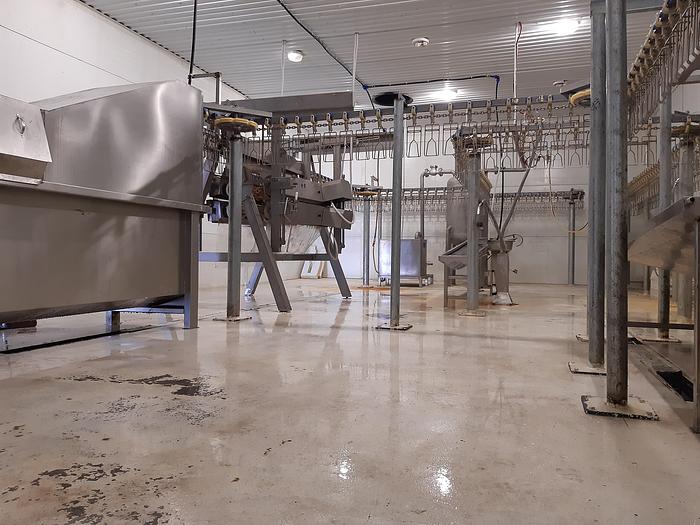

2018 Gunther GmbH poultry slaughter line with chilling system

poultry slaughter line with chilling system. Capability of processing: 500 - 700 chickens/hour. This line was used only 3 - 4 months and all systems are like new. Everything works excellent.

I: Product details

1、The capability of processing: 500 - 700 chickens/hour.

2、Board distance transfer line is 152.4mm, the normal speed of transfer line is 1.27m/min.

3、Bloodletting time :3-5 mins .

4、The way of scalding: hang-type scalding . Temperature of scalding :58°C~61°C(For reference, could be adjusted according to actual demand.)

Time of scalding :60-90s.

5、The way of plucking :vertical A-type defeathering .

ITEM

DEC

QTY

1

A shape plucker machine

2.1m×2.2m×2.25m

SET

1

2

Air blowing scalder machine

3.2m×1.2m×1.9m

SET

1

3

water stunner machine

1m×0.4m×1.5m

SET

1

4

Automatic shackle unloader

1.7m×0.4m×0.75m

SET

2

5

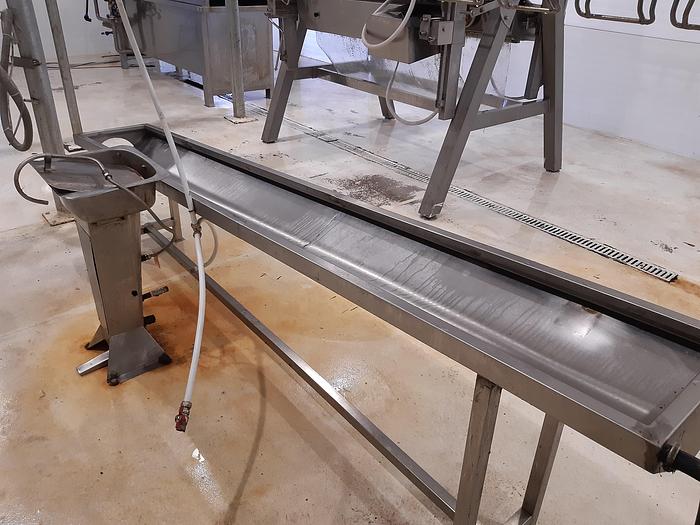

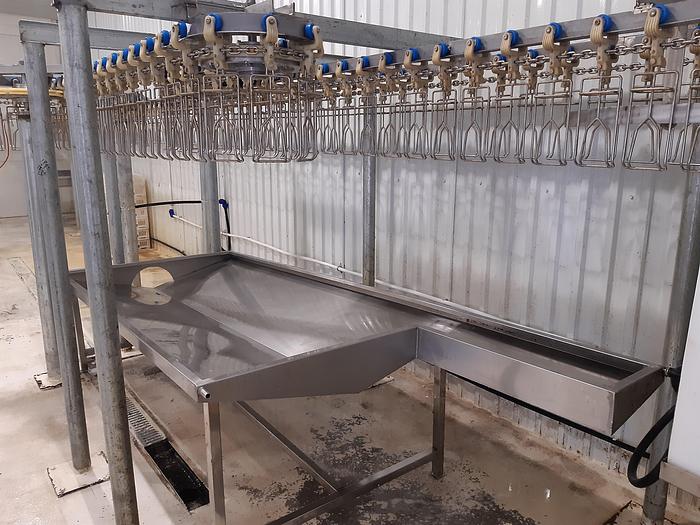

Bleed receiver trough

3.2m×1.2m×0.25m

SET

1

6

Visceral through

3m×0.4m×0.2m

SET

1

7

Electrical control box

1m×1m×0.3m

SET

3

8

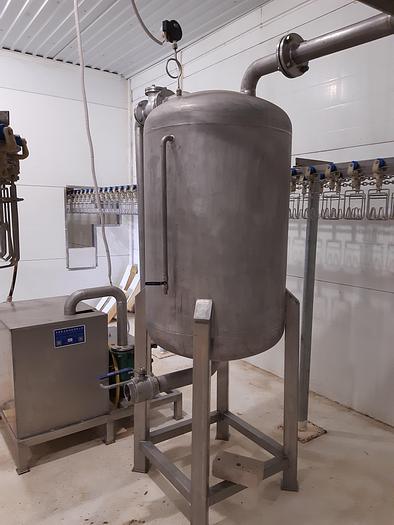

steam bolier

1.5m×1m×2.2m

SET

1

9

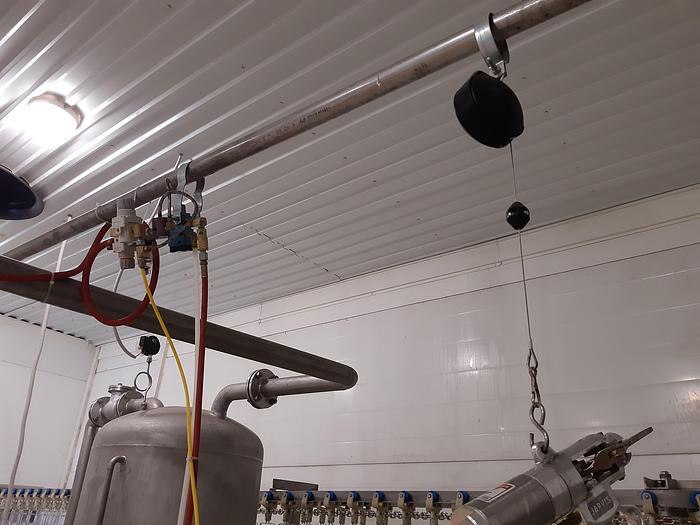

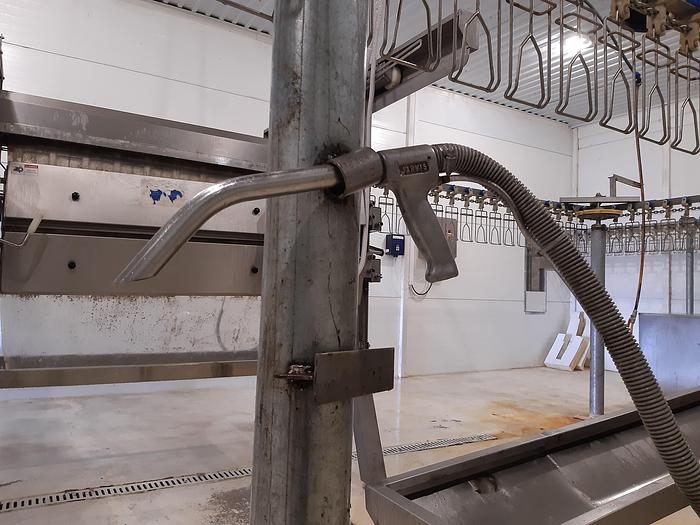

lung suction gun and vent cutting pistol

2.2m×1m×2.35m

SET

1

10

Birds receive platform

1.5m×1m×0.9m

SET

1

11

Automatic head machine

1m×0.6m×1m

SET

1

12

Desk type portioning machine

0.5m×0.4m×0.5m

SET

1

13

Main drive and tension device

1.4m×0.8m×0.45m

SET

3

14

Cycloid reducer

1m×1.2m×0.4m

SET

3

15

Conveyor line chain

1.5m×1m×1m

M

271

16

Pylons

1.5m×1.2m×1.2m

PCS

1780

17

Driving wheel and driving wheel

1.2m×1m×0.8m

PCS

29

18

Straight rail, curved rail and cross arm

2m×0.8m×0.6m

PCS

1

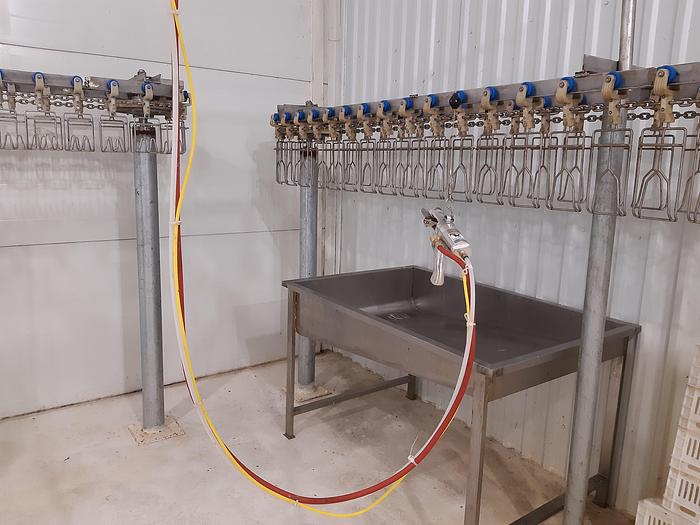

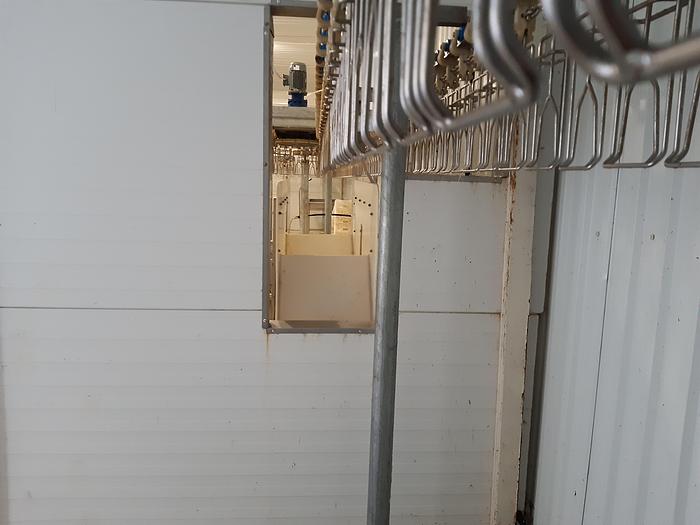

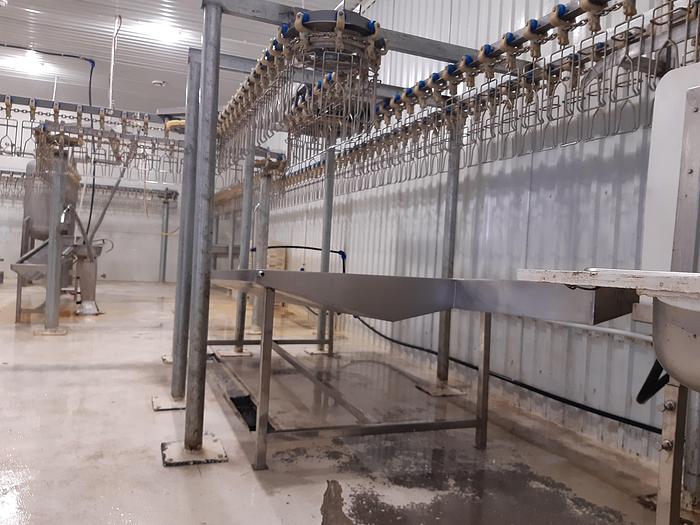

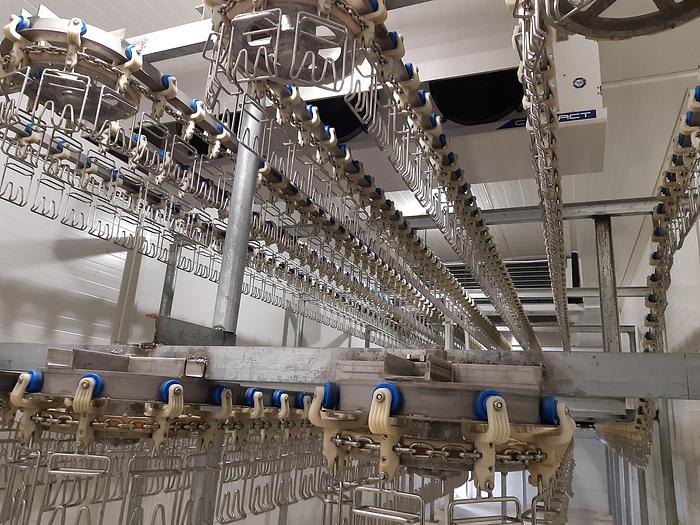

01、Slaughter and Eviscerate transfer line

Stainless steel T- type orbit 50×50×4mm

Stainless steel chainφ8mm

Nylon hang wheel stand and nylon roller

Stainless steel slaughter hangφ7mm

Distance of hang 152.4mm

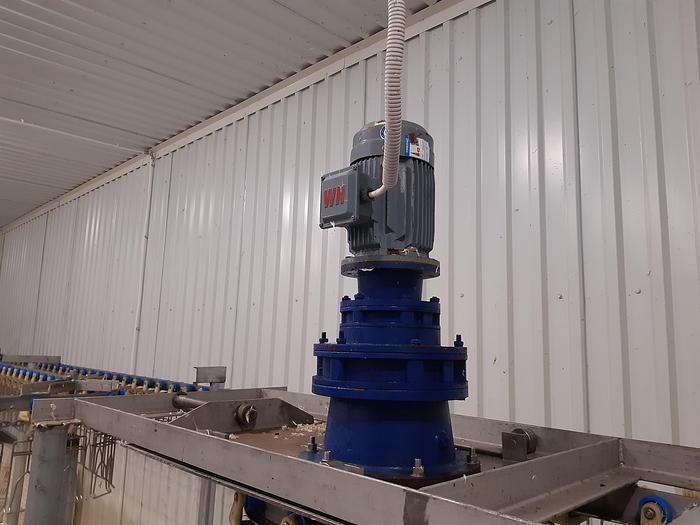

02、Main drive and tension device(1400×800mm)

AC driver

Stainless steel frame and tension plate

Galvanization elastic pole

Driving wheel : φ485mm

Power :1.5kw

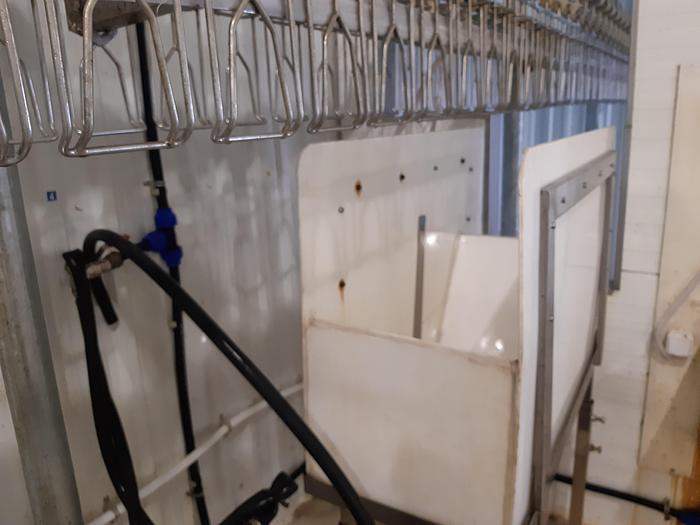

03、Water stunner machine(1000×400×1300mm)

Plastic electric groove

Stainless steel frame δ:2mm,

Adjustable voltage.

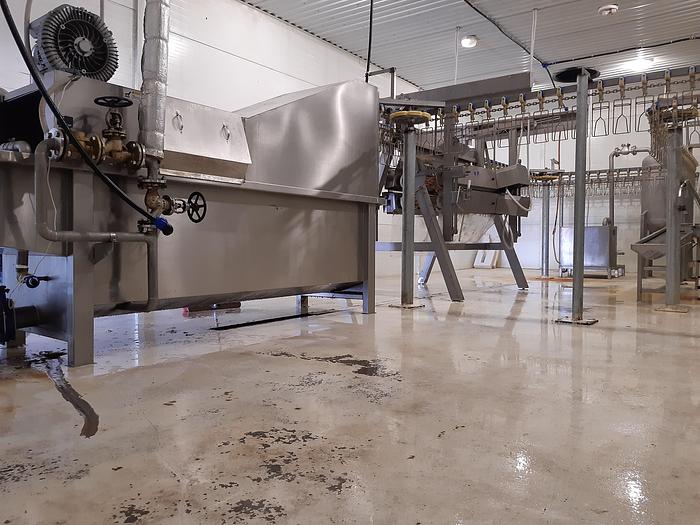

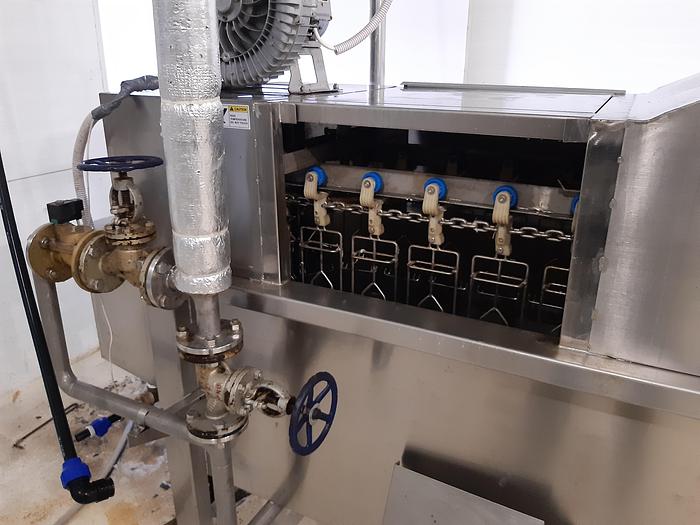

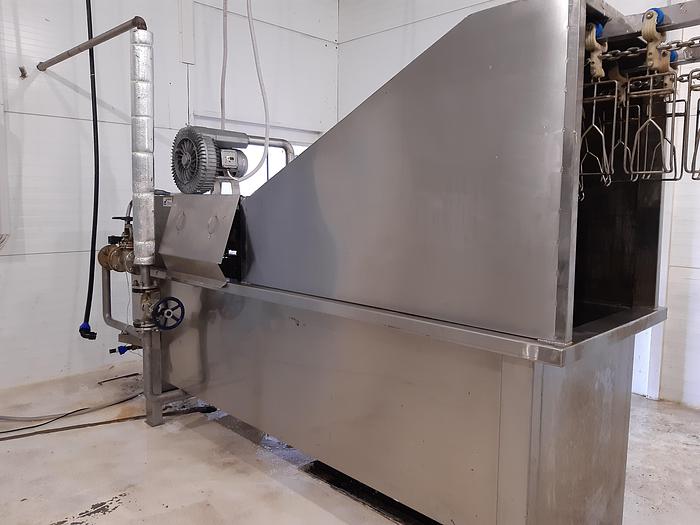

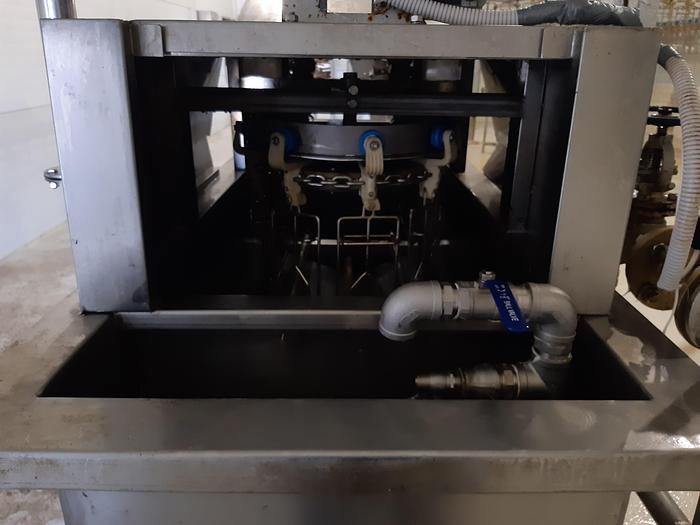

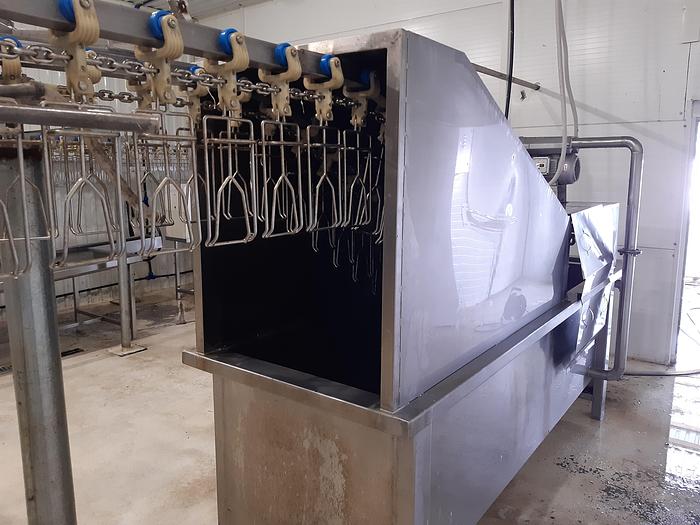

04、Air-blowing scalder machine(3000×850×1900mm)

Air-blower mechanical stirring system 1 set

Power 3 kw

Stainless steel box δ:2.5mm

Stainless steel cover δ:1.2mm

Stainless steel frame δ:2.5mm

Stainless steel wind pipe and steam pipeφ50×1.5mm

Water level and temperature by Automatic control

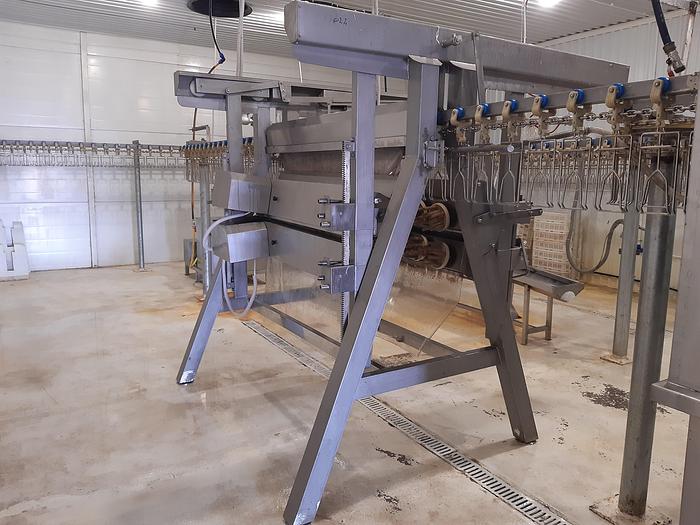

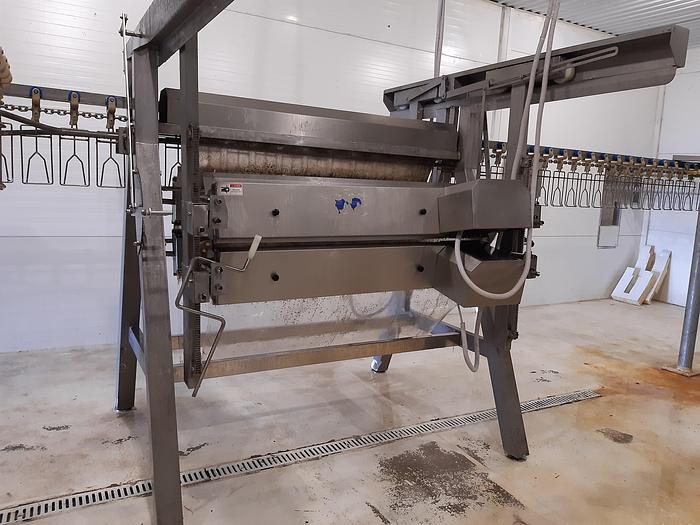

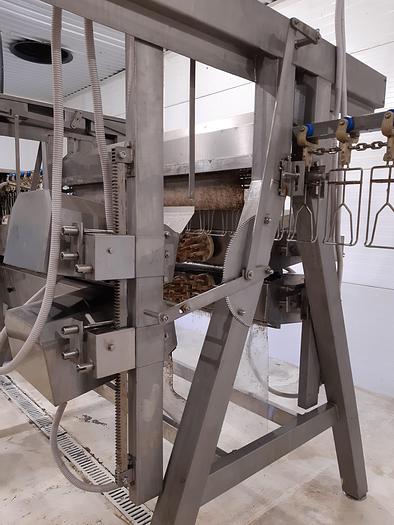

05、A-shape plucker machine(2100×2200×2250mm)

Stainless steel A-type frame 100×100×3mm

Four correspondent stainless steel body δ:2mm

Each box can be adjusted by actual demand

6pcs of nylon defeather plate per box

10pcs defeather bar per nylon defeather plate

4set independent belt drive ,1.1kw/set

Stainless steel door δ:1.2mm

Feathering damper

Stainless steel spray pipe

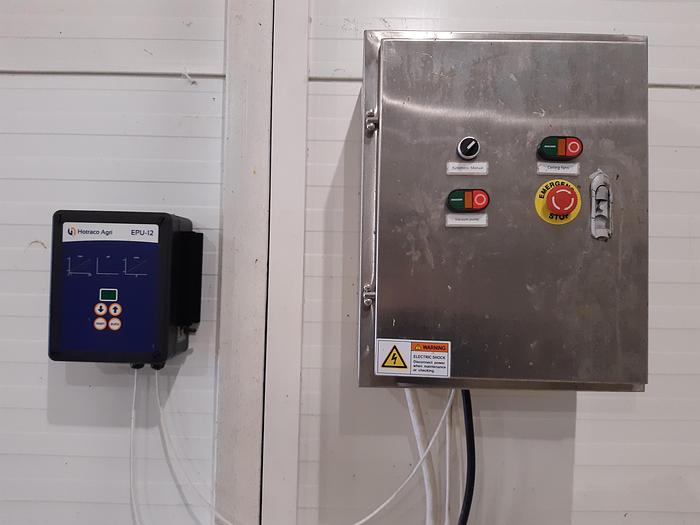

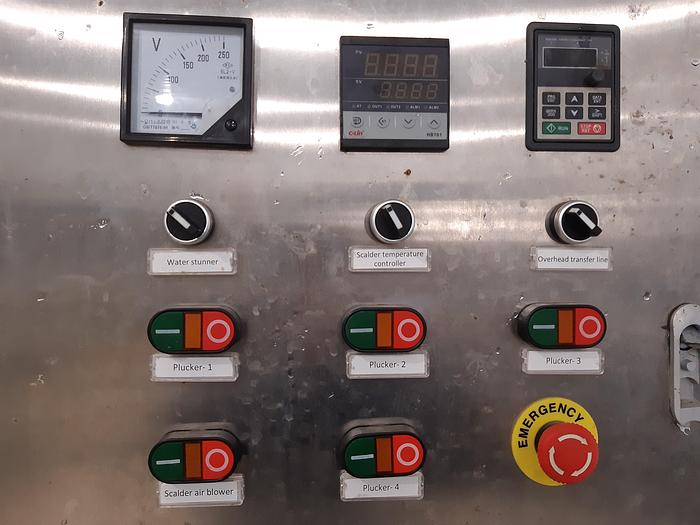

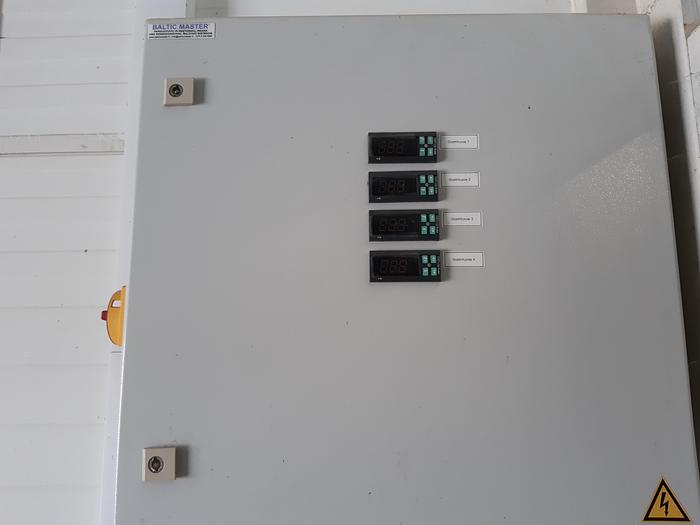

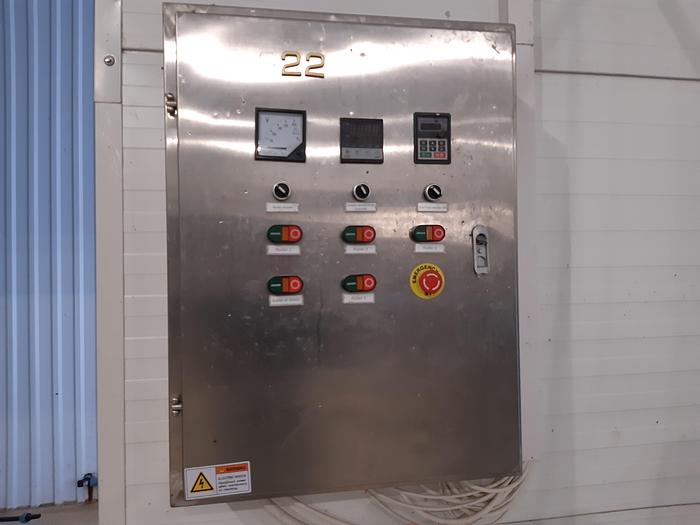

06、Electrical control cabinet

Stainless steel body δ:1.2mm

Electrical equipment 1set

Emergency stop and overload protection device

To control Main drive and tension device and

Air-blower scalder machine and

Vertical A-type plucking machine

07、Automatic shackle unloader(1000×400×700mm)

Stainless steel pipe :38×38mm

Stainless steel guide bar and damper barφ16mm

Can be adjusted by the actual requirement

08、Steering wheel(φ388mm、With curved rails)

Inner Wheel for aluminum parts

Outer rim high strength nylon gear ring,

Stainless steel orbit:50×50×4mm

09、Single control box

Stainless steel body δ:1.2mm

Electrical equipment 1set . Emergency stop and overload protection device

10、Bird received platform(2000×1000×900mm)

Stainless steel platform δ:1.2mm

Stainless steel frame

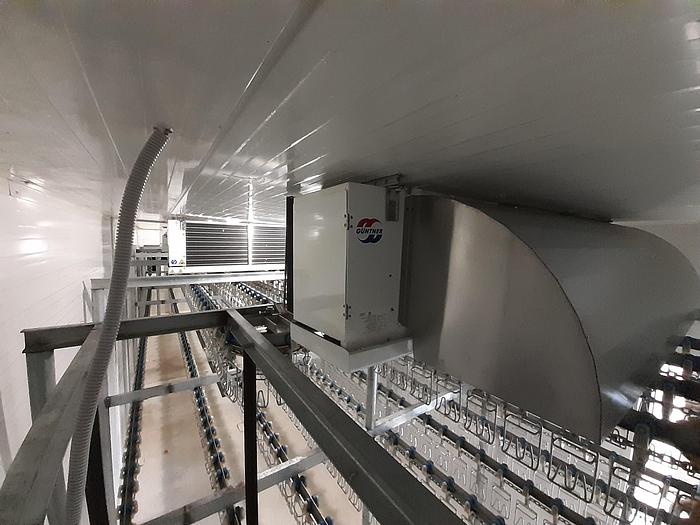

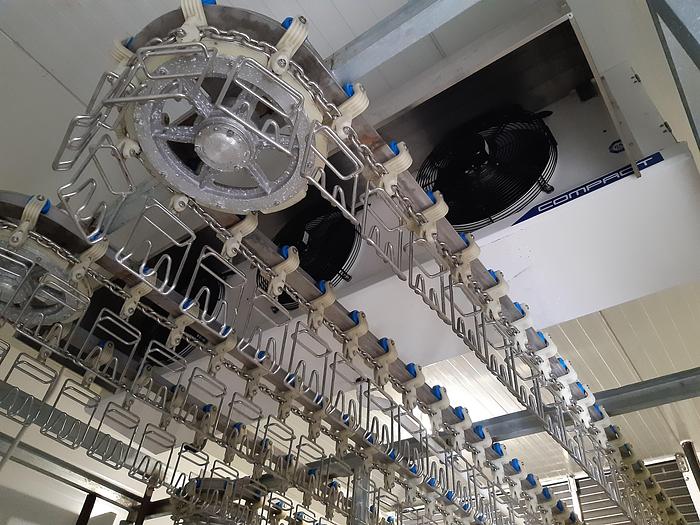

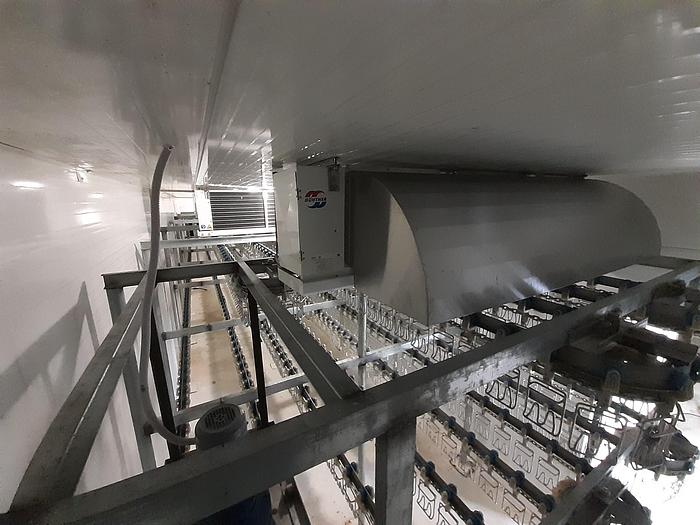

Cooling system

4 pcs GUNTNER UNIT COOLER

LOW TEMP,FPI SPACING 7MM,3.6 FPI,EVP TEMP, -25°C (R404A/R507)

MODEL

CAPACITY

AT TD8K

BTU/HR AT

TDK8K

NO.OF

400MM

AIR

QUANTITY

AIR

THROW

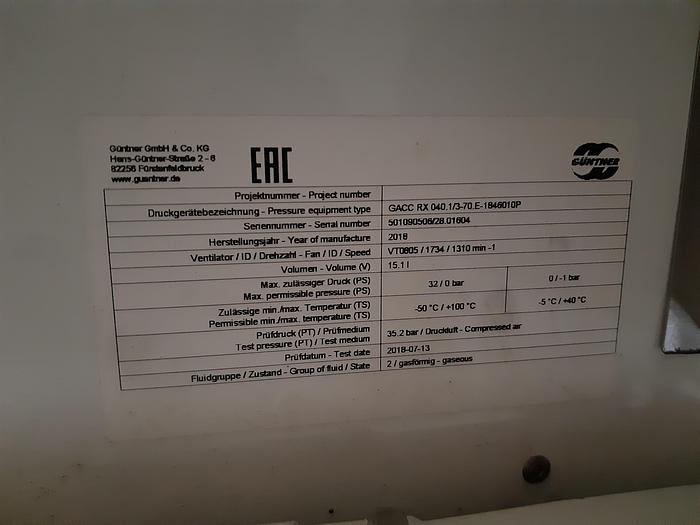

GACC RX040.1/3-70.E 1846010P

10.60

36,177.80

3

9,660

15.00
