2021 POLIMET B2

No longer available

2021 POLIMET B2

Dartford, United Kingdom

Description

Like New was a displayed machine


The Screen Printing Set includes

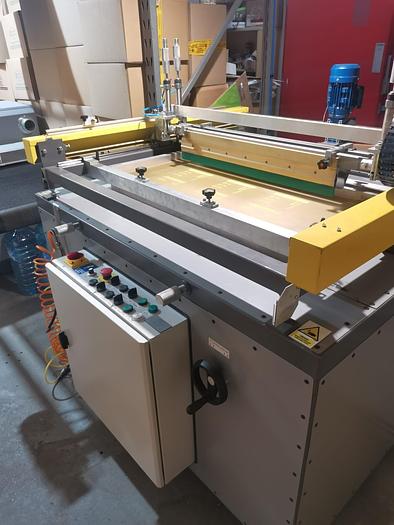

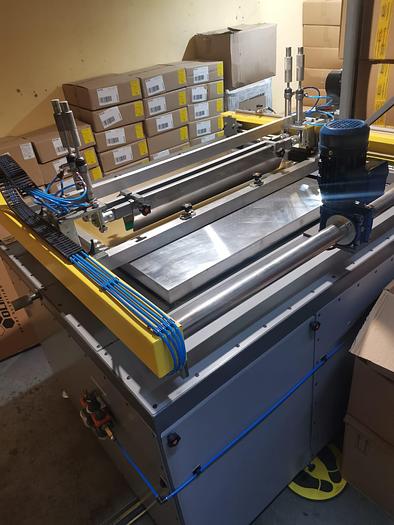

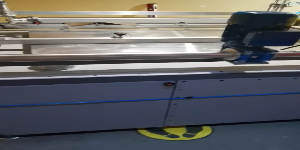

Screen Printing Machine

UV 600 Tunnel Dryer

4,5l black ink (made in Italy)

4l solvent-based, LQ washer for screen

printing inks, (made in Italy)

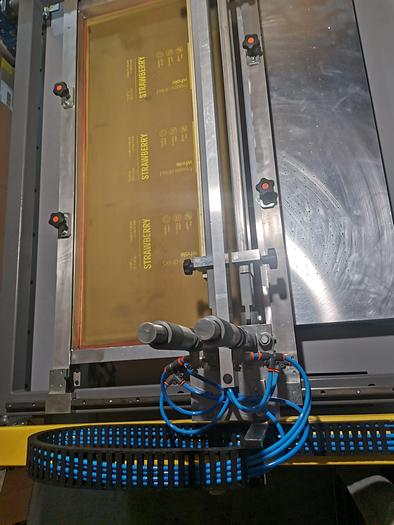

5 aluminium frames with mesh screen

(plus 1 additional aluminium frame)

1000x500mm (outer),

930x430mm (inner)

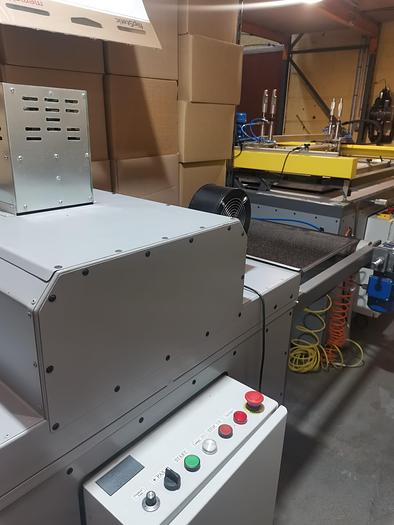

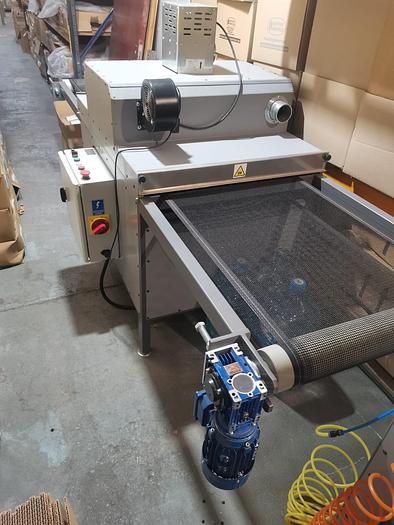

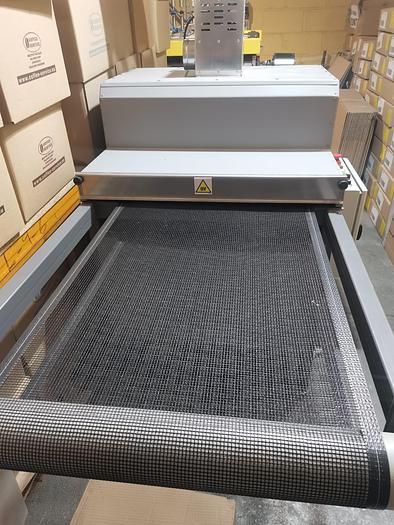

UV 600 Tunnel Dryer

belt width 600mm

radiator power 100W/cm

teflon coated fibreglass belt

stepless speed control of the belt

power supply 3 phase

power consumption 8.5 kW


We are delighted to offer you this reliable and precise, top-quality screen-printing

machine with tunnel dryer, virtually unused, no longer needed as our business plans

have changed unexpectedly.


The machine was built for us by a very innovative and respected company based in

Poland. The owner of the company is the author of two patented inventions, and

another one is waiting to be accepted.


The machine is designed for flat printing on various types of substrates (paper,

cardboard, rubber, foil, glass, plywood, plastic boards, leather). We aimed to

use it mainly for printing on zip lock packaging (various types of pouches,

various materials).


The screen-printing machine is dedicated to printing on flat surfaces such as paper,

cardboard, rubber, foil, glass, plywood, plastic boards, leather, etc. The screen printer

is controlled by a digital controller.

The UV tunnel dryer is designed for the quick hardening of paints and varnishes

with ultraviolet waves. The tunnel can be also used as an air-dryer, without using the

ultraviolet waves.

In the automatic cycle, the printing machine lowers the frame with the mesh screen,

lowers the rubber squeegee, moves the squeegee pressing ink through the screen,

lifts the squeegee, lifts the frame with the screen, lowers the drawing squeegee, and

moves the squeegee back to the start point distributing the ink evenly on the screen

and raises the drawing squeegee. Each cycle of the machine is started with a foot

switch.


700mm x 500mm printing area

(any size can be printed within the area)

1050mm x 900mm max screen frame area

700mm x 500mm vacuum area

900mm x 800mm tabletop


suction valve synchronized with the screen frame

x-y and angular micro-settings of the tabletop


aluminum tabletop


frame drive with screen, squeegee and valve drive


– pneumatic


beam with squeegee drive – mechanical

start/end frame sensors

on the squeegee movement

stepless adjustment of the pressure force

and the angle of the squeegee,

printing speed and the speed of lifting

and lowering the frame with the screen


PAPER AND CARDBOARD PRINTING

RUBBER PRINTING

GLASS PRINTING

FOIL PRINTING

LEATHER PRINTING

PVC PRINTING

PRINTING

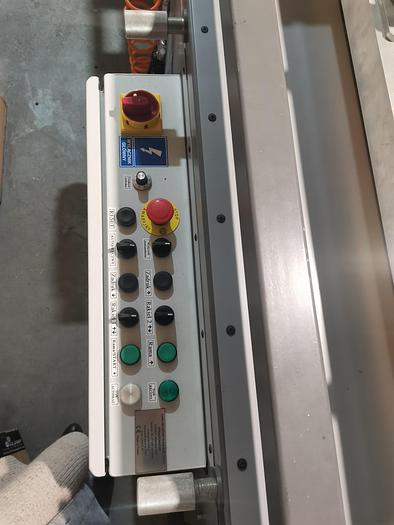

digital control

regulated tabletop area

left-right, up-down up to 15mm

automatic or manual operation

emergency switch

power supply 230V AC, 6-8 bar

CE certification


Specifications

ManufacturerPOLIMET
ModelB2
Year2021
ConditionNew
