Description

yücel makina


Technical Details:

Construction:                                         4 column, 2 pistons

Pressing Force:                                      300 - 1600 ton (Adjustable)

Working Pressure:                                250 bar

Motor Power:                                       45 + 55 kW

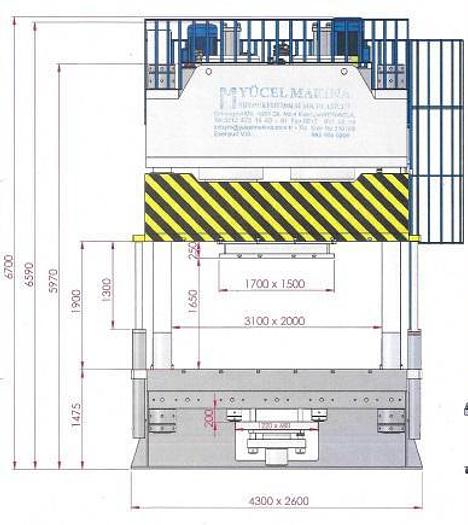

Net Usable Area:                                  3100 x 2000 mm

Ram Movement (Stroke):                    1300 mm

Daylight:                                               1900 mm

Descent Speed:                                    20 - 200 mm/s (3 levels adjustable)

Pressing Speed:                                    1-8 mm/s (Adjustable)

Ascent Speed:                                      1- 200 mm/s (Adjustable)

Lower Extractor Force:                       10-100 ton (Adjustable)

Lower Extractor Stroke:                     200 mm

Lower Extractor Plate:                        1250 x 700 mm

Hydraulic units are Kawasaki - Rexroth - Parker

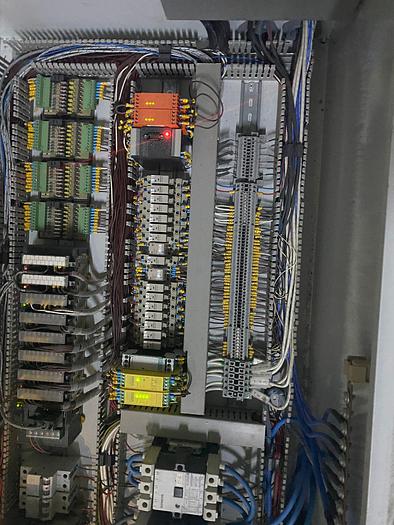

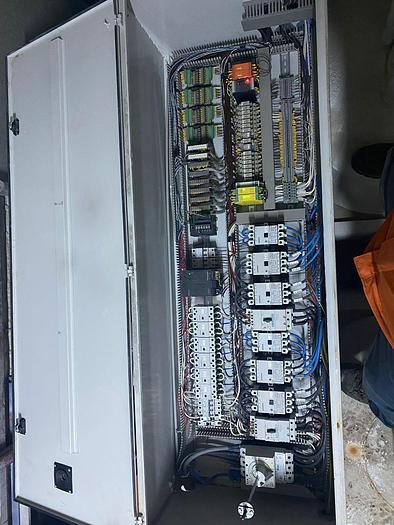

Electric units are Siemens- Moeller - Omron


Light Curtains on front



We can modify or reprogram press in request.



Find more here - https://www.ucymachines.com/

Specifications

Manufactureryücel makina
ConditionUsed
