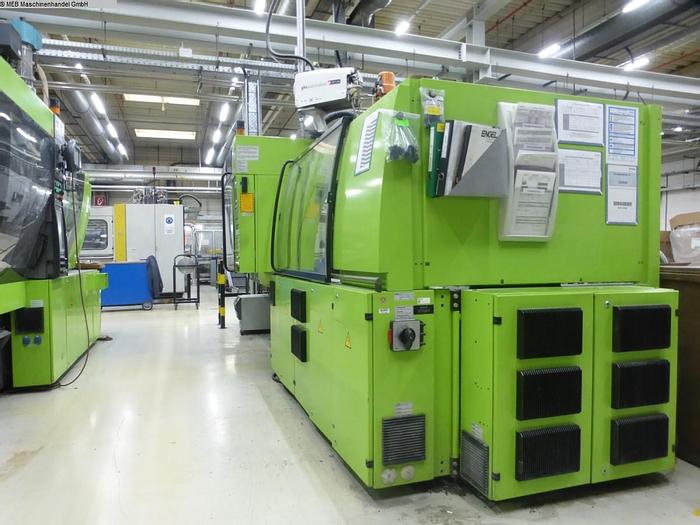

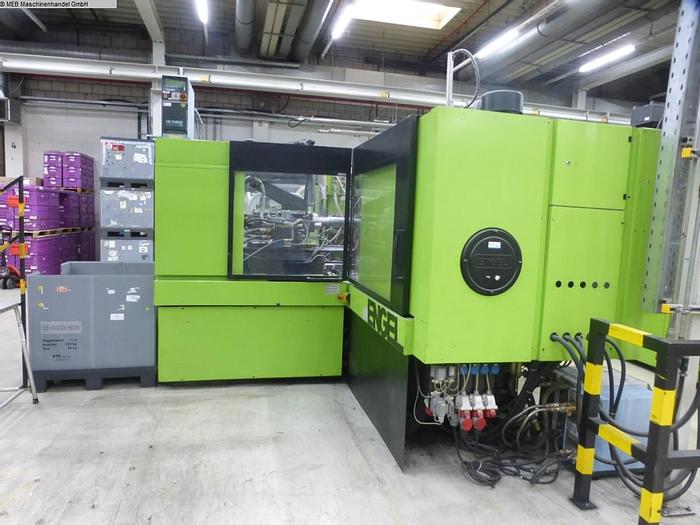

2006 ENGEL VC 80H/80L / 130 Combi

Injection molding machines (plastic)

Specification: horizontal injection molding machine,

Factory No.: 158307

12EN20

Converted from VC 80H/80L/130 Combi

to VC 500H/200L/130 Combi

Injection unit 1 plastic:

- Screw diameter: 30 mm

- Injection volume: 106 cm³

- Injection pressure max.: 846 bar

Injection unit 2 rubber

- Screw diameter: 25 mm

- Injection volume: 43 cm³

- Injection pressure max.: 1,290 bar

Clamping unit:

- Clamping force max.: 1,300 kN

- Clamping platens: 850 x 750 mm

- distance between platens min.: 350 mm

- platen distance max.: 900 mm

- Core pull/extension:

- Core pull hydraulic

- Number of core pulls: 0 FAP, 2 BAP

- 2x sprue picker mounted

- Operating hours: 62548 hours

- Connected load: 151 kW

- Rated current: 234 A

Technical details:

Value Size Unit

Clamping force 1.300 kN

Injection volume 106 / 43 cm³

Screw diameter 30 / 25 mm

platen size 850 x 750 mm

distance between platens - max. 900 mm
