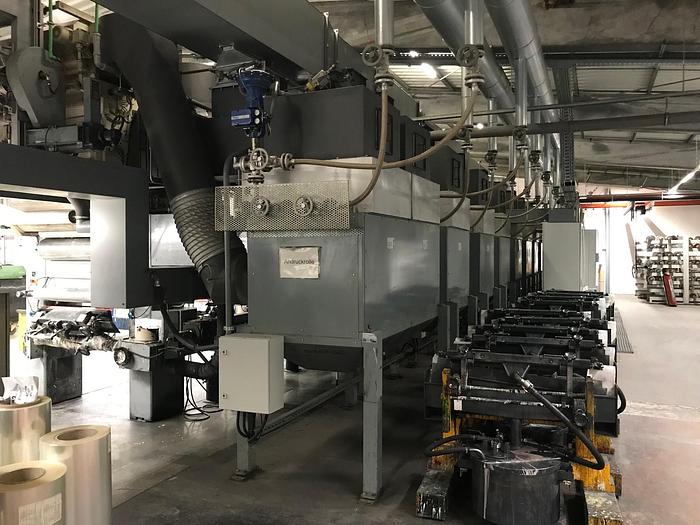

1997 Schiavi Roto Cadet S

Gravure printing machine

Schiavi

Roto Cadet S

Year of manufacture 1997

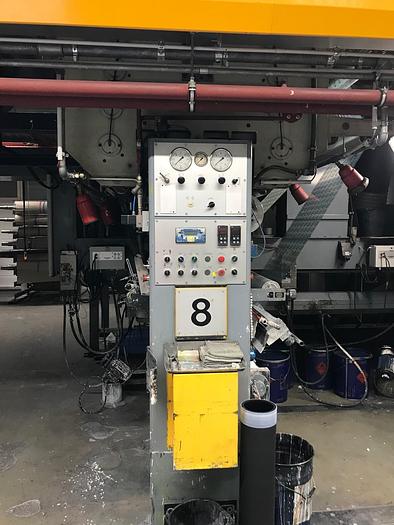

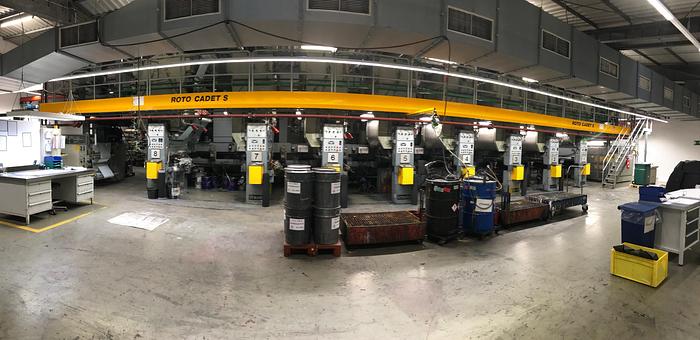

8 printing units

The machine is designed for operation with axle cylinders,

which are driven via a king shaft. The impression rollers

consist of fixed carrier rollers and rubber

sleeves, which can be changed quickly and easily in the machine.

in the machine. The ink reservoirs are integrated into the 16 printing unit

integrated into the 16 printing unit carriages, which enables fast

possible. Thanks to the double number of printing unit carriages

the next job can be prepared while the press is

running press. The machine can be used to produce approx. 1500

cylinders in various circumferences between 400 mm and 960 mm can be

mm can be taken over.

Speed m/min 250

Average production speed

Production speed m/min 230

Average production speed m/h 13800

max. material width mm 775

max. printing or working width mm 765

-dto.- with corona pretreatment mm 750

min. printing or working width mm 380

max. core width with

aluminum foil mm -

min. cylinder circumferences mm 400

max. cylinder circumferences mm 950

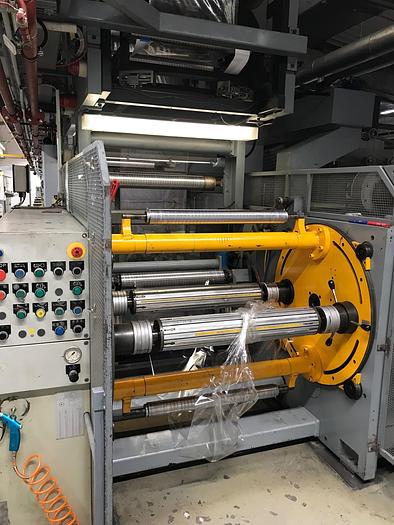

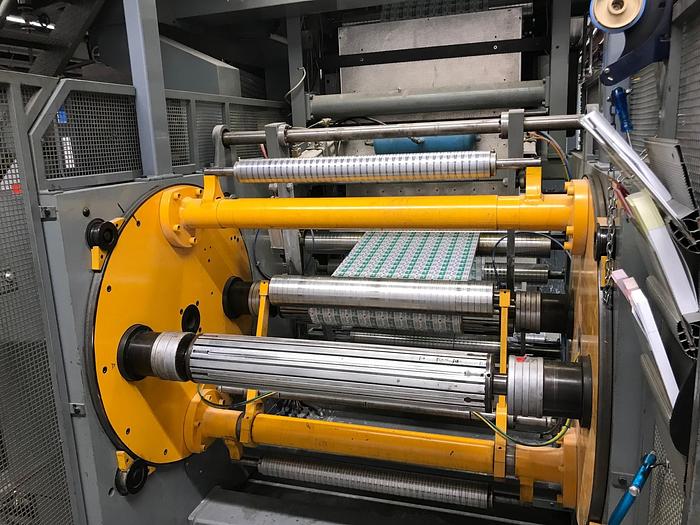

max. outer roll Ø unwinding mm 820

max. roll weight unwinding kg 1'000

core inner diameter

Unwinding mm 152

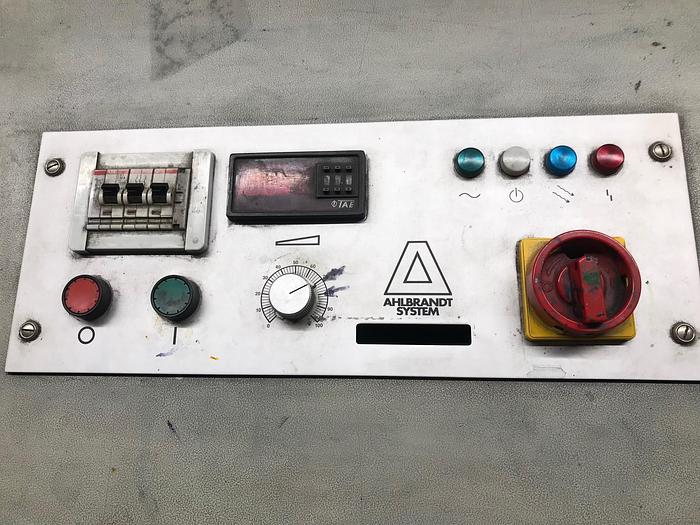

Corona - Pretreatment station Ahlbrandt Systems

Number of inking units pcs. 8

Back pressure no

Viscosity control yes

Material grades used Designation

PET, PETmet., OPP, OPPmet., OPA, cellophane

(XS, MF )

Material thicknesses used my 10 - 100
