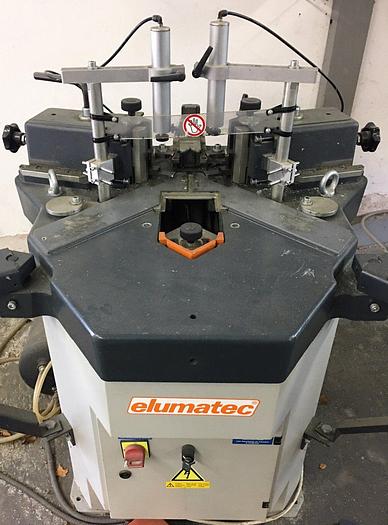

2013 elumatec EP 124

2013 elumatec EP 124

Contact us for price

Herzlake, Germany

orCall +49 (0)89 44354985

Description

CORNER BENDING PRESS


Pressing of large dimensioned profiles with highest quality requirements

Easy adjustment and operation of the machine, short changeover times due to simple knife changing system

High pressing force reserve by means of large-volume air actuator (maintenance-free)

With lowerable, hydropneumatically controlled abutment

Special design of the abutment head allows pressing of frames with an inside dimension of 150 mm or more (clear dimension)

Pressing depth separately adjustable for each tool slide

Adjustable press knives for compensation of the profile chamber offset

(from -5 to 15 mm as standard, 15 to 35 mm optional) available

Standard with support arms and press knives

2-hand operation

Support table for pre-assembly or storage

Abutment

Special press knives

pressing height 140 mm

Pressing force 70 kN (7 t)

Pneumatic drive

Electrical connection 230 V, 1~, 50/60 Hz

Compressed air connection 7 bar

Air consumption per working cycle 35 l

Length 1,100 mm, depth 950 mm, height 1,230 mm, weight 545 kg


Find more here - https://www.ucymachines.com/


Specifications

Manufacturerelumatec
ModelEP 124
Year2013
ConditionUsed
