2015 Karl Roll K05277

Control: Siemens S7-300

Connected load: 123 KW / 212 A

Mains voltage: 400 V

Length with roller conveyor: approx. 18 m

width: approx. 5 m

height: approx. 4 m

The washing plant is disassembled

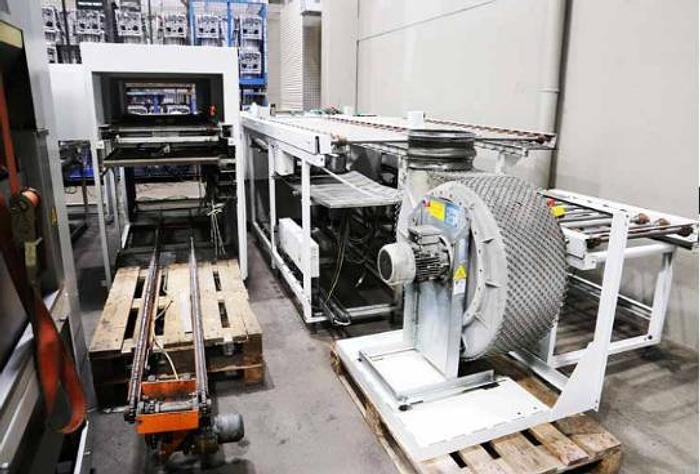

Karl Roll cleaning plant

Type of machine: Cleaning plant for cleaning and degreasing of metal parts

Manufacturer: Karl Roll GmbH & Co. KG

Type: RUT 067-048-030-04

Machine no.: K05277

Year of manufacture: 2015

batch size:

max. batch weight 120 kg

Plant components:

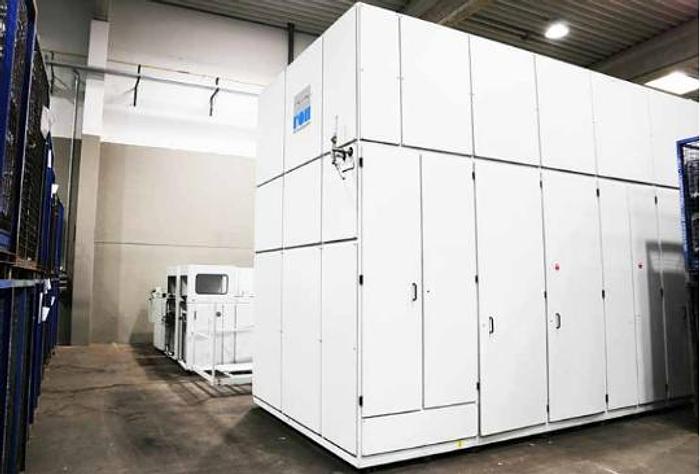

Machine housing with maintenance doors

Bottom trough as leak-proof collecting trough according to DIN 54152 leak-tested

Goods transport with lifting and moving device

Drum device for turning or swiveling of the goods baskets

Cleaning and rinsing tank

Ultrasonic device to support the cleaning effect

Oil separator

Transfer and emptying device

Plant exhaust system

Water inlet

Weekly timer for automatic control of heating and exhaust system

Vacuum drying device

Machine control

Control cabinet

Electrical connection: Operating voltage: 400 V / 50 Hz

Connected load: 123 kW / 212 A

Equipment:

- Loading and unloading equipment consisting of:

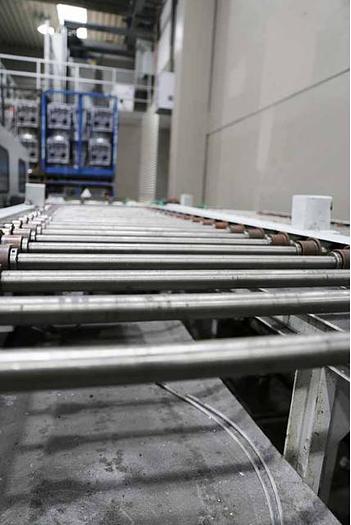

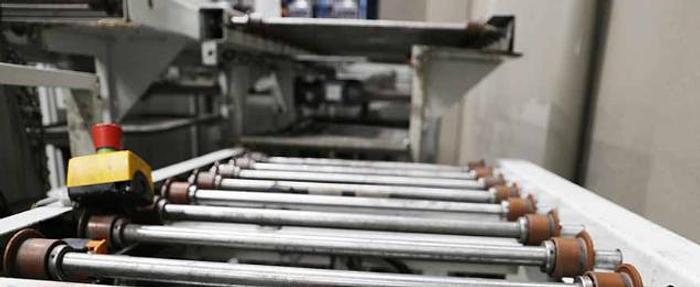

- Feed roller conveyor with buffer area

- basket transport

- discharge roller conveyor with buffer station
