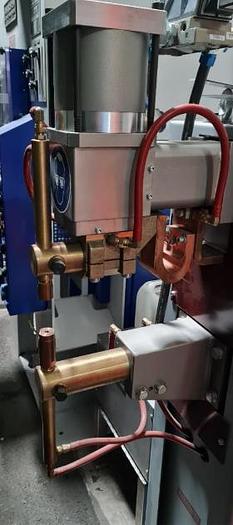

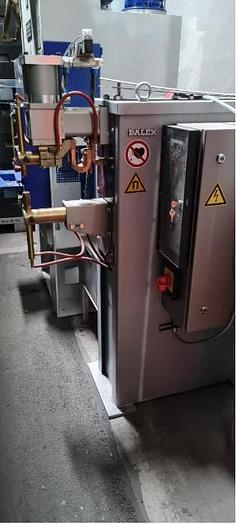

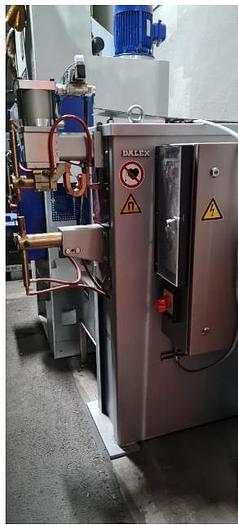

2018 Dalex PL 63

Technical data:

Type PL 63

Year of manufacture 2018

Nominal power 63 kVA

Welding power 182 kVA

Cooling water flow 4 l/min

Weight 335kg

Dimensions

Front panel (W x H) 182.0 mm x 132.5 mm

Installation dimensions (W x H x D) 160.0 mm x 110.5 mm x 60.0 mm

Supply voltage 400V 50Hz

Operating voltage 27V AC -15%/+10%

Standby 3V A

Switching outputs +24V DC 7 each 150mA (X2/5-7)

Permissible

Ambient temperature max. 45 °C

Overtemperature protection via thermal switch 63°C opening

+24V (X2/1+2) To supply the signals of the control stage. External load possible.

The total load of the +24V DC is 200mA. It is to be paid attention

that this value is also the sum of external current consumption and

load of the switching outputs (FK, VZ, READY) is not exceeded.

Command inputs +24V DC / < 5mA

Solenoid valve and

Pre-stroke outputs +24V DC / 300mA each

Firing pulse voltage +24V DC / max. 200mA

Ignition pulses 5kHz / 30μs

Accessories ASS-MPS 10 26349/n

Connector set

MPS VK48 26332/n

Connecting cable for connection to power unit LE 100/200

MPS VK49 26342/n

Connecting cable for connection to power unit LE10/LE21

MPS VK50 26357/n

Connecting cable for connector X1 (with one open cable end for own

assignment)

MPS Vk51 26529/n

Connecting cable for connector X2 (with one open cable end for own

own assignment)

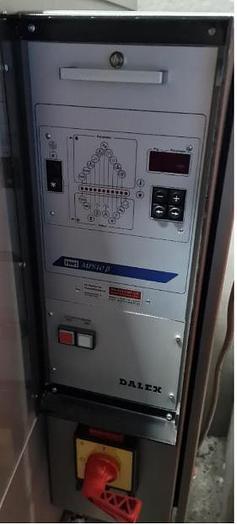

MPK10

Complete solution (in MPK housing) with MPS10, thyristor power stage,

switch disconnector without machine control package

MPK10-CE

Complete solution (in MPK housing) with MPS10, thyristor power stage,

switch disconnector without machine control package
