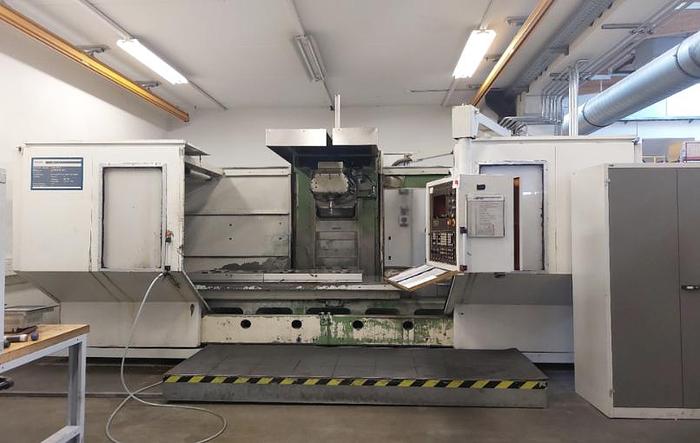

1998 Heller FPU-3-WZW 24

1998 Heller FPU-3-WZW 24

Contact us for price

Munich, Germany

Description

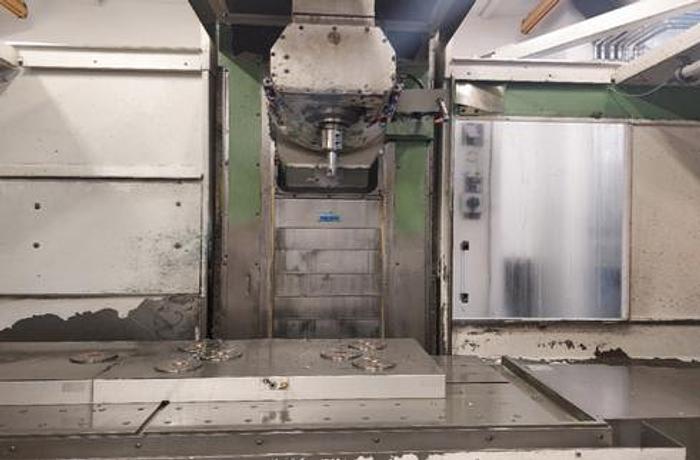

The machine is particularly suitable for machining hard and tough materials, as it is very sturdily built. For this reason, it has been used for roughing titanium and steel components. For example, the FPU-3 has flat guides and a high max. permissible torque of 2,800 Nm can be used due to the gear spindle. Tools with a diameter of 315 mm and a length of max. 340 mm can be inserted into the tool magazine. The machine has always been maintained with TPM. A detailed machine documentation is available.


Accessories / equipment:


- Matching platform made of galvanized sheet steel with soft supports.

- Chip conveyor

- Tool magazine



General brief description:

The machine is particularly suitable for cutting hard and tough materials, as it has a very stable construction.

For this reason, it has been used for roughing titanium and steel components. For example, the

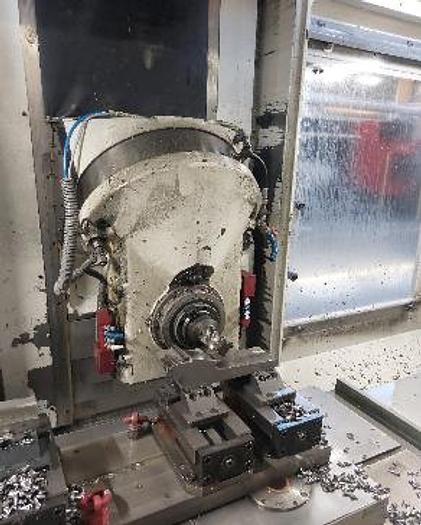

FPU-3 has flat guides and due to the gear spindle a high max. permissible torque of 2,800 Nm

can be used. Tools with a diameter of 315 mm and a length of max. 340 mm can be inserted into the

the tool magazine. The machine has always been maintained with TPM. The mounted

rotary indexing table allows a wide range of machining possibilities.

A detailed machine documentation is available.

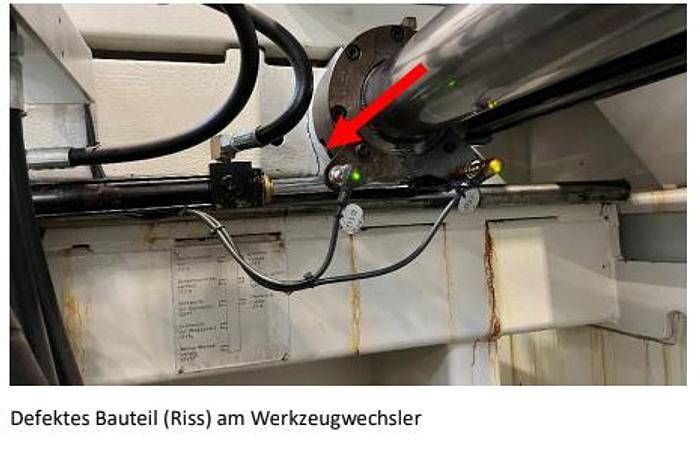

The tool changer is defective, the guide component of the bar has a crack.



Specifications

ManufacturerHeller
ModelFPU-3-WZW 24
Year1998
ConditionUsed
SteuerungUni-Pro NC 80-C
Achsen4
Baujahr1988
VerfahrwegX=1800 mm Y=710 mm Z=800 mm
SpindelausrichtungVertikal
Spindelleistung26 kW
Gesamtleistungsbedarf50 kW
Drehzahl max.2.000 U/min.
Spindellagerdurchmesser120 mm
WerkzeugaufnahmeSK 50
Werkzeugmagazinplätze24
Abstand Spindel/Tisch600 mm
Tischhöhe über Flur800 mm
Tischaufspannfläche2100 mm x 710 mm
Max. Tischbelastung3000 kg
Eilgang10 m/min
Vorschub10 m/min.
Max. zulässiges Drehmoment2.800 Nm
MaschinengewichtCa. 10 t
Betriebsspannung380 V 50 Hz
Gesamtnennstrom6 A
Hauptabmessungen7,4 m x 3,7 m x 3,4 m
