2001 Alzmetall BAZ 26 CNC & BAZ 35 CNC
No longer available
2001 Alzmetall BAZ 26 CNC & BAZ 35 CNC
Munich, Germany
Description

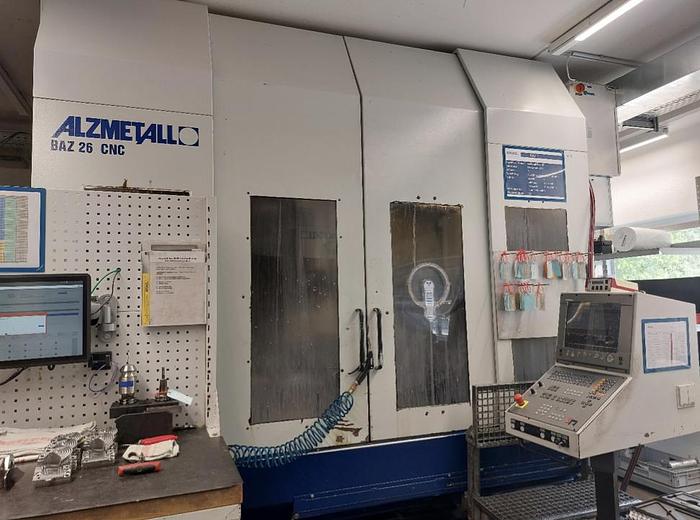

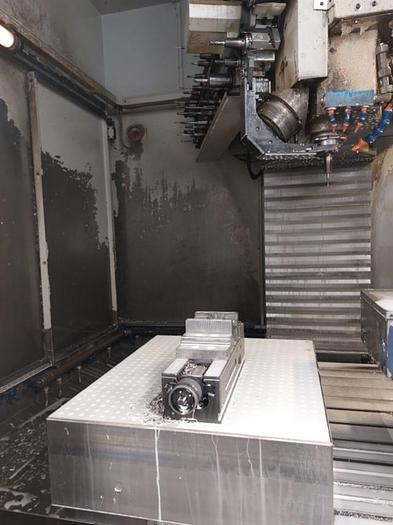

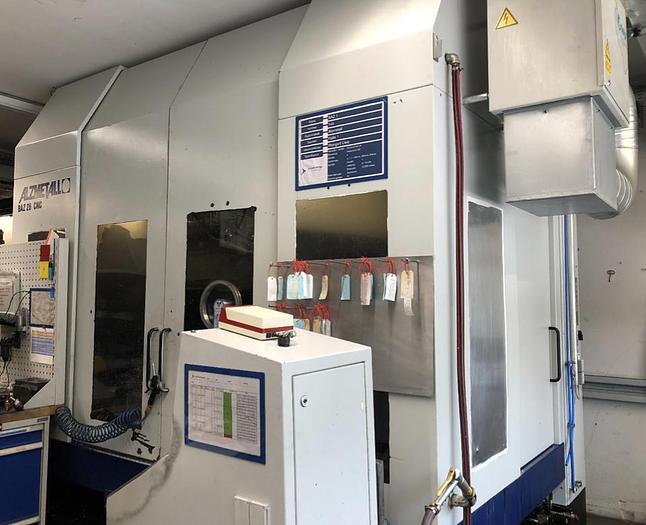

Two pieces Alzmetall BAZ 26/35 CNC were used for machining of small parts made of steel and titanium. The special feature of the milling machine is its layout. On the left side the machine has a stable table for 3-axis machining and on the right side it is possible to machine material 5-axis. The milling machine has always been maintained with TPM and a detailed machine documentation is also available. There are no clamping devices included.
Accessories/equipment:

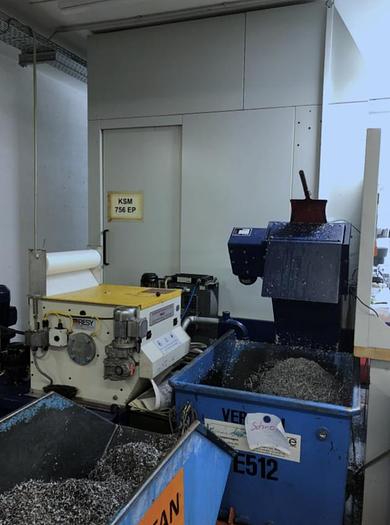

Chip conveyor
coolant preparation (filter belt)
Visiport (1x)
Mobile step stairs
Attached 5-axis table Model
Walter
External spindle cooling (1x)
M&h probe
Suction filter
Spare parts package with spindle motor and
various servo motors
Machine roof
Specifications
| Manufacturer | Alzmetall |
| Model | BAZ 26 CNC & BAZ 35 CNC |
| Year | 2001 |
| Condition | Used |

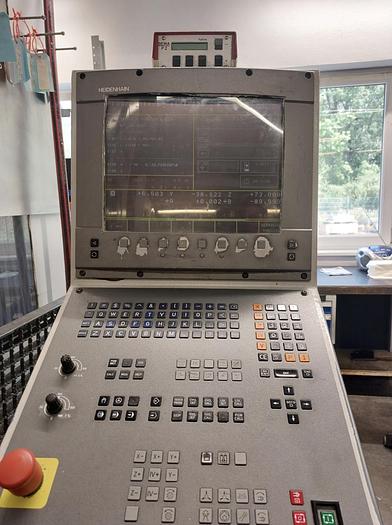

| Steuerung | Heidenhain 430 |
| Achsen | 5 |
| Verfahrweg | X=1200 mm Y=600 mm Z=800 mm (komplett) |
| Spindelausrichtung | Vertikal |
| Spindelleistung | 9/13 kW (BAZ26) 28/38 kW (BAZ35) |
| Max. Drehmoment | 82 Nm |
| Drehzahl max. | 13.000 U/min. (BAZ26) 12.000 U/min. (BAZ35) |
| Werkzeugmagazinplätze | 32 |
| Spindelaufnahme | SK 40 |
| Abstand Spindel/Tisch; min./max. | 125/925 |
| Max. Vorschub | X-Y-Achsen: 40 m/min; Z-Achse: 30 m/min. |
| Baujahr | 2001 (BAZ26) / 2002 (BAZ35) |
| Maschinengewicht ohne Zubehör | 8000 kg |
| Betriebsspannung | 3x400V 50Hz |
| Gesamtnennstrom | 38A |
| Hauptabmessungen | Circa 4 m x 2,3 m x 3,15 m |
