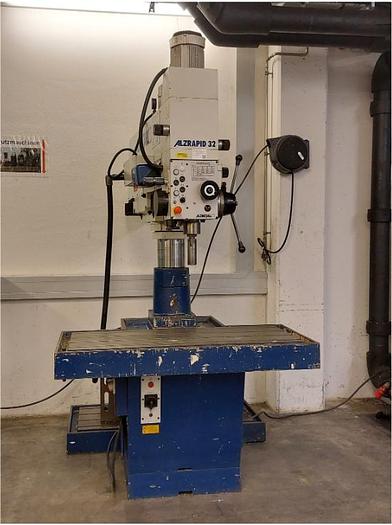

2001 Alzmetall Alzrapid 32

2001 Alzmetall Alzrapid 32

Contact us for price

Munich, Germany

orCall ‭+49 152 23026695‬

Description

Radial drilling machine


Year of manufacture 2004


feeds 0,1-0,2-0,3 mm/rev.

spindle mounting MK 4

Drive gearbox

Motor 1500/3000 rpm.

power 1,0/1,5 kW

Total power requirement 2 kW

Length arm 725 mm

Threading capacity steel E 335 (St 60) 24 M

Drilling capacity steel E 335 (St 60) *1) 32 mm

Drilling capacity cast iron EN-GJL-200 (GG 20) 32 mm

Spindle stroke 150 mm

column stroke 400 mm

Clamping area w x d x h 1175 x 525 x 830 mm

T-slots: Number x width x spacing 4 x 18 x 140 mm

Operating voltage 400 V 50 Hz

Total rated current 10 A

Weight 2200 Kg

Space requirement approx. 1.3 x 1.7 x 2.3 m

length 1900 mm

width 1900 mm

Height 24696 mm

Accessories / Equipment Documentation available

Thread cutting

Three feed stages

1x clamping angle 39,5 cm x 29,5 cm x 22,2 cm




Machine is emptied, cleaned and is ready to be

ready to be craned in the yard.

Specifications

ManufacturerAlzmetall
ModelAlzrapid 32
Year2001
ConditionUsed
SteuerungHeidenhain 430
Achsen5
VerfahrwegX=1200 mm Y=600 mm Z=800 mm (komplett)
Spindelausrichtungverticaal
Spindelleistung9/13 kW (BAZ26) 28/38 kW (BAZ35)
Maximaal Drehmoment82 Nm
Drehzahl max.13.000 E/min. (BAZ26) 12.000 E/min. (BAZ35)
Werkzeugmagazinplätze32
SpindelaufnahmeSK 40
Onthoud Spindel/Tisch; min./max.125/925
Maximaal VorschubX-Y-Aken: 40 m/min; Z-Achse: 30 m/min.
Baujahr2001 (BAZ26) / 2002 (BAZ35)
Maschinengewicht ohne Zubehör8000 kg
Betriebsspannung3x400V 50Hz
Gesamtnennstrom38A
HauptabmessungenCirca 4 m x 2,3 m x 3,15 m
