2011 Trumpf TruMark Station 5000

2011 Trumpf TruMark Station 5000

Contact us for price

Munich, Germany

orCall ‭+49 152 23026695‬

Description

always well maintained 2.742 hours run thusfar

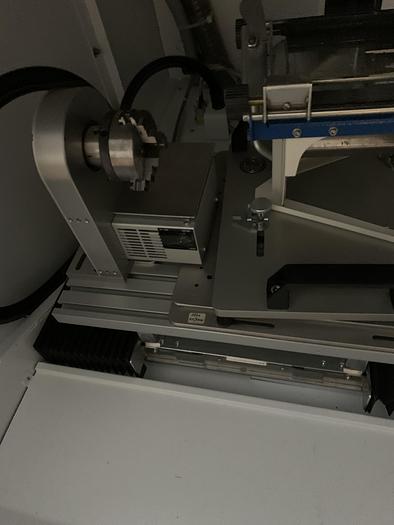

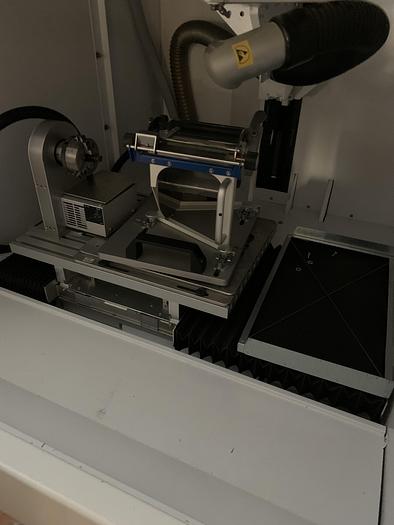

The Trumpf TruMark Station 5000 laser marking machine was manufactured by the renowned Trumpf company. The machine allows for very fast and accurate marking of objects, thanks to the high frequency of the laser pulse, up to 1000 kHz. The TruMark Station 5000 is characterized by a high traverse speed of the X and Y axes of 300 mm and the Z axis of 500 mm, which significantly shortens the interval between two marking cycles. The station processes workpieces with dimensions (W x H x D): 680 mm x 500 mm x 700 mm and a maximum weight of 50 kg (without the X / Y axis) or 25 kg (with the X / Y axis). The marking machine enables the creation of inscriptions with a maximum field size of 290 mm x 290 mm, with a focal length of 420 mm. The machine worked a total of 1,317 hours.


Technical data for the TruMark Station 5000 laser marking system



- maximum dimensions of the workpiece (W x H x D): 680 mm x 500 mm x 700 mm

- maximum size of the field for inscriptions: 290 mm x 290 mm with a focal length of 420 mm

- maximum mass of the workpiece (without X / Y axis): 50 kg

- Maximum workpiece weight (with X / Y axis): 25 kg

- shifts in the X / Y / Z axes: 300/300/500 mm

- travel speed in the X / Y / Z axes: 6/6 / 1.5 m / min

- laser beam quality (M²): <2

- laser wavelength: 1062 ± 3 nm

- laser medium: Yb: optical fiber

- adjustable pulse duration: 9 ns - 200 ns… continuous pulse

- pulsation frequency: cw, cwm, 1 kHz - 1000 kHz

- minimum focal diameter: 41 μm with a focal length of 100 mm

- maximum internal focal position control: ± 60 mm at 420 mm focal length

- scanner calibration accuracy: ± 50 μm

- degree of protection: IP54

- electrical connection (voltage): 115/230 V

- electrical connection (frequency): 50/60 Hz

- electrical connection (intensity): 10/13/15/16/20 A

- maximum power consumption: <2.55 kW

- electrical connection (voltage): 85 V - 264 V.

- electrical connection (frequency): 47 Hz - 63 Hz

- power consumption at rated power: 0.3 kW

- maximum power consumption: 0.6 kW

- ambient temperature: 15 ° C - 40 ° C

- relative humidity: max. 90% at 15-25 ° C

- processing head dimensions (width x height x depth): 414 mm x 131 mm x 147 mm

- dimensions of the power supply device (W x H x D): 445 mm x 550 mm x 420 mm

- dimensions of the workstation (W x H x D) of the Station 5000 machine: 860 mm x 2000 mm x 1310 mm

- processing head weight: 8 kg

- weight of the power supply: 47 kg

- weight of the workstation without a built-in laser: 410 kg



Find more here - https://www.ucymachines.com/

Specifications

ManufacturerTrumpf
ModelTruMark Station 5000
Year2011
ConditionUsed
