2006 Goss COMMUNITY
2006 Goss COMMUNITY
Munich, Germany
Description
GOSS COMMUNITY
Printing Units
4 Nos– 4high towers capable of producing16 pages Broadsheet (32
pages Tabloid size)in full colour 24 pages Broadsheet of which 12 pages
in full colour and 12 pages in Black only.
Cut –Off size 578 mm
Maximum Web Width 889 mm
Minimum Web Width 584 mm
Maximum Speed 30,000 copies per hour
Dryers
2 nos Megtec Vertical Coanda dryers
UV Dryer1 no GEW water cooled UV dryer
Folder
Goss N40 with Quarter fold
Reel stands
Enkel & Martin Auto splicers - 3 nos
Machine House Auto paster - 1 no
Goss Manual Reel stands – 2 nos
Drive
Shafted drive with 2 synchronized motors.
Infeed
Megtec Infeeds -3 nos with Quadtech Controls
Ancilliary equipments
1) Baldwin temperature controlled Dampening unit.
2) QTI Silicone Coaters 2 Nos
3) Carrier Chilled water unit (40 tons)
4) Katec after burner
Year of Manufacture 2006 Year of installation 2007

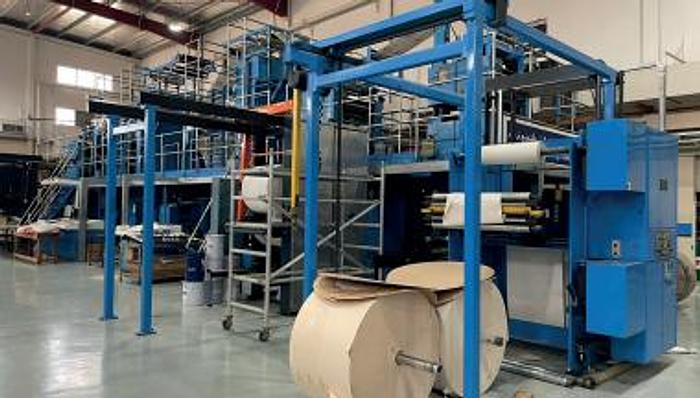

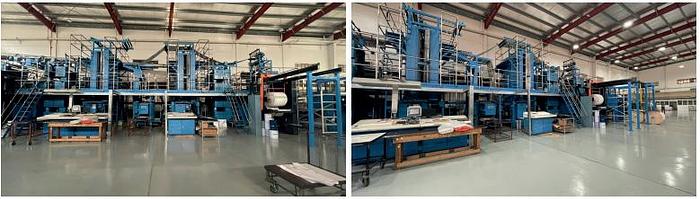

Goss Community Press
Cut-off: 578mm
Consisting of the following equipment:
1 X Goss Folder SC 916 upgraded to N40
4 X Goss Community 4-High Printing Towers
2 X Megtec Vertical Coanda LPG Dryers
2 X Megtec Chill Rolls stand with Silicone Applicators
1 x GEW U.V. Curing System
2 X Megtec Infeed ETI-40 with Angle bars
1 X Enkel Splicer
2 X Martin Splicers
1 X Machine House Auto Paster
Find more here - https://www.ucymachines.com/
Specifications
Manufacturer | Goss |
Model | COMMUNITY |
Year | 2006 |
Condition | Used |
