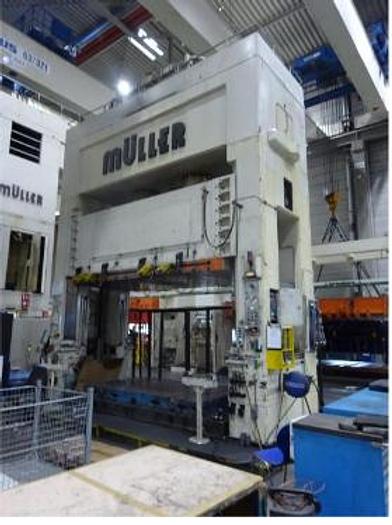

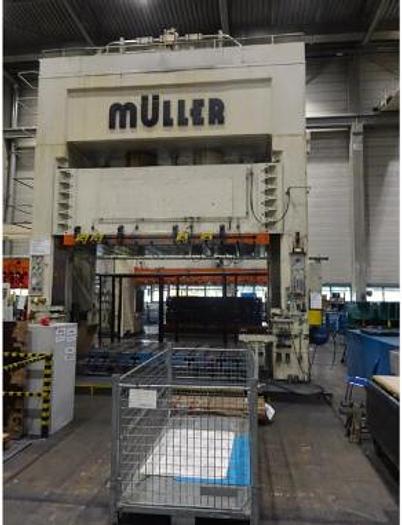

2007 Müller Weingarten ZE 750-40

Tryout press Müller Weingarten, type: ZE 750-40.4.1

pressing force: 700to

table size: 4000 x 2200 mm

Bottom air and top air

Drawing speed: max. 50mm/s

Manufacturing portfolio:

-Body parts: aluminum, steel, stainless steel.

-hot forming direct / indirect

Technical data

7 November 3, 2022 Presentation title

" Manufacturer: Müller Weingarten

" Machine type: ZE 750-40.4.1

" Year of construction: 1977 / Rebuild 2007

" Press force: 700to

" Accessories: To be tested

" Usage: For initial work and for small batches

" Hall crane: Can be used after arrangement with

Known faults on the press

" Leaks in the hydraulic system

(hydraulic block leaking, ram cushion, dip tube leaking, etc.)

" Cracks in the area of the holding devices locking bolts.

" Main pump on the right, pump defective.
