2017 Pulsotronic M Pulse 2

2017 Pulsotronic M Pulse 2

Contact us for price

Munich, Germany

orCall ‭+49 152 23026695‬

Description

Offer equipment for the detection of cheese loaves with diameters up to 30cm and 60cm, smaller as well.


As well as conveyor belts.


Year of manufacture 2017




5 x conveyor belts:



Manufacturer Pulsotronic 2017


3000x650 cm Thermodrive, stainless steel and for foodstuffs


Price against proposal





Metal detector:


Manufacturer Pulsotronic 2017


Type: M Pulse 2


BD-HD750x250 HPW MFT





Metal detector tape stop at metal alarm

pulsotronic

M-Pulse2 BD-HD

- Year of manufacture: 2017

- Serial number (coil): 9000 6638

- Serial number (belt): 8000 0173

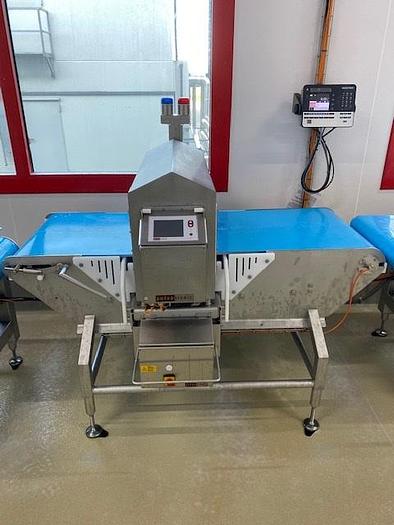

The HQ conveyor belt systems, combined with powerful BD-HD metal detectors, result in a highly sensitive and reliable system for detecting and rejecting metal.

- Search coil for conveyor belt mounting 700 x 200 mm

Note: searchcoil in special version for different

large case (DM 600 and DM 300)

- stainless steel housing

- metal-free zone for moving metal parts: 1.5 x detector height

- metal-free zone for static metal parts: 1.0 x detector height

- Sensitivity: at coil height of 200 mm;

Fe ball: approx. 1.0 mm, stainless steel ball: approx. 1.6 mm

- Product passage height: max. approx. 165 mm

- Protection class: IP69 (HPW)

- Dual frequency technology for product specific detection accuracy

Frequency: 200 kHz / 100 kHz

Control M-Pulse2:

- Display & keypad: 320 x 240 TFT (65,536 colors)

incl. touch + multifunction and arrow keys - 5.7" control panel

- Digital input and output, Analog input and output

- Ethernet RJ45; 10/100 MBit

- Serial interface: RS232

- M-Pulse2 connection set Ethernet HPW

Conveyor belt HQ 1,800 x 650 mm

- Length: 1.800 mm

- width: 650 mm

- Infeed/outfeed height: approx. 850 +/- 50 mm

- Thermoplastic elastomer conveyor belt (VOLTA)

- Speed adjustable: 20 - 30 m/min.

- Product running direction: from left to right

Operating side: in running direction right

- Belt control with frequency converter IP69K

- Gear motor with stainless steel protection cover

- Belt stop in case of metal alarm

- Signal: lamp red/blue & acoustic



Find more here - https://www.ucymachines.com/

Specifications

ManufacturerPulsotronic
ModelM Pulse 2
Year2017
ConditionUsed
