2018 Jwell Gravimetric compounding line

We have a pelletising/compounding line to sell. The condition of the equipment is very good, near new.

Currently dismantled. Video can be found on https://www.ucymachines.com/de/angebote/3792460-gebraucht-2018-jwell-gravimetric-compounding-line

 The line consists of items made by different companies.

Gravimetric feeding (loss-in-weight feeding) K-tron Colormax System, Vacuum loading System Dega (manufactured in China but it is the same company as in Italy. The Chinese branch specialises in gravimetric dosing http://www.dega-changzhou.com/en/index.php/company), inverter ABB, torque limiter Autogard etc.

Suitable types of polymers are especially PP, HDPE, PET, ABS. The capacity stated by the manufacturer is 1000 kg/h. Even more than 1000 kg/h was produced on the line, if the material was of suitable properties (higher MFI).

Below I am sending a list of what the line consists of and selected technical data. The underwater pelletising system and highly accurate gravimetric dosing systems are worth noting.

• Main motor 250 kW, 89.4 kW heating zone and 20 kW others (total line 360 ​​kW), 600 rpm, speed adjustable by ABB frequency converter
• Autoguard UK safety clutch between engine and gearbox
• Gearbox with a total torque of 2x1990 Nm
• Processing chamber ratio L/D = 48, in anti-abrasion design Cr26 (hardness max 60±2
• Screw elements also in anti-abrasion version Cr26 (hardness max 60±2)
• Water cooling unit (using demineralised water),
• Vacuum unit for degassing the polymer melt (using fresh water) including a catch container

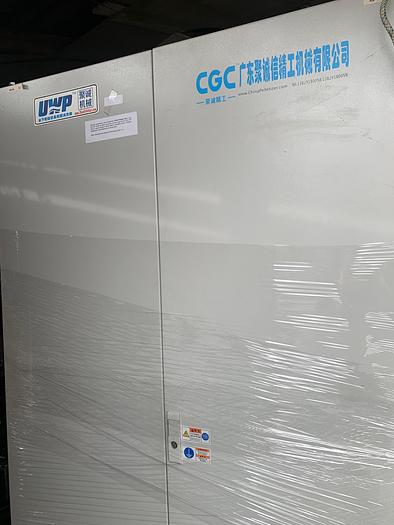

• Schneider PLC control system
• Vacuum filling of flakes/granulate, capacity 600 kg/h
• Flakes/granulate packing hopper equipped with a level indicator and a valve that is controlled by compressed air

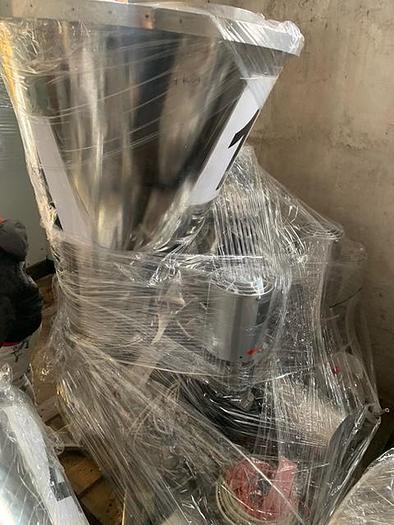

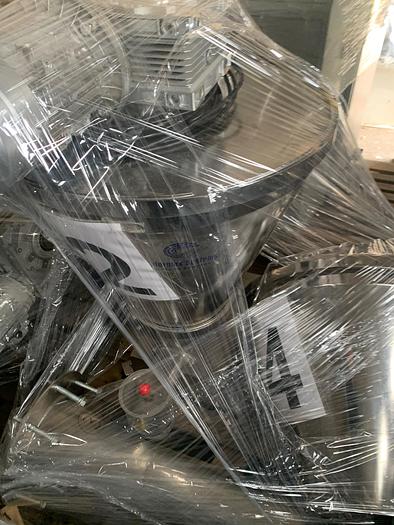

• K-Tron Colormax high-precision single-screw gravimetric feeder for falkes/granules, capacity 100~600kg/hour, accuracy ≤0.5%

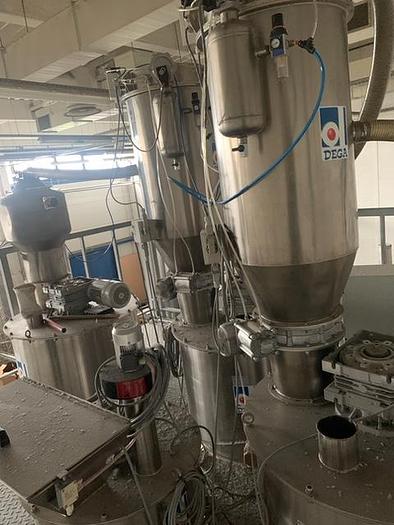

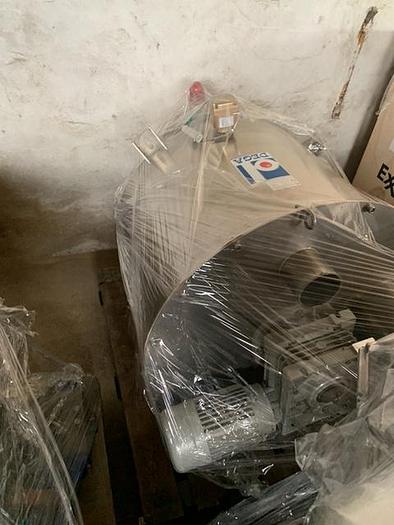

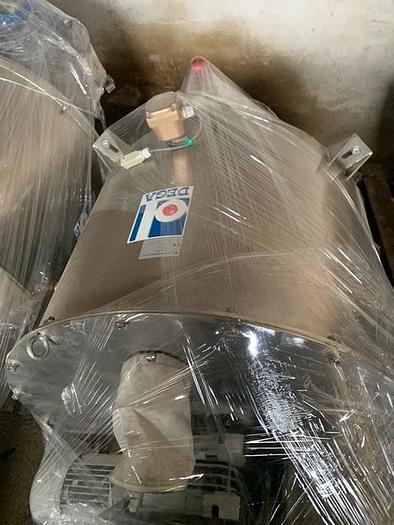

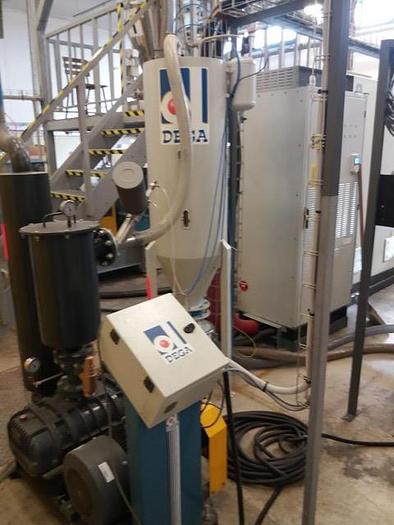

• 2 pcs Dega vacuum feeder for powder additives, capacity 650 kg/h
• 2 pcs Dega filling silo for powder additives, volume 500L, equipped with a level indicator and a sliding valve controlled by compressed air

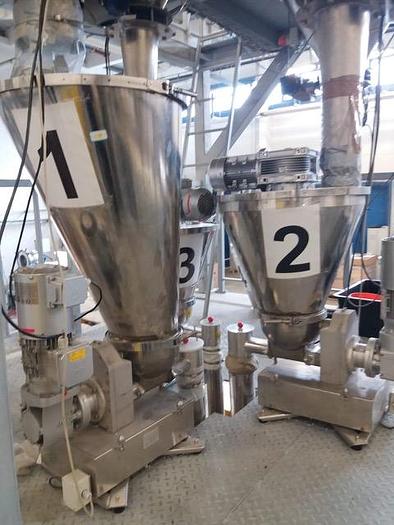

• 2pcs K-Tron Colormax high-precision two-screw gravimetric powder additive feeder, capacity 100~650kg/hour, accuracy ≤0.5%
• Dega filling silo for powder additives, capacity 200L, equipped with a level indicator and a sliding valve controlled by compressed air
• High-precision twin-screw gravimetric feeder for K-Tron Colormax powder additives, capacity 5~50kg/h, accuracy ≤0.5%

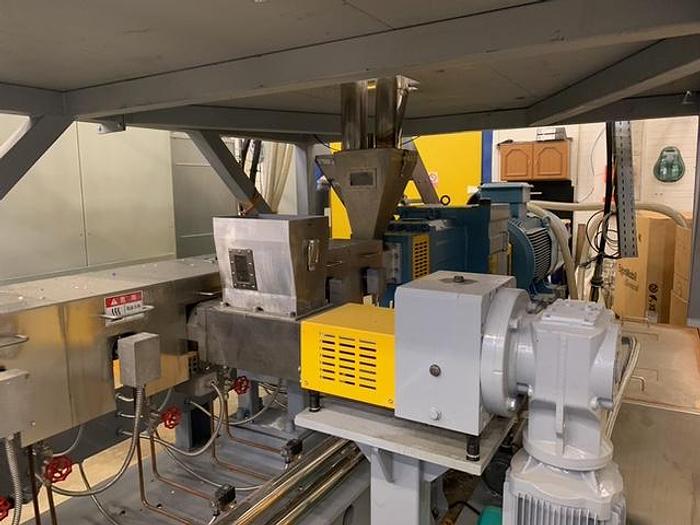

• Double screw side feeder

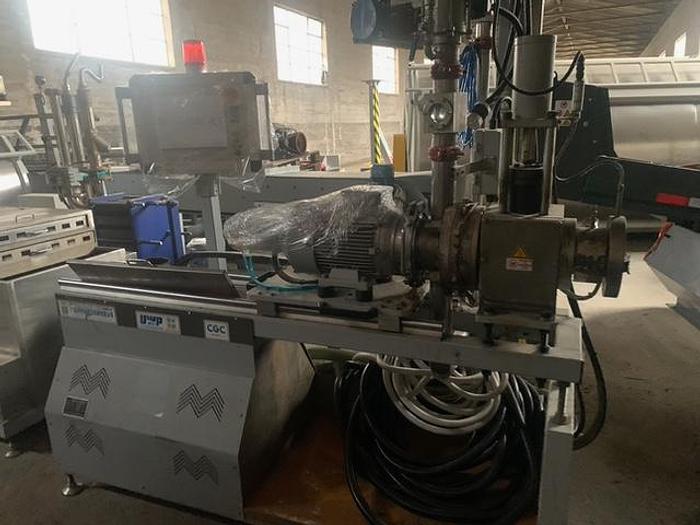

• Continuous filtration, double piston type, model 2*150cm2
• Switching hydraulically operated valve
• Underwater granulation system, maximum capacity 1000kg/h
• Vibrating sieve, vibrating motor 2*0.4kW, capacity 1000kg/h

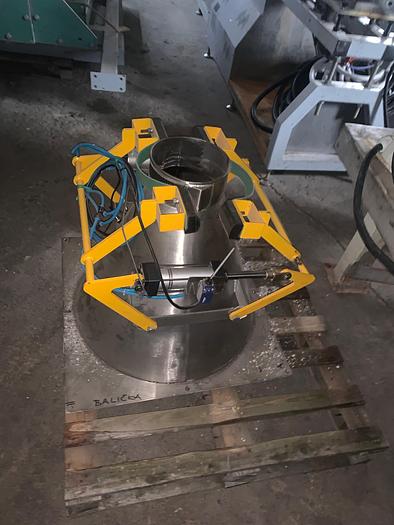

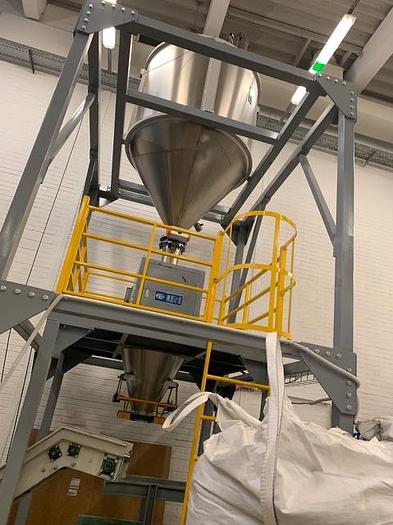

• Automatic packaging line supporting both bagging of 25kg bags and large-volume transport bags with a capacity of 1t, silo with a capacity of 3m3

A complete set of spare screws and screw elements (allows rearrangement of the elements according to the type of material being processed, the length and method of mixing differs for different materials and additives or fillers)

Spare parts and tools - anything that we have will be passed on to the new owner

Working temperature around the machine: 0 ° C - + 40 ° C

Relative humidity ≤ 80%

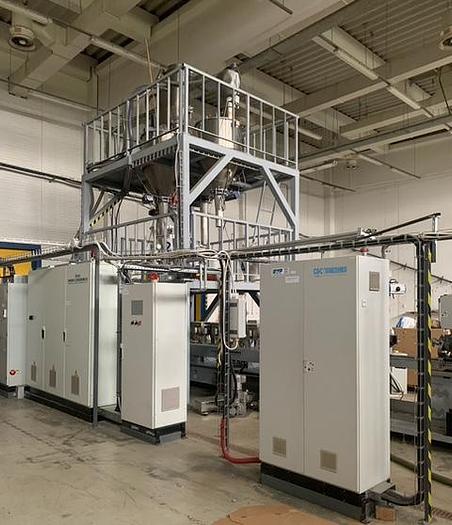

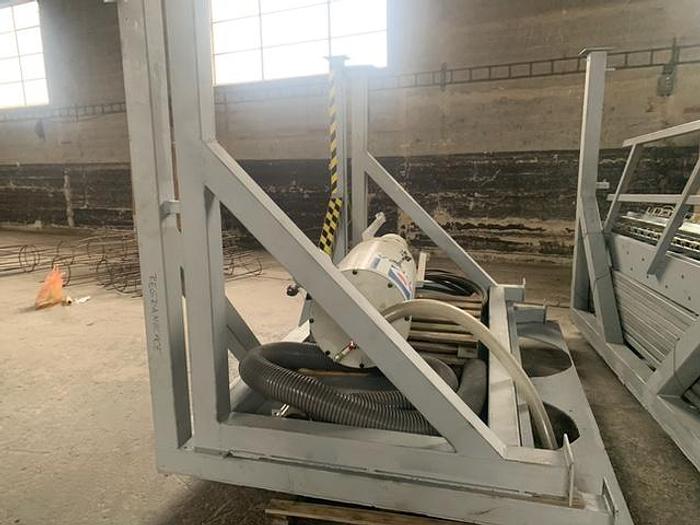

Steel structures and wiring from the equipment in the line to the distribution boxes are part of the delivery. The customer must ensure the electrical distribution from the distribution boxes to the main switchboard on his premises.

The customer must ensure a sufficient amount of electricity (360kW), compressed air (pressure 0.6-0.8 Mpa, volume 2m3/h) and cooling (temperature ≤30℃, pressure 0.2-0.4 Mpa, volume 20m3 /h)

The device is functional

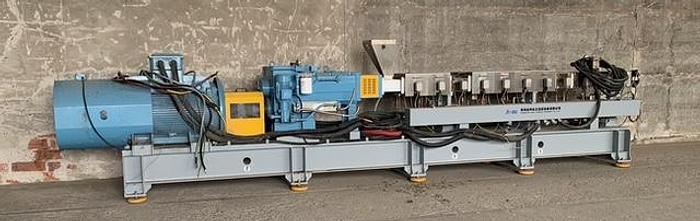

Twin screw extruder

Screw Do Ф71mm

Screw Di Ф47mm

Screw channel depth 12mm

Do/Di 1.55

Barrel inner diameter Ф71.8mm

Central distance 60mm

Screw and screw gap 1mm

Screw and barrel gap 0.4mm
