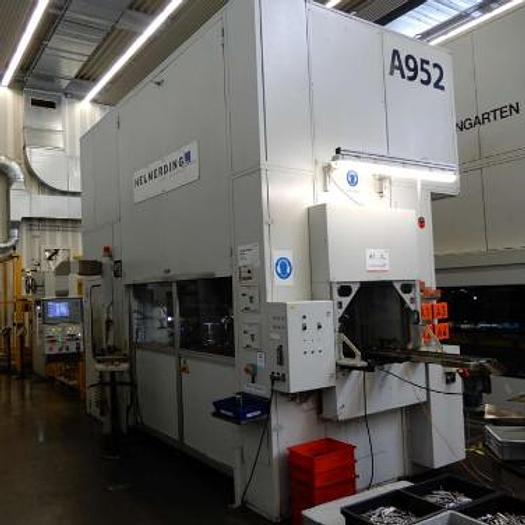

Eccentric press 250t incl. belt system and feed unit
Complete plant manufacturer Helmerding
Year of construction 2004
Stroke counter: 139,8Mio strokes (as of 19.12.2022)
Scope of delivery:
1 Conveyor system
2 Coiler chair
3 decoiler
4 Straightening unit
5 Control unit
6 Roll feed
7 Eccentric press
Press control
Complete system
Control cabinets
Hydraulic unit
Connection data of the complete line (belt line / press / feed):
- Operating voltage: 3 / PEN 400 V 50 Hz
- Control voltage: 24 VDC / 230 VAC
- Rated current: 290 A
- Drive power: 116 kW
- Back-up fuse: 315 A

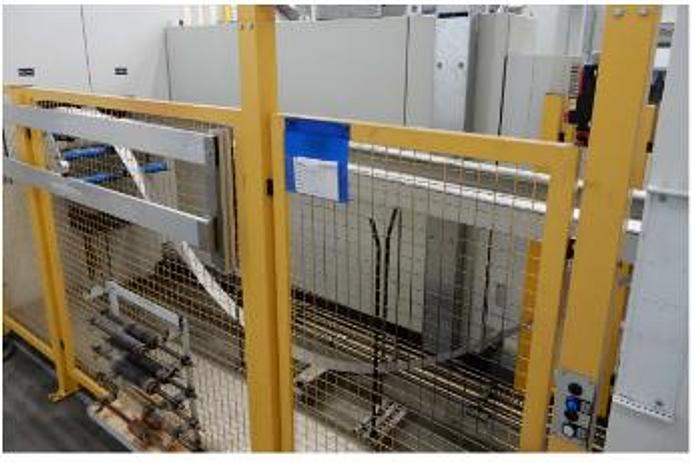

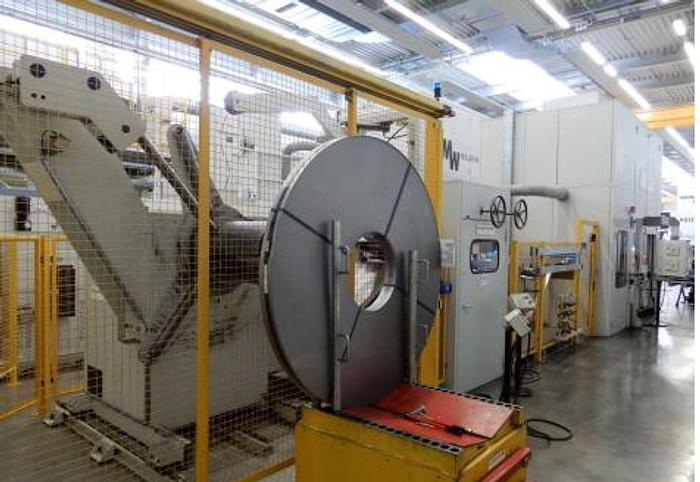

1 conveyor system
Helmerding coil line consisting of (incl. protective fence reel and enclosure coil transfer)
- Coil loading chair
- decoiler
- Straightener with insertion aid
- Hydraulic unit (in complete line)
- Electrical system and control system (in complete system)
Technical data coil line
Painting
- Machine: Light gray RAL7035
- Moving parts: Golden yellow RAL1004
Direction of passage
- From left to right
Material data
- Material: Steel
- Material thickness: 0,7 -5mm
- Material width 60-600mm
Weights / Transport
loading chair 1.500kg
decoiler 6.600Kg
Straightening machine 4.000Kg
Switch cabinets, hydraulic unit, accessories 1.000Kg
Space requirement / Transport
loading chair: L=1000 W=800 H=900mm
decoiler: L=3000 W=3700 H=2800mm
straightening machine: L=1900 W=1700 H=2500mm
control cabinets L=3340 W=500 H=2200mm

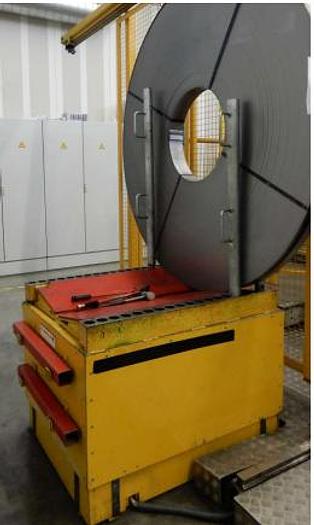

2nd coil loading chair
Type designation:
Model: ZBS-60/060
Year of manufacture 2004
Manufacturer Bartscher
Special accessories
- hydraulic lifting device
- prismatic attachment
- pluggable coil safety bars
Technical data
- lifting height: 600mm
- load capacity: 6000Kg

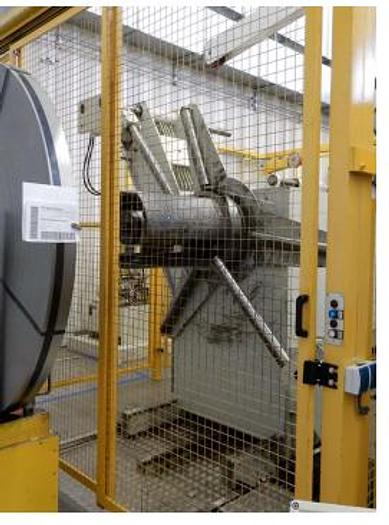

3 decoiler
Type designation:
Model: HE 6/600/MOT/HYD
Machine No.: H-1107-6375
Year of manufacture: 2004
Manufacturer Helmerding Maschinen GmbH
Special accessories
- hydraulic spreading
- hydraulic pressing arm on top
- hydraulic reel traverse
technical data
- spreading range: 470 - 530mm
- strip width: 60 - 600mm
- coil outer diameter: max. 2000
- load capacity: 6000Kg
4 straightening unit
Type designation
Model: R 50/600/9
Year of manufacture 2004
Manufacturer Helmerding Maschinen GmbH
Special accessories
- hydraulic belt infeed rollers
- roll chair adjustment via handwheel
- belt side guide via handwheel
Technical data
- passage width: up to 600mm
- Straightening roll diameter: 50mm
- Number of straightening rolls: 9 pieces
- Infeed roll diameter: 140mm
- Number of feed rolls: 2 pieces
- Throughput speed: 25-40m/min

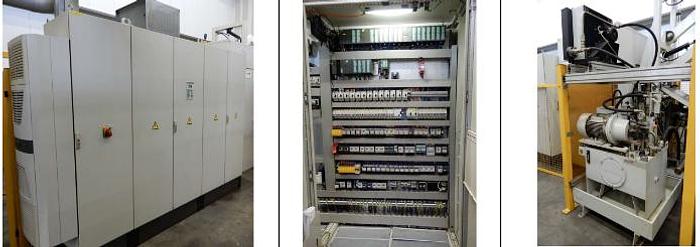

5. electrical system / control system / hydraulic aggregate total system
Control Siemens Simatic OP7
Technical data hydraulic unit
Vg=18ccm, Q=23 l/min, p=200bar, P=11KW, n=1.500 1/min
Weights / Transport Space requirement
switch cabinets, hydraulic power unit, accessories 1.000Kg

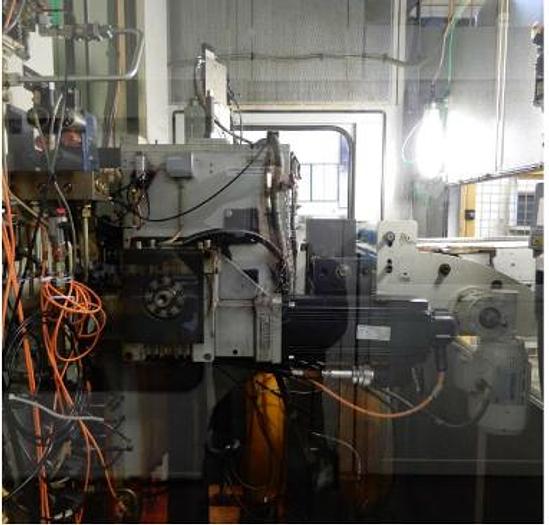

6. roller feed

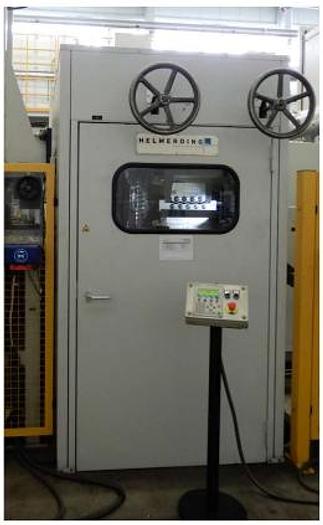

Roll feed
Helmerding roll feed consisting of roll feed, belt transfer and belt lubrication
Type designation
Model: EWH 600/150
Year of manufacture 2004
Manufacturer Helmerding Maschinen GmbH
special accessories
- pneumatic contact pressure
- belt thickness adjustment via handwheel
- belt side guide via handwheel
- electrical height adjustment
Technical data
- passage width: 60 - 600mm
- belt thickness: 0,7 - 5,0mm
- Strip cross section: Up to 2.000mm2
- Roll diameter: 100mm
Painting
- Machine: Light gray RAL7035
- Moving parts: Golden yellow RAL1004
Passage direction
- From left to right

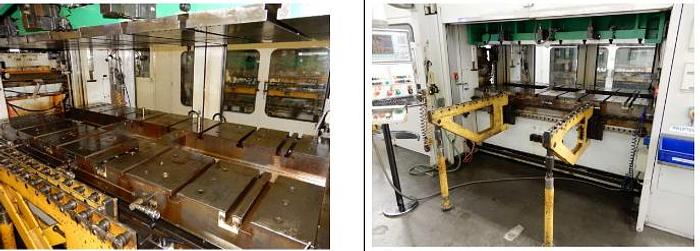

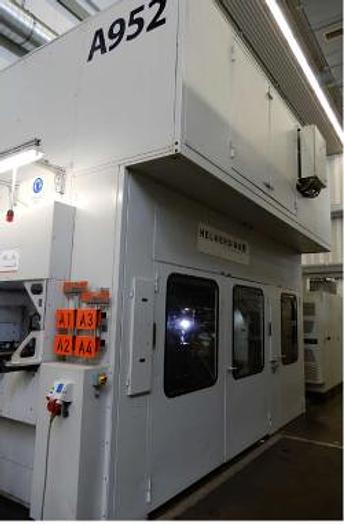

7. eccentric press
Helmerding double column eccentric press incl. output.
Technical data of complete system
Type designation
Model: KDH250/2600/2
Year of manufacture 2004
Manufacturer Helmerding Maschinen GmbH
Connection data:
- Operating voltage: 3 / PEN 400 V 50 Hz
- Control voltage: 24 VDC / 230 VAC
- drive power: 75 kW
Weights / Transport Space requirement
Press 54.000kg
