Kühnezug 50t Crane

The use of the crane has already ended; it lies dismantled in a hall

The machine is equipped with the latest engine and exhaust technology and has less than 200 operating hours. And it stands there like NEW.

We also had a spare wheel with bracket and a fire extinguisher specially fitted to the new machine.

We had been using the crane above a 70m shaft as a service for our construction site.

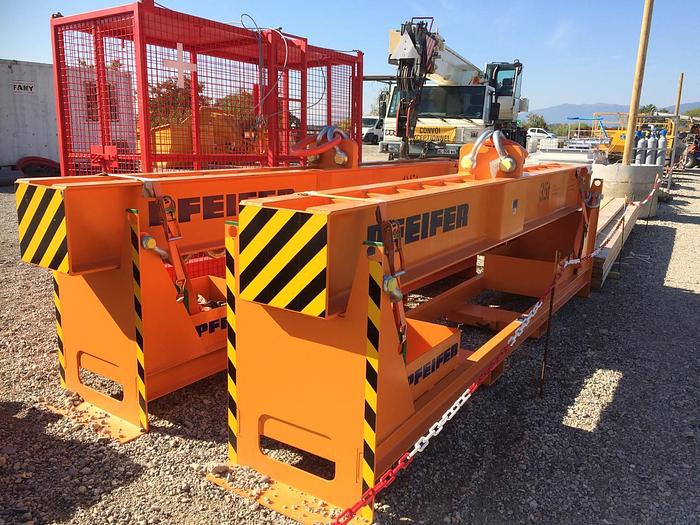

Therefore we have two additional cross beams for the material transport at the crane as well as a corresponding passenger elevator to get in and out of the shaft.

Crane

Safe working load complete: 50 t

Safe working load second hoist: 15 t

Hoist Class H 3

Crane Class B 4

Lenght of rail (Länge Schiene): 40 m not included

Type of rail: A 100

Height of the Hook (Hakenhöhe) 9 m

Height of crane complete ca. 11,6 m

Span (Spannweite): 17 m

Width complete (Kompl. Breite): 18 m

Weehlbase of crane (Radstand vom Kran): 1,85- 1,85- 1,84- 1,85 - 1,85 = 9,25 m

Weehlpressure max. (Raddruck max. ca. ohne Beiwerte) 225 kN

Max. lifting height (Hackenhöhe): ca. 90 m

Crane speed long travel (Kranfahrgeschwindigkeit stufenlos mit FU): 0-40 m/min

Power Motor for long travel (Leistung Kranfahrmotoren) 4 x 6 kW - 60 % ED

Powered wheel units (Angetriebene Einheiten) 4

Revolvin wheel units (Mitlaufende Einheiten) 4

Weigth of complete crane (Gwicht komplett): 70 t

Wheel diameter crane travelling (Laufraddurchmesser) 500 mm

Material Wheel (Laufradmaterial) Steel (Stahl)

Protection class engine (Schutzart Motor): IP 65

Protection class switch cabinet (Schutzart Schaltschrank): IP 65

Protection class brake (Schutzart Bremse): IP 65

Protection class brake resistance (Schutzart Bermswiderstand): Schutzdach = IP 20

Operation by radio remote control (Fernbedienung) yes

Option: second radio remote control (Ersatzfernbedienung) 3 x included (1 for the Cabin)

Emergency button (Notaus) yes - to be discussed where

Power supply for the crane with suspended cable along the runway beam yes included = 40 m / 28.661 EUR

Stand for the crane operator open Stand

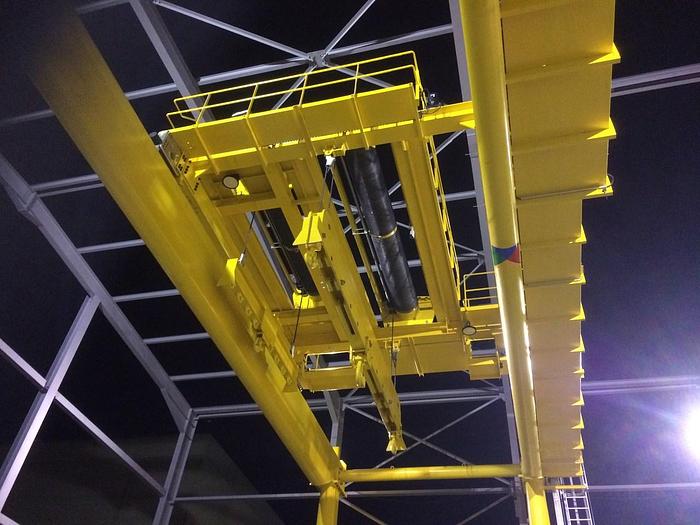

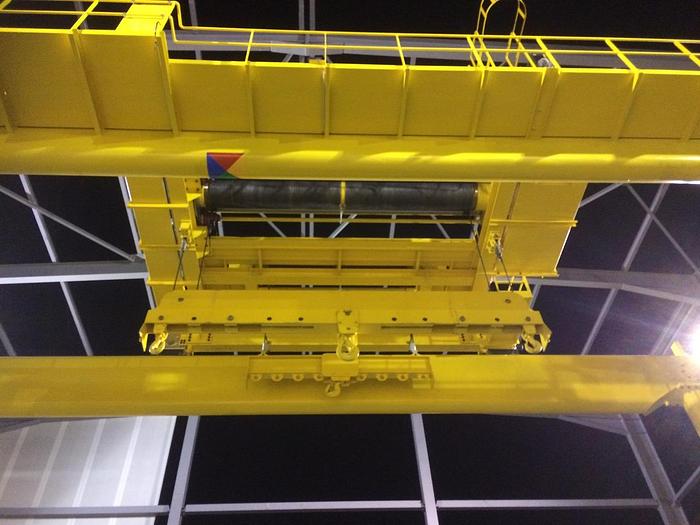

1. Trolley 50 t hoist (Hubwerk) / trolly (Katze)

with 2 hoists

Speed winch at 100 % at capacity 0-8 m/min

Speed winch 75% at capacity 9 m/min

Speed winch 50 % at capacity 11 m/min

Speed winch 25 % at capacity 12 m/min

Speed winch 0% at capacity 13 m/min

Speed cross travel trolley (Katzenfahrgeschwindigkeit): 0-20 m/min

Power hoist motor (Leistung Hubmotor) 1 x 75 kW - 40 % ED

Power trolly motor (Leistung Katzfahrmotoren): 2 x 1,5 kW

Trolley wheel (Katzenlaufräder)

FEM group

FEM group

FEM group

Einschalddauer (ED) 40 % - ED

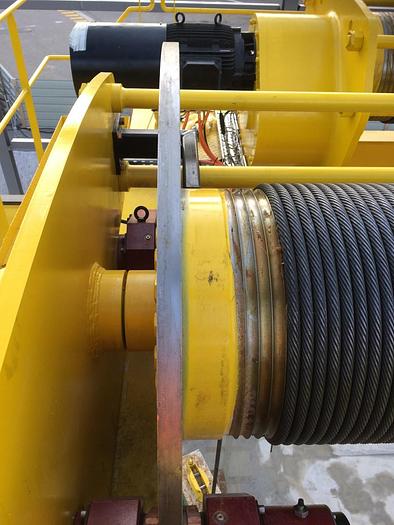

Rope diameter 22 mm

reeving (Einscherung) 4/2

hook size (Hakengröße) RN 12 - single

Material wheel Polymer

15 t hoist (Hubwerk)

Speed winch 100 % at capacity 0-80 m/min

Speed winch 75% at capacity 90 m/min

Speed winch 50 % at capacity 100 m/min

Speed winch 25 % at capacity 110 m/min

Speed winch 0% at capacity = with 1.000 kg 120 m/min

Speed without any load (Unterlastsicherung Geschwindigkeit ohne Last) 30 m/min

Power hoist motor (winch) 2 x 112,5 kW

FEM group 4 m

Einschalddauer (ED) 60 % - ED

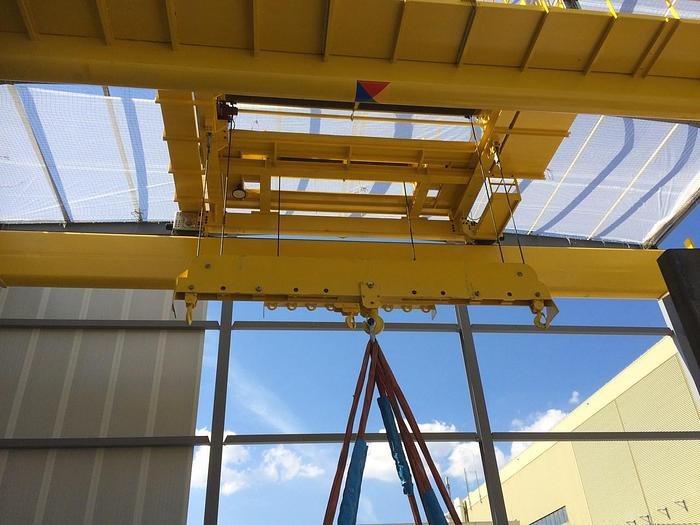

crane traverse (width / capacity / mounting distance) included

Rope diameter 24 mm

Einscherung 2/2

Hakengröße RN 8 - einfach

Main Cable (Hauptstromführung) incl.

Ersatzfunksteuerung incl.

Roof / Protection from Weahter Trolly 1+2 incl.

Protection Weather = IP65 incl.
