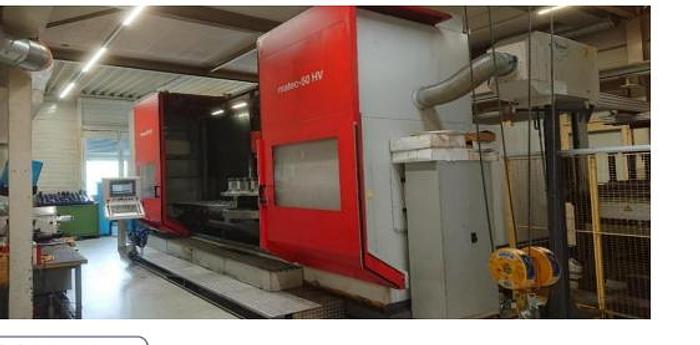

2006 Matec 50 HV

Manufacturer Matec

Type 50 HV

X-axis 5000mm

Y-axis 1000mm

Z-axis 1100mm

B-axis .+ / - 110 degrees

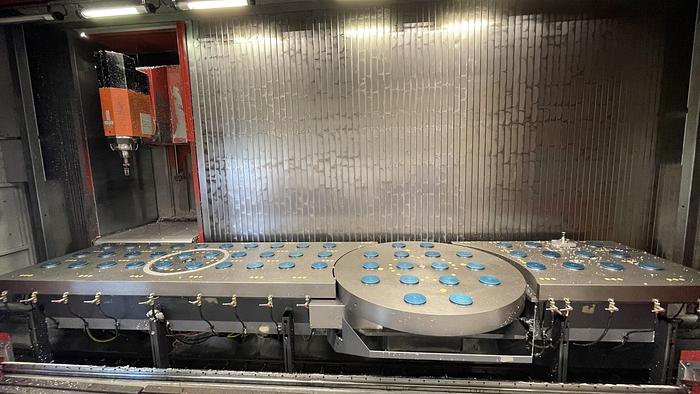

rotary table 1 Ø1600 - 2T load

rotary table 2 Ø 600 - 800 Kg load

Year of construction 2006

spindle power 44kw at 5400U/mm

spindle support HSK 100

maximum speed 12'000 rpm

tools max. Ø120 mm

tool length max. 460 mm

Magazine capacity 60 pcs. main magazine - 75 pcs. additional magazine

Special measuring probe Marpos
