2011 Schnupp 2000t Press
2011 Schnupp 2000t Press
Linz, Austria
Description

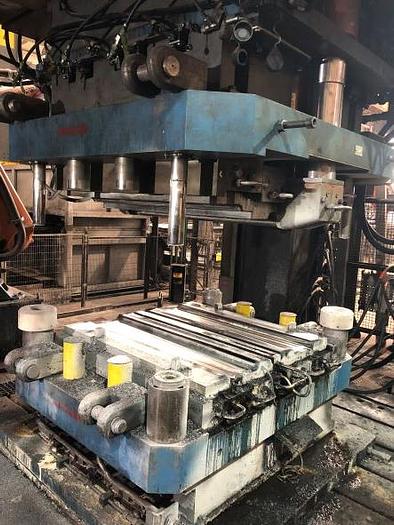

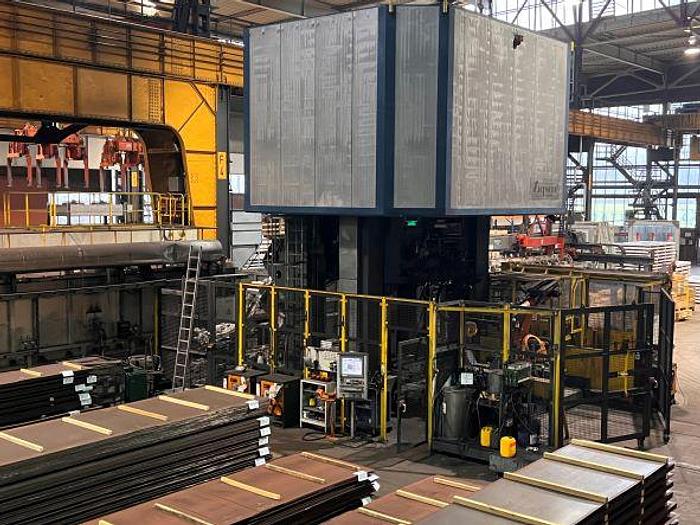

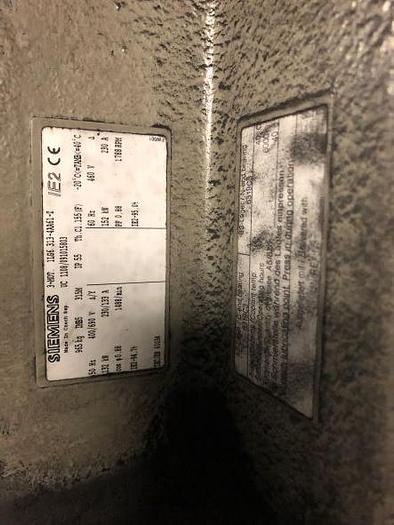

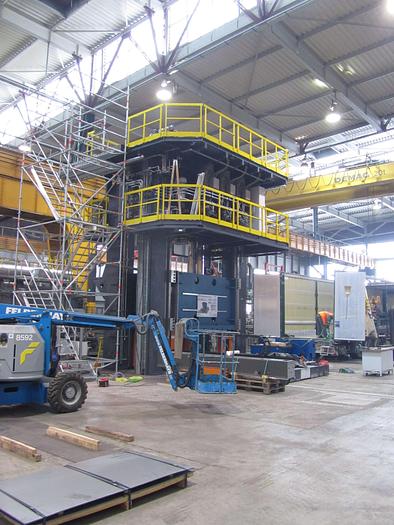

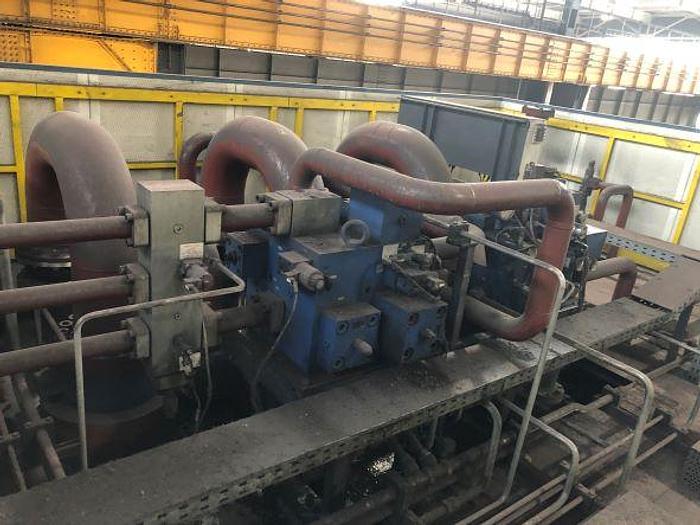

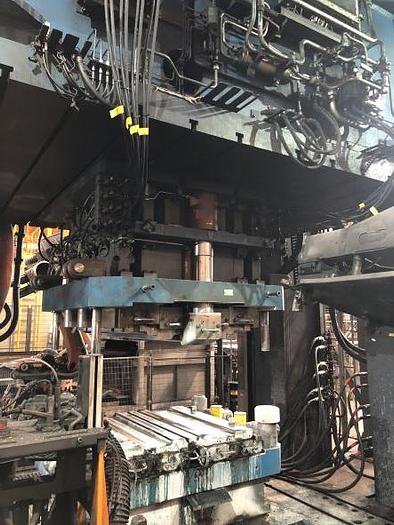

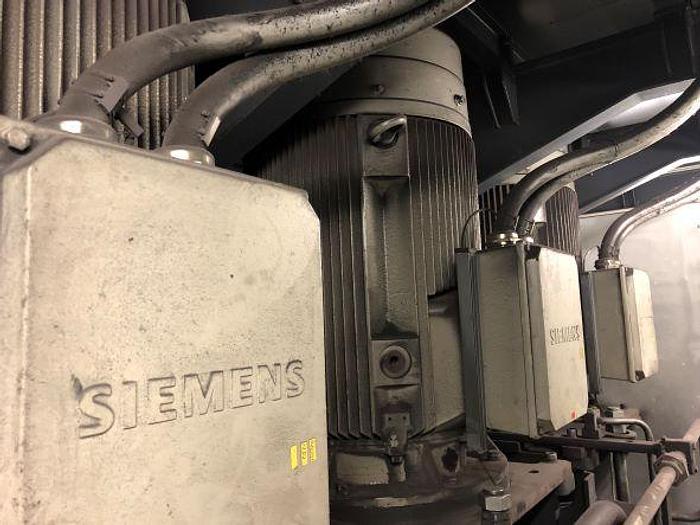

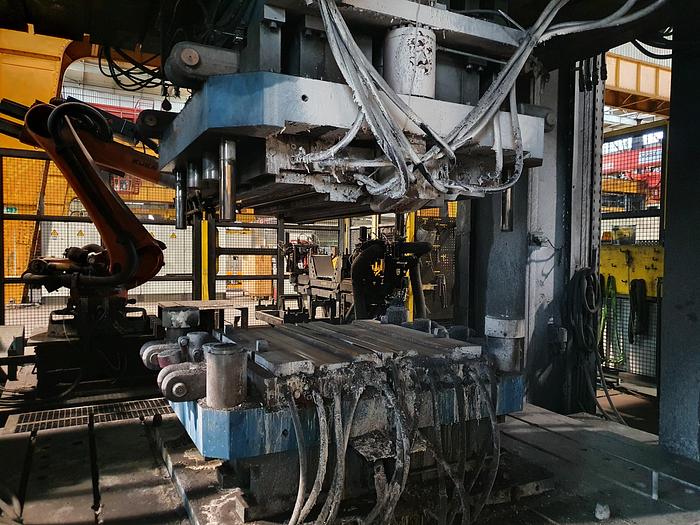

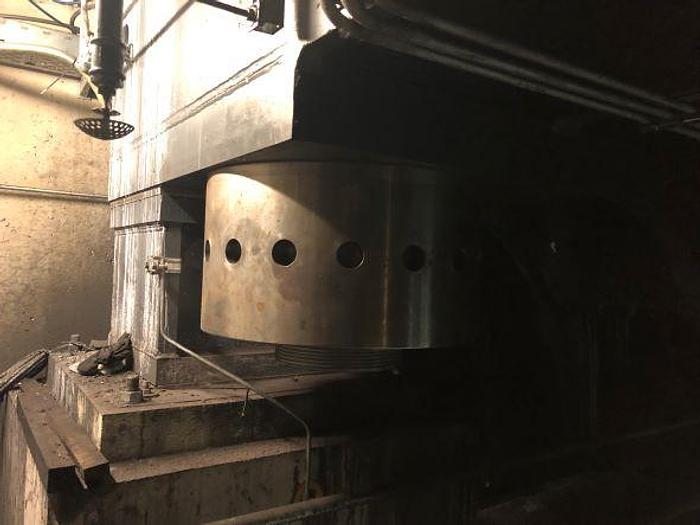

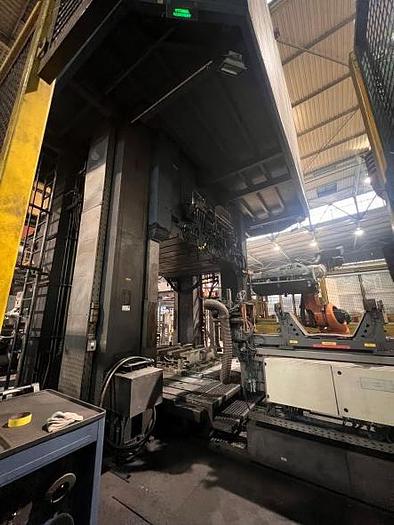

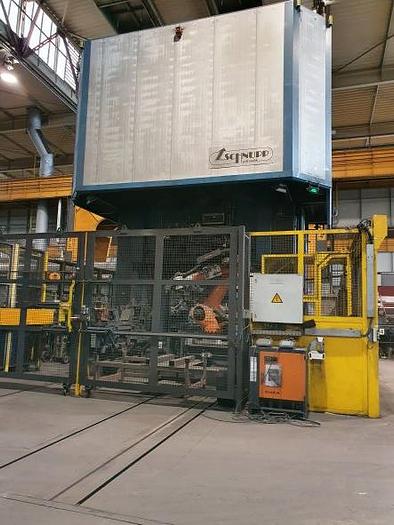

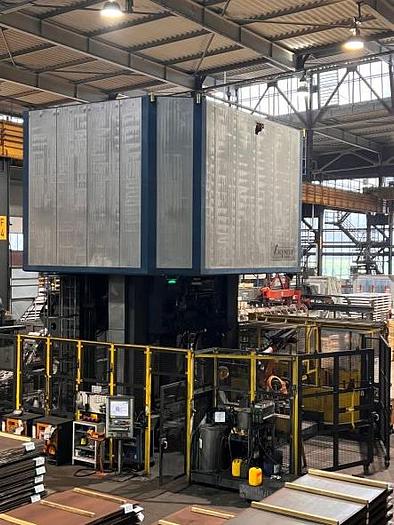

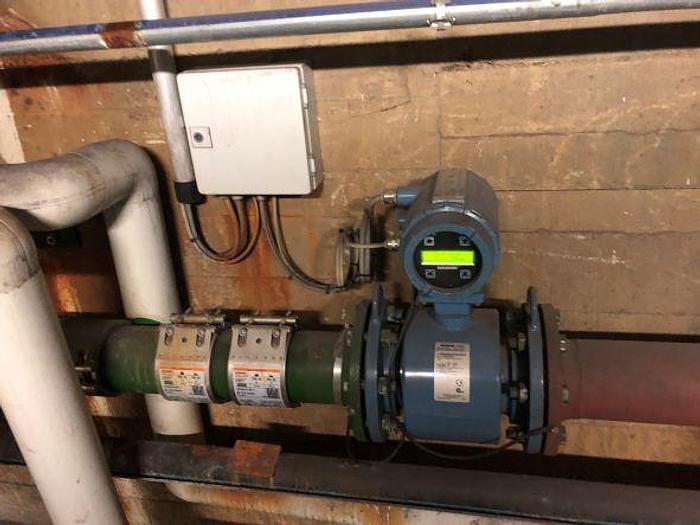

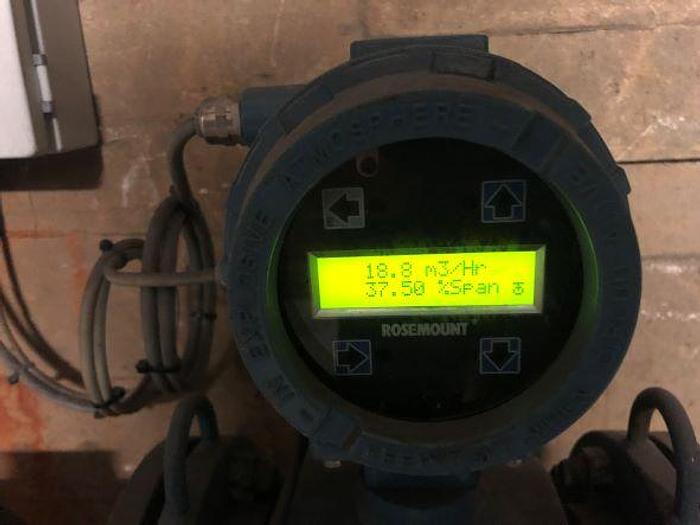

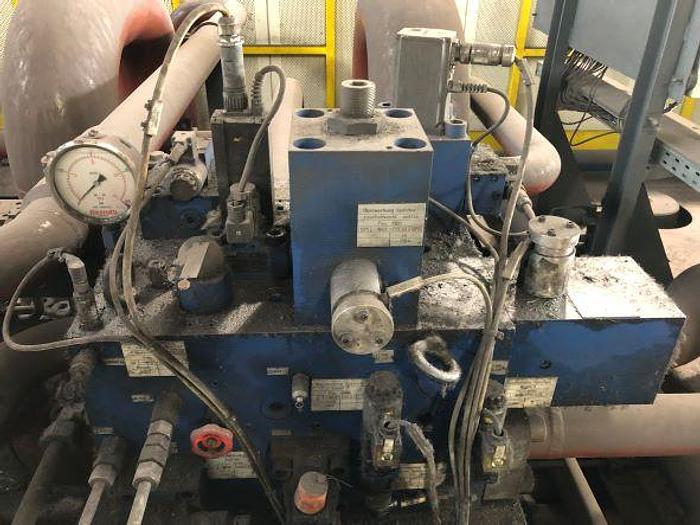

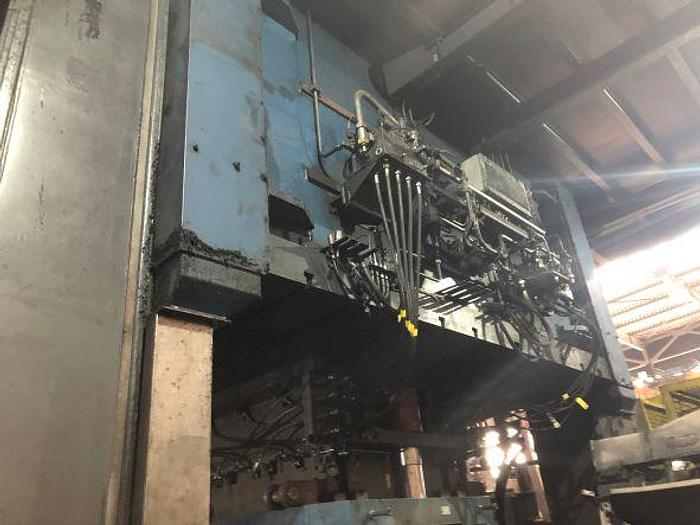

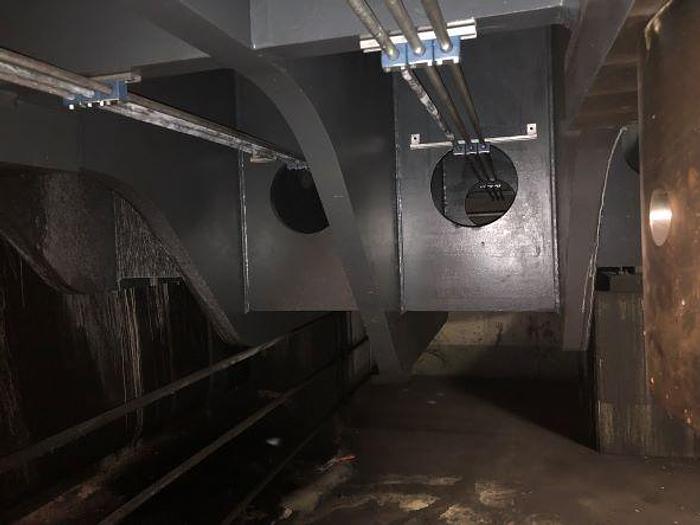

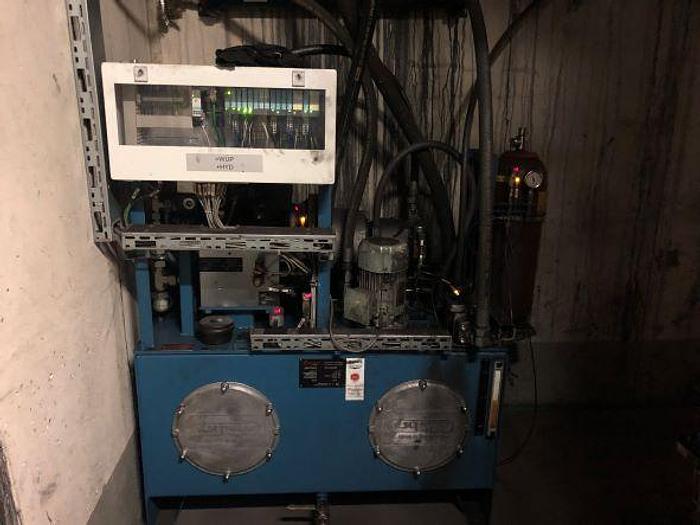

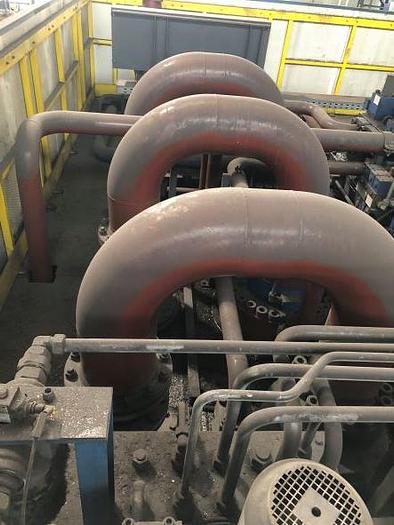

we would like to sell a hydraulic press/manufacturer Fa. Schnupp, BJ2012 (details in the enclosure). The 2000t press is suitable for hot forming, it is in a very good condition,
the press was working to capacity with approx. 55,000 strokes per year

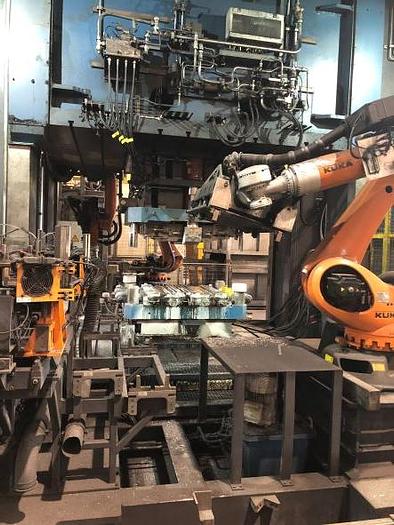

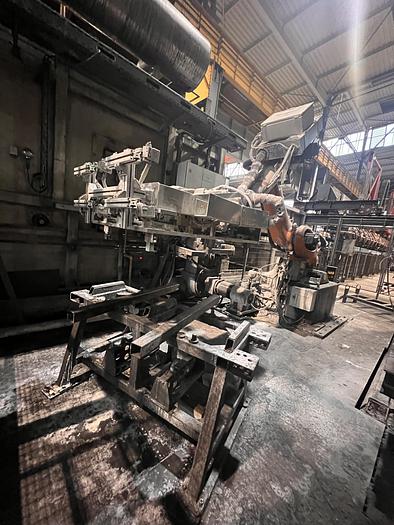

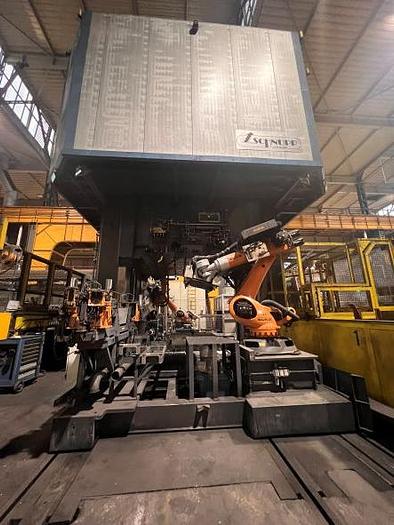

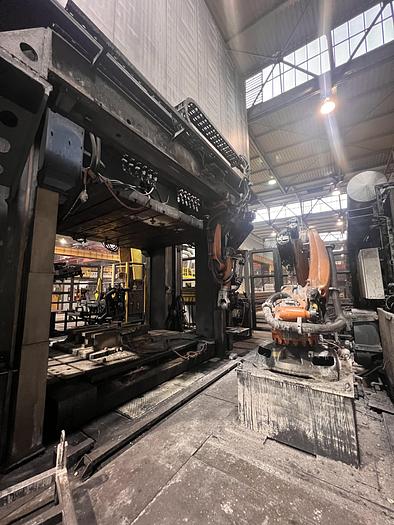

Together with the press, both Kuka articulated robots for loading and unloading of parts are sold.
Tecnical details in pdf on website
Dimensions
Length x width x height 6990x3800x10265 mm
Length x width x height with stage 6990x4950x10265 mm
Height above floor 8500 mm
table width 3300 mm
table length 2500 mm
table height 400 mm
ram stroke (cyl.stroke -50mm) 1500 mm
min. tool installation dimension 1200 mm
travel distance travel table approx. 6000 mm
Weight
statistical total weight press 320000 kg
(incl. die and moving table)
dyn. additional load with braking distance (200mm) kg
Total weight of press 320 000 kg
weight of moving table with die 65 000 kg
max. weight of die 40 000 kg

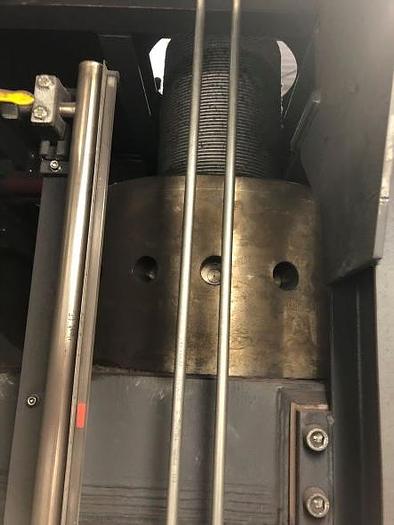

Tie rod
nominal diameter NM 310 x 8 mm
weight 3940 kg
Weight of clamping nut 700 kg
Forces
Closing force 1 (forming) 6 000 kN
Clamping force 2 (final forming) 20 000 kN
Ram retraction force 1 000 kN
Clamping force pin cylinder 20 kN
Speeds
Free fall ram up to 650 mm/s
Preform up to 70 mm/s
Final forming up to 16 mm/s
Retraction ram up to 450 mm/s
Cycles/min `2
Travel speed of moving table 2 m/min

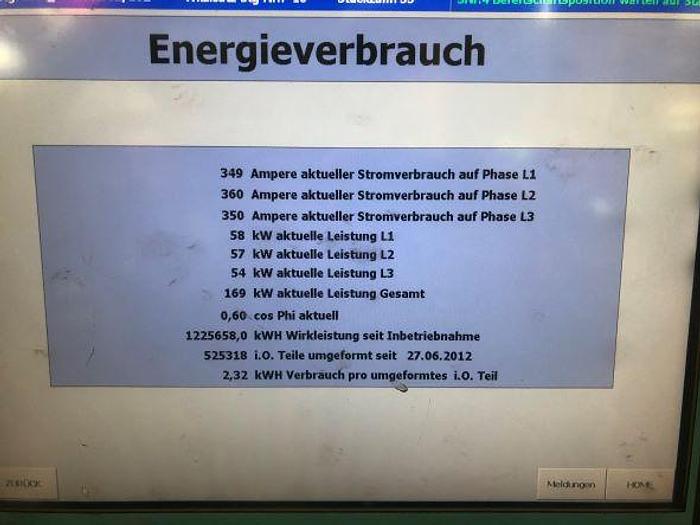

Electrical system
Connected load press hydraulics 430 kW
Connected load, die hydraulics 11 kW
Connected load, cpl. 445 kW
Fuse protection A
Reactive power 558 Kvar
B1 Width press head 4950 H1 Clearance height 4350 L1 Length platform 6990 S1 Length 3700 Voltage 400V / 50 Hz
B2 Center distance 3300 H2 Total height above floor 8500 L2 Length upright 732 S2 Distance between T-slots 300 Valve voltage 24V / DC
B3 Total plunger width 2865 H3 Total height 10265 L3 Clearance 3720 S3 Center distance first T-slot 225
B4 Total width upright 2620 H4 Pit depth 3000 L4 Length sliding table 3295 S4 Width 2800 Cooling
B5 Width of upright 760 H5 TDC of ram from top of floor 2900 L5 Length of lower beam 5500 T1 Length 3300 Cooling capacity for press hydraulics 160 kW
B6 Clear width 1100 H6 Ram stroke 1500 ØD1 Centering pin Ø 42.5 T2 Distance between T-slots 300 Cooling capacity for auxiliary hydraulics kW
B7 Total width sliding table 3455 H7 UT ram from UK floor 1400 D2 Plunge depth 80 T3 Center distance first T-slot 225 Hydraulic oil volume
B8 Total width lower beam 3800 H8 Table height 400 T-slot size 32 T4 Width 2500 Press 7 500 l
H9 min. wkz. Installation dimension 1200 Additional unit
Find more here - https://www.ucymachines.com/
Specifications
Manufacturer | Schnupp |
Model | 2000t Press |
Year | 2011 |
Condition | Used |
