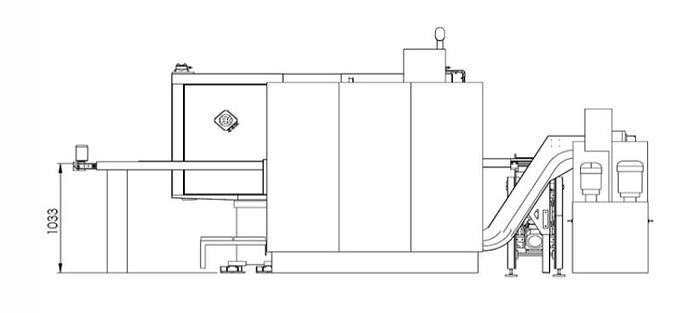

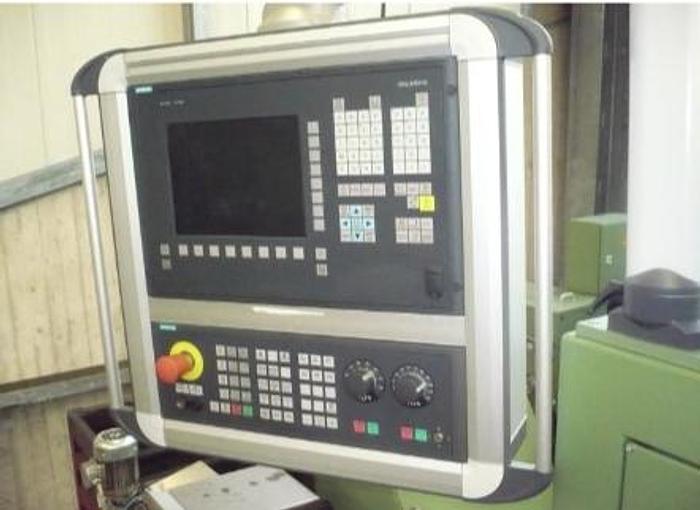

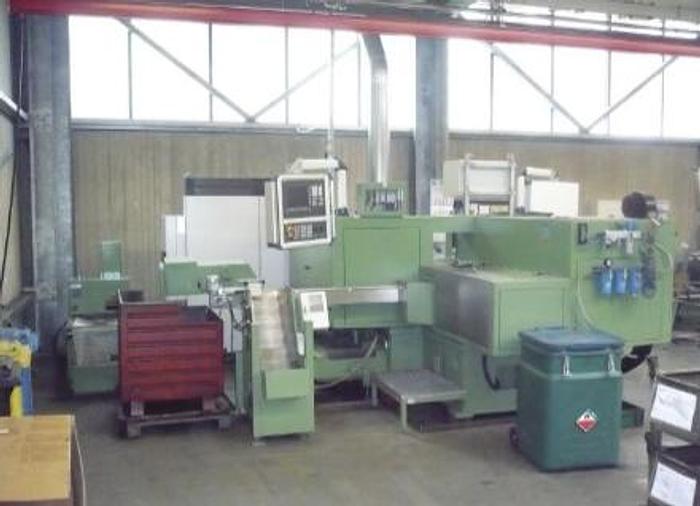

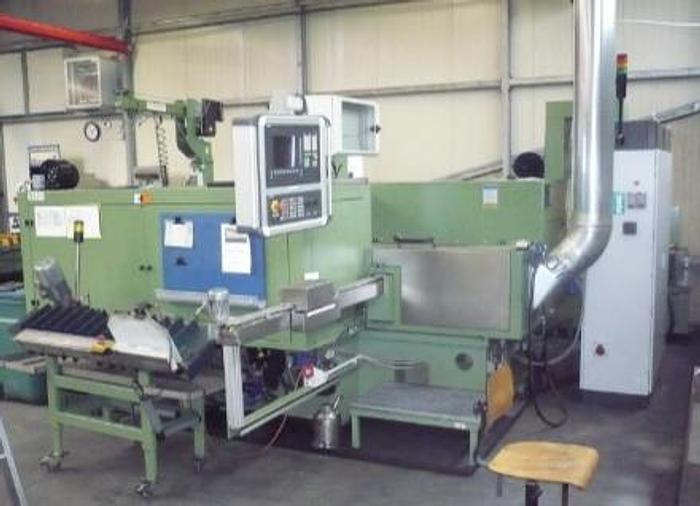

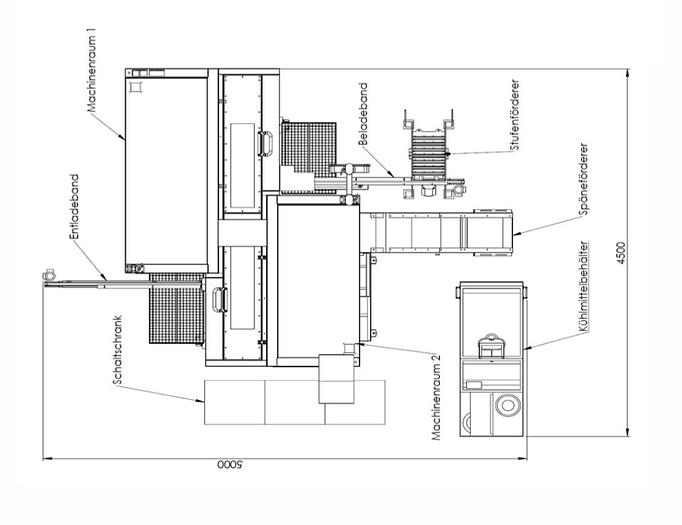

2012 HK-CON end working machine L2SDZ-6

Travel of the spindle:

X- axis (S1) 1280 mm

X- axis(S2) 960 mm

Z - axis 180 mm

Spindle size H S 3 2

 Drive power spindle motor13 KW 23 Nm

Drive power per spindle 23 Nm

max. spindle speed 6 0 0 rpm

max. tractive force of clamping cylinder at 80bar:

S1 6 0 0 rpm

S2 3000 daN, 1440 daN

S1 4 mm

S2 22mm

Drive power of the X-axes 16 Nm

ndrive power of the Z axes 6 Nm

 rapid traverse of the X-axis 60 m/min

 Rapid traverse of the Z-axis 30 m/min

Acceleration of X and Z axes 7 m/s?

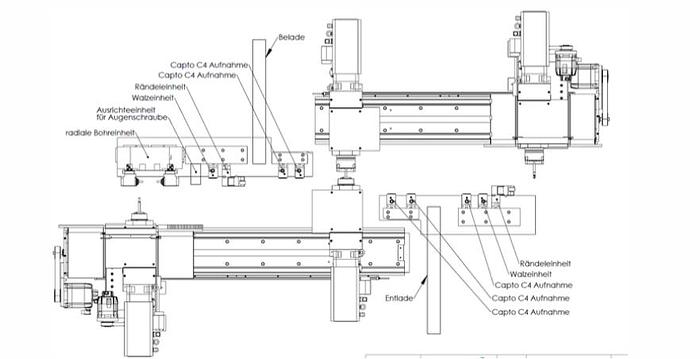

Tool holders for turning tools Capto C4

Driven tools from SWT

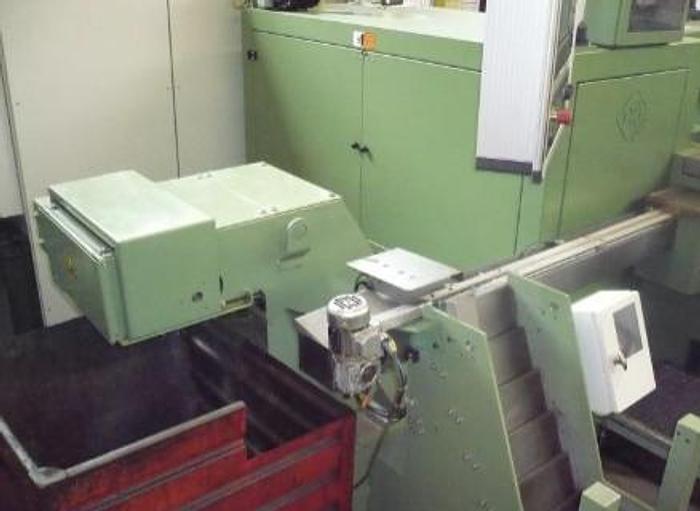

Chip conveyor from HK-CON

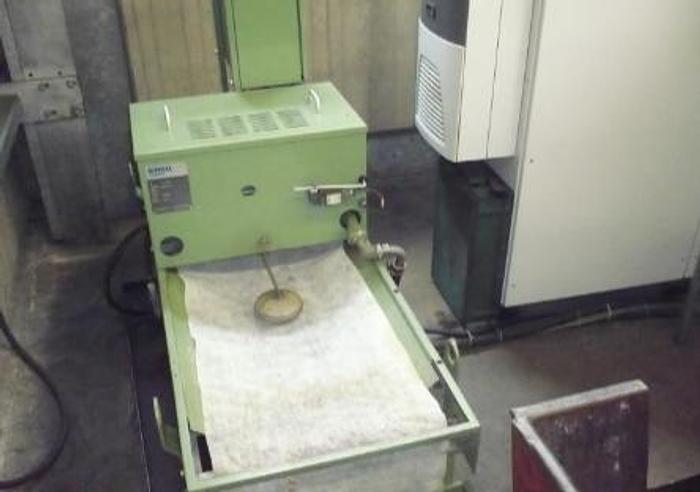

Coolant cleaning system from Knoll

Central lubrication system from Bielomatik

Hydraulic power unit from Bosch Rexroth

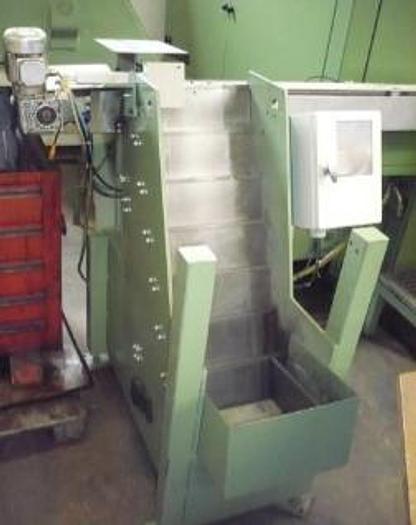

Parts elevator from HK-CON
