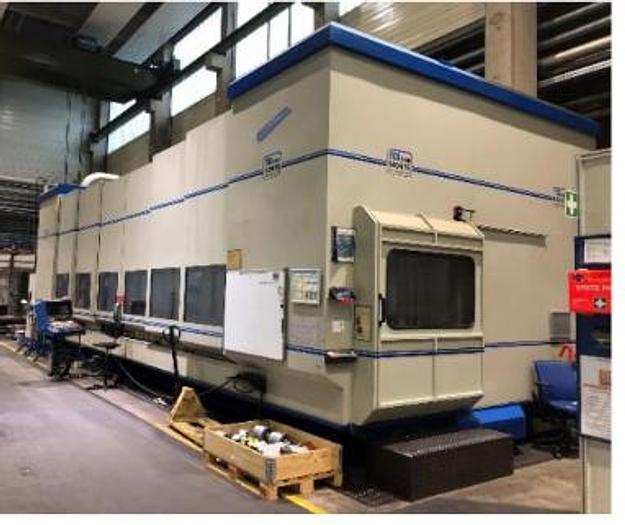

2002 Norte VS 1000
2002 Norte VS 1000
Bonn, Germany
Description
Manufacturer TCG GmbH NORTE machine tools
Machine type VS 1000
Year of manufacture 2002
Machine weight Approx. 28.000 kg
Transport width Approx. 12.000 mmm
Transport depth Approx. 4.800 mm
Transport height Approx. 4,500 mm
Machine structure
Pos.
No.
Designation
Assembly
Pos.
No.
Designation
Assembly
A1 Machine bed A10 Main control panel
A2 Cross slide A11 Electrical switch
cabinet
A3 Machine
stand
A12 Hydraulic power unit
A4 Headstock A13 Pneumatic unit
A5 drilling and
milling spindle
A14 Central lubrication
A6 Table A16 Cooling unit for
main spindle
A6a Rotary table A17 Chip conveyor
A6b Tailstock A18 Coolant system
A7 Cabin complete A19 Exhaust system
A8 Working area A20 Pick-up
Tool magazine
A9 Tool magazine
Working area:
Axis Travel
X 8,000 mm
Pendulum machining with vertical
spindle, 2 working areas: 2 x 3,765 mm
Y 1.000 mm
Z 1.000 mm
Feed drives:
Feed range and rapid traverse Protection class IP 64
Feed range for X and Y 1 - 20,000 mm/min
Feed range for Z 1 - 20,000 mm/min
Max. Feed force X-Y-Z axis 15,000 N
Rapid traverse for X, Y axis 20,000 mm
Rapid traverse for the Z axis 20,000 mm
Electrical data:
Voltage three-phase 400 /240 V
3 phases / MP / 50 Hz
Control voltage with transformer 24 V DC
Supply cable Min. 4 x 35 mm2
Main fuse Max. 200 A
Connected load Approx. 130 V kVA
Control Siemens SINUMERIK 840 D
Drives Siemens SIMODRIVE 611 D
Axis drives AC Digital control
Spindle drive AC Digital control
Clamping table:
Clamping area total, left 8,120 mm x 1,050 mm
Working area with 2 working areas (pendulum machining)
With vertical spindle, per work area 3,725 mm x 1,000 mm
7 T-slots DIN 650
6 clamping grooves, width 22 mm H12
1 alignment groove (middle groove), width 22 mm H7
Distance 150 mm
Permissible load 8,000 kg
Work spindle:
Inner bearing diameter 100 mm
Spindle bearing lubrication oil/air
Tool holder HSK-A 100
Tool pull-in force 45,000 N
Speed range 0 - 8,000 min-1
Automatic tool changer HSK A 100:
Type of tool magazine Chain magazine
Chain drive Controlled AC digital servo motor
Mounting position seen from the front Centered in the column
Tool change point Variable in X-, Y- and Z- axis
Tool loading Front side via work spindle and alternatively via Pick-Up-
station
Number of magazine places 90
Tool shank HSK- A 100
Coding Variable space coding
Max. Tool diameter with
1 magazine position 110 mm
Max. tool diameter Max. tool diameter with
3 magazine positions 180 mm
Max. tool length Tool length 400 mm
Find more here - https://www.ucymachines.com/
Specifications
Manufacturer | Norte |
Model | VS 1000 |
Year | 2002 |
Condition | Used |
