2016 Handling Tech Eromobil ER400t ND
2016 Handling Tech Eromobil ER400t ND
Kassel, Germany
Description

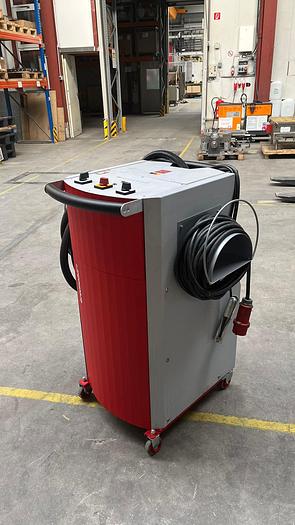

Eromobil - ER400t ND
mobile erosion machine:
Metal EDM machine type eromobil er400t-ND with accessories.
For threads from M2 to approx. M40
Year of manufacture 2016
We bought it new in 2016, but very rarely used it. Therefore, we assume that it has a maximum of 20 operating hours "on the clock". We can therefore say that it is as good as new.
The accessories consist of:

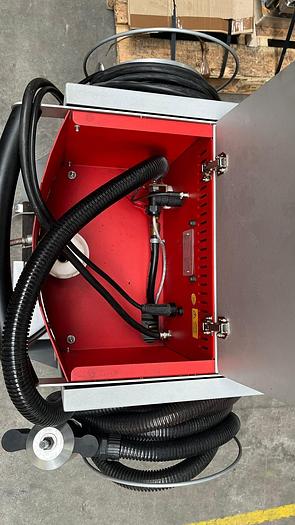

Generator with supply cable 3m with Cekon connection plug, burning transformer three-phase current 400V, 50hz, 16A, 6kVA, with storage compartment for oscillating head, supply hose and measuring cable.

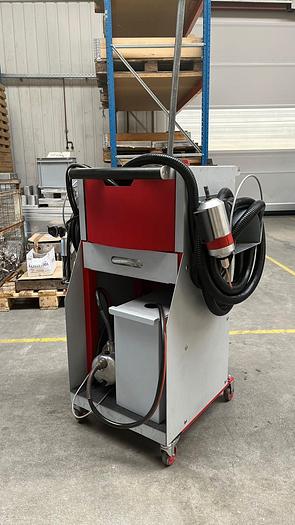

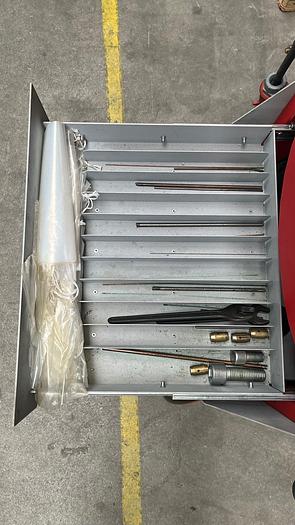

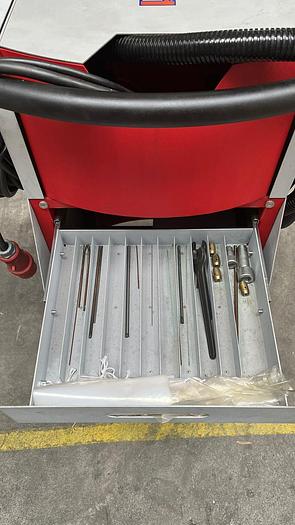

Trolley with pull-out tool drawer with interior compartment division, smooth-running castors are lockable, storage space for coolant pump and tank
Coolant tank with two chambers for supply and return flow
Coolant pump 230V AC, 50 Hz, with 2m suction and pressure hose
oscillating head with cylindrical shank Ø 12mm
open-end wrench SW 19mm
open-end wrench SW 24mm
splash protection bag
Operating manual incl. declaration of conformity
Supply hose black, 7,5m from generator to oscillating head
Ground cable special length 7,5m with quick coupling and workpiece clamp
Vibration head holder MK-3 directly in quill
collets Ø 1,0mm, 1,5mm, 2,0mm, 4,0mm, 6,0mm
Find more here - https://www.ucymachines.com/
Specifications
Manufacturer | Handling Tech |
Model | Eromobil ER400t ND |
Year | 2016 |
Condition | Used |
