2008 MCM Flexible Manufacturing System

Complete liquidation of a precision

contract manufacturing facility for cubic

workpieces up to :

2.600 mm x 1.700 mm x 1.400mm

The MCM FFS with its large tool magazine (998 HSK 100 tool positions) is particularly noteworthy because this system was ideally designed for job shop production with batch size "1".

History

 For strategic reasons, contract manufacturing was discontinued at the end of 2020.

was discontinued.

 The machines were used in the subcontracting of

high-precision, cubic workpieces such as : Wind-

Power gearboxes, machine beds and stands, harvester axles,

machine pallets, etc.

 The production was absolutely process-safe built up and was subject to a TQC - supervision (Total Quality Control).

 With the machines still available, the original production method can be

production method can be taken over / continued, if

desired.

 The machines are still assembled on site.

Special features and advantages

 All machines have been divided into two separate FFS ( Flexible

Manufacturing System ) with fully automatic pallet feeding

and were in operation until the end of the plant.

 Machining accuracies achieved were machine

and not operator-dependent.

 With the machines that are still available, it is possible to continue the practiced

separation, i.e. rough and fine machining, can be continued.

can be continued.

 The following applies to the machines for sale :

"The whole is more than the sum of its parts".

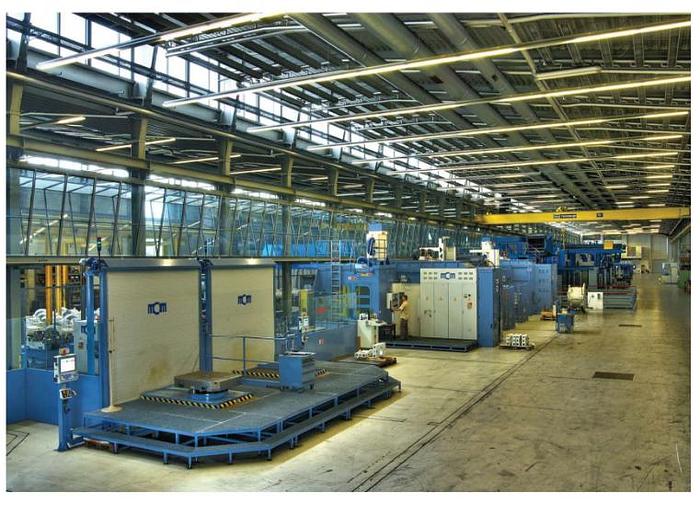

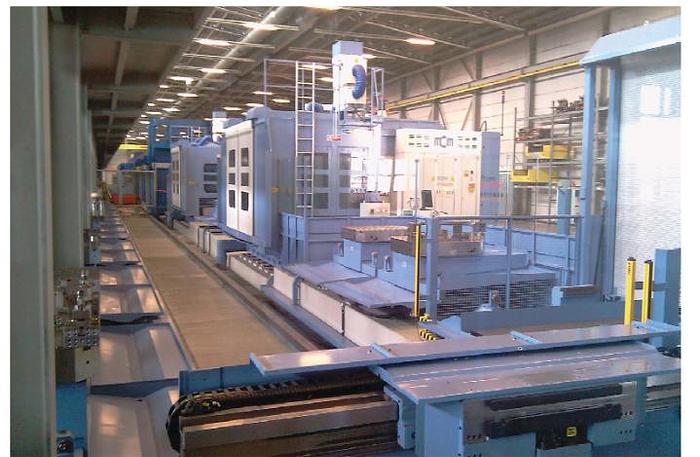

Year of construction 2008 , FFS consisting of two machines with 20

pallets and tool magazine with 998 places HSK A-100 ,

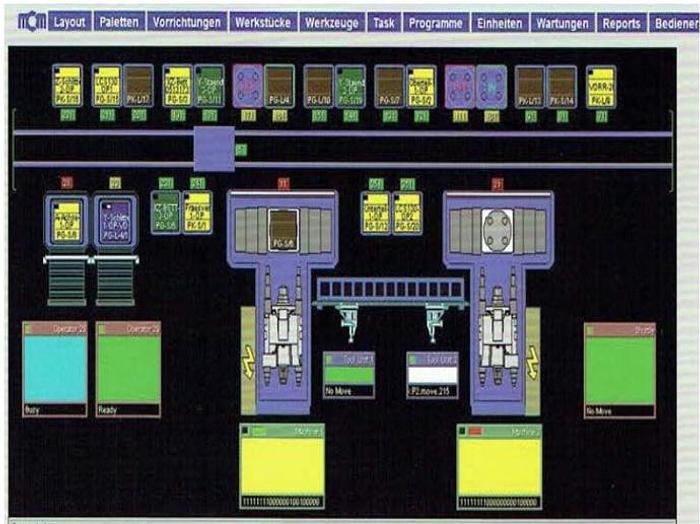

FANUC CNC and jFMX cell master computer.

 year of construction 1990 - 1991 all with Siemens CNC

 1 x DIXI 560 ( needs new control )

 2 x Waldrich Coburg milling machines

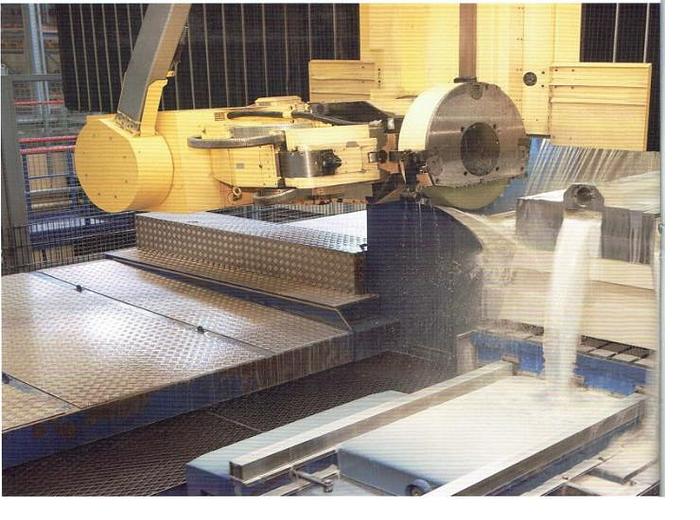

 1 x Waldrich Coburg grinding

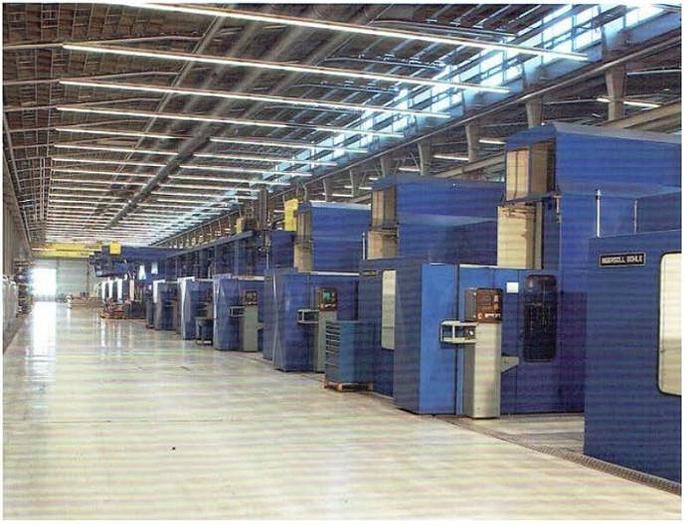

 3 x Ingersoll Bohle milling machines

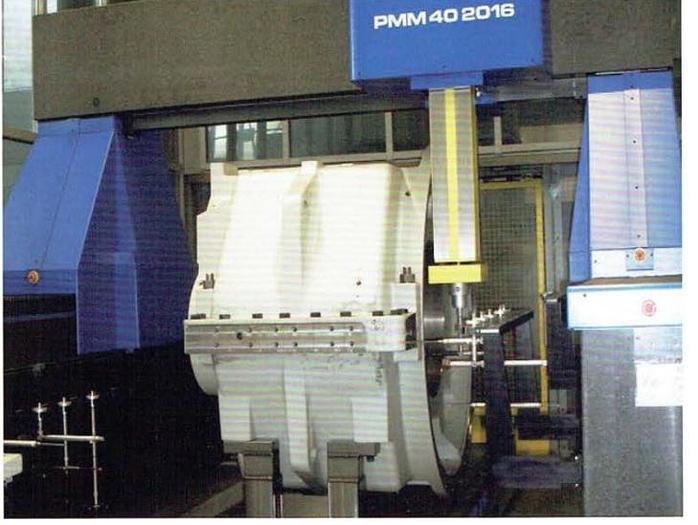

 1 x measuring machine PMM402016

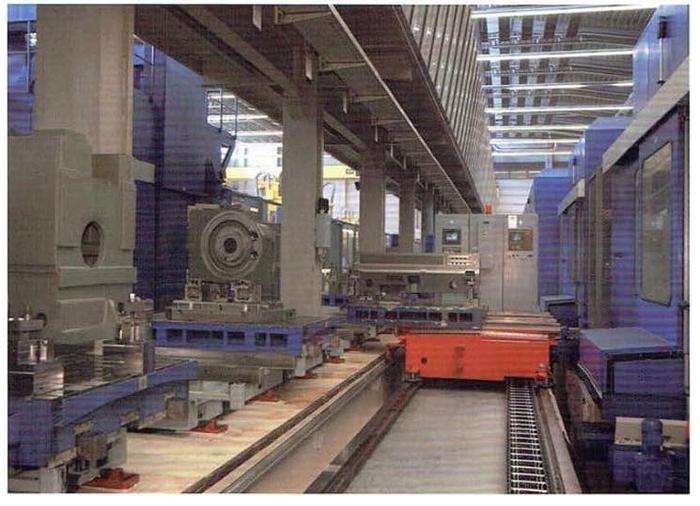

 1 x transport system Waldrich Coburg

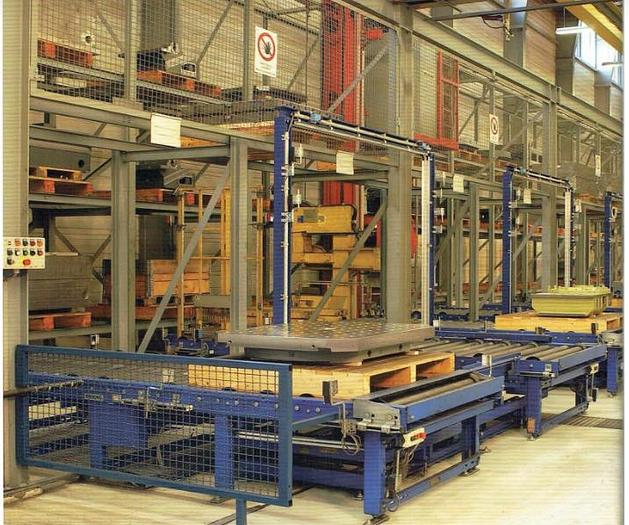

 1 x rack system Demag

 Detailed descriptions are available on request.
