2009 Komptech Crambo 6000 E
2009 Komptech Crambo 6000 E
Stuttgart, Germany
Description

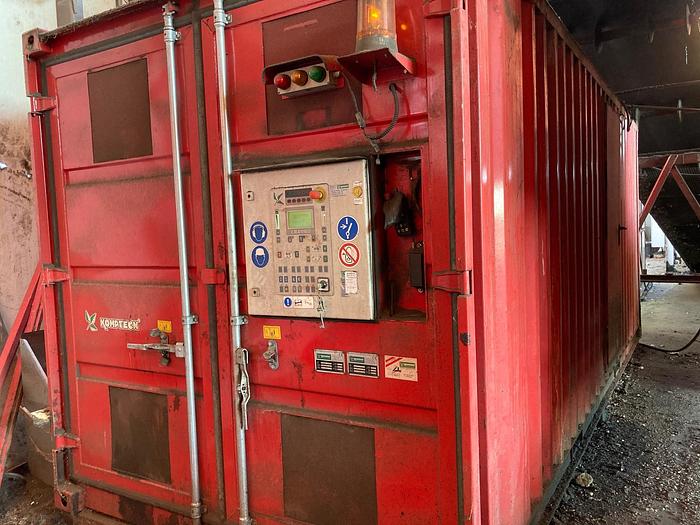

Processing plant for waste wood, roofing felt and other materials. consisting of pre-shredder Crambo 6000 Elektro (hydraulic drive power station with 320 KW electric motor, screen inserts for defined grain sizes, shafts and bearings overhauled in June `22 for more than 50.000,- €), conveying system for feed and discharge, 2 overbelt magnetic separators (Steinert), 3-fraction screen Multistar 3 SE, 2-stage air classifier Hurrikan.
Operating hours: 12800
Plant in operational condition for a throughput capacity up to 30 to/h (depending on material), Available from 10/2022.

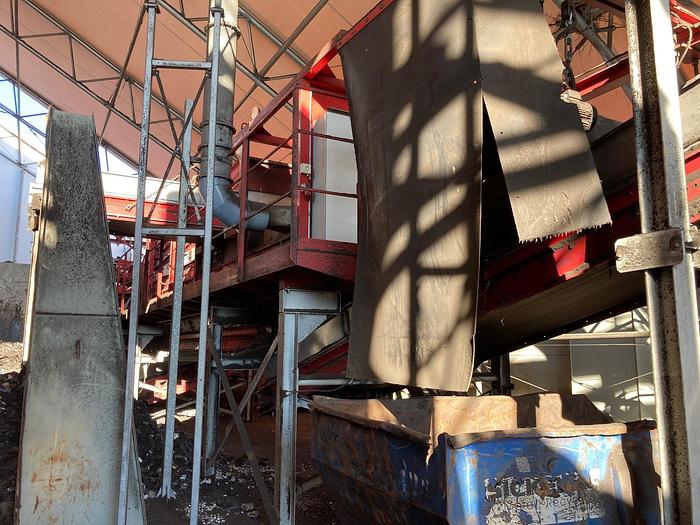

Plant description:
Material feeding with wheel loader or excavator onto the CRAMBO 6000.
CRAMBO is a sliding and reversible conveyor belt. Depending on the requirements it is
the pre-shredded material either directly into an open bunker or to the downstream screening technology.
downstream screening technology.
The starscreen machine divides the material stream into the following 3 partial fractions:
1. fine fraction 0-20 mm.
2. medium fraction 20-120 mm.
3. coarse fraction > 120 mm.
The separated materials are temporarily stored in on-site, open bunkers. There they are
They are available for further transport. For the discharge of the light fractions, after the

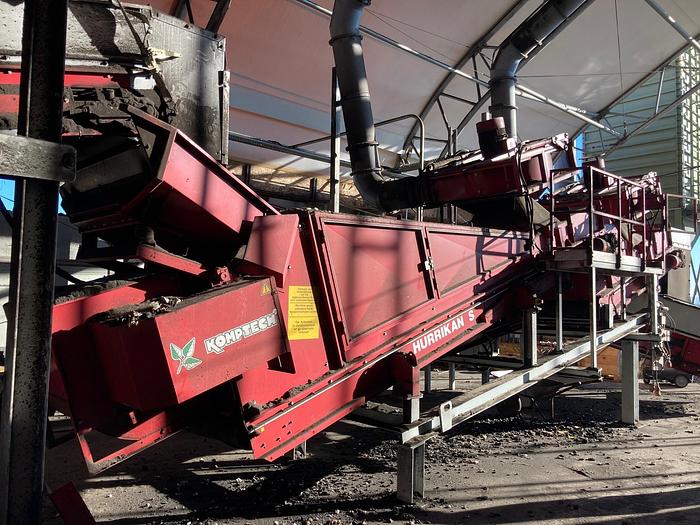

After the starscreen deck for the medium grain, an air classifier is mounted directly on the discharge. For discharging the
films in the center grain, the overflow is fed to another air classifier. This consists of a
separate hurricane. The extracted light materials are fed via conveying pipelines to an on-site container.
container provided by the customer. This is covered with a fine-mesh net. The exhaust air
is not fed to a dedusting system.

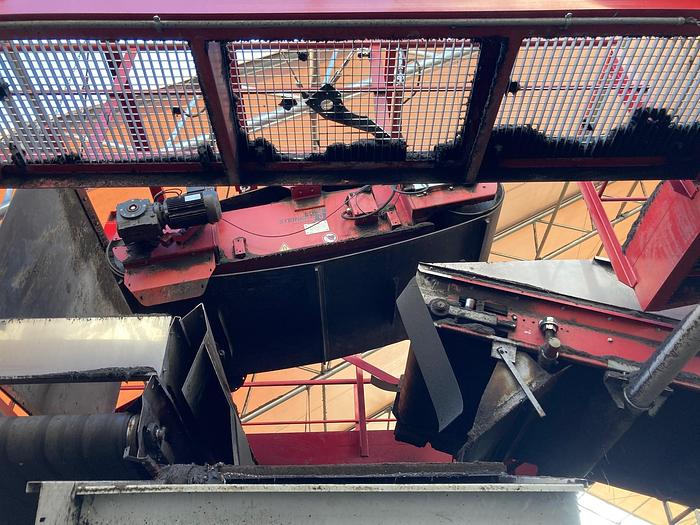

In order to achieve an enrichment of the separated FE material, the following sections are
are equipped with an overband magnet:
a) Draw frame to the star screen
b) Medium grain section after the starscreen
The metals are collected in separate containers.
Find more here - https://www.ucymachines.com/
Specifications
Manufacturer | Komptech |
Model | Crambo 6000 E |
Year | 2009 |
Condition | Used |
