Voith Production line PM10
Voith Production line PM10
Contact us for price
Munich, Germany
Description
Production line PM10
The line was commissioned in 1982 and was used for the production of coated graphic papers.
The scope of supply includes a complete paper production line consisting of:

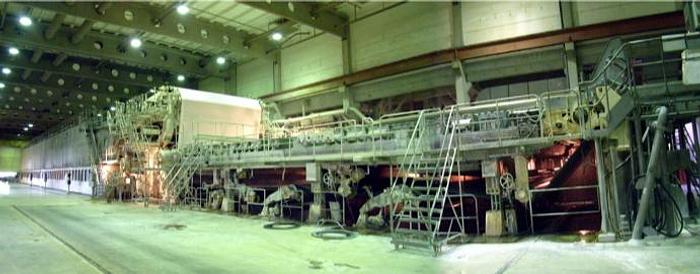

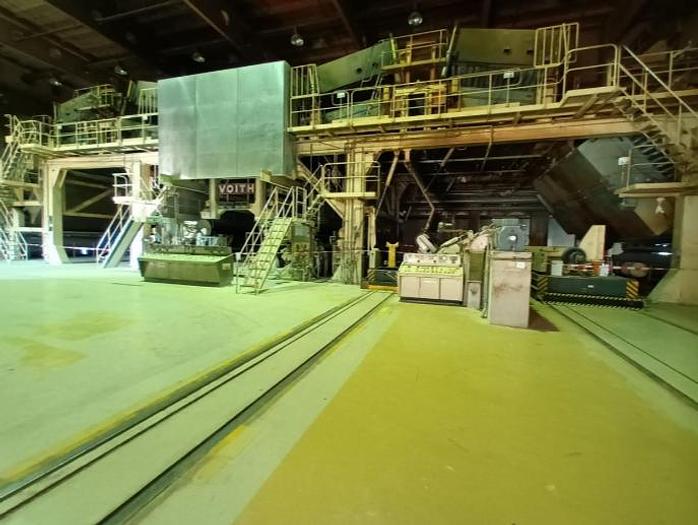

1. Fourdrinier paper machine
Manufacturer: Voith
Year of manufacture/conversion: 1982 / 2001 / 2006 / 2012
Operating speed: 700 - 1100 m/min.
Working width: 5,88 m (after trim)
Production program: GW / Pulp / DIP
Basis weight range: 26 -70 gsm
Products: LWC rotogravure and offset
Production capacity: 150,000 to/a
Type: Headbox ModuleJet
Wire shaker
Duo Centri 2 (3Nips)
5 drying groups
Hard Nip Calender
Pope reeler
Electric supply AC 400/690 V
Electric drives DC 500V
2. Stock preparation system, vacuum system, heat recovery and bleaching line are
included!
3. Coating machine
Manufacturer: Voith
Year of manufacture: 1982
Coating Type: 2 Blade coaters
Operating speed max.: 1250 m/min
Working width: 5,78 m (reeler)
Basis weight range: 26 -70 gsm
Application weight: 2 * 18gsm
Dryer: IR gas fired, Air Dryer,
steam heated Cylinder
Electric supply: AC 400/690 V
Electric drives: DC 500V

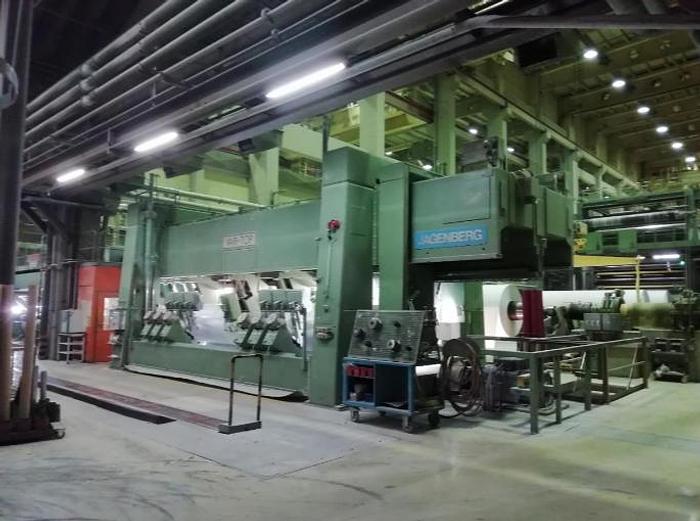

4. 2 Prewinders
5. 2 Supercalenders (only for scrapping)
6. 3 Winders (2 production winders, 1 Doctor winder)
7. Pipes, tanks, towers and valves
8. Electrical equipment including transformers
9. 2 Overhead cranes
10. All spare parts including rolls
Find more here - https://www.ucymachines.com/
Specifications
Manufacturer | Voith |
Model | Production line PM10 |
Condition | Used |
