1993 Weeke BTT30/CNC

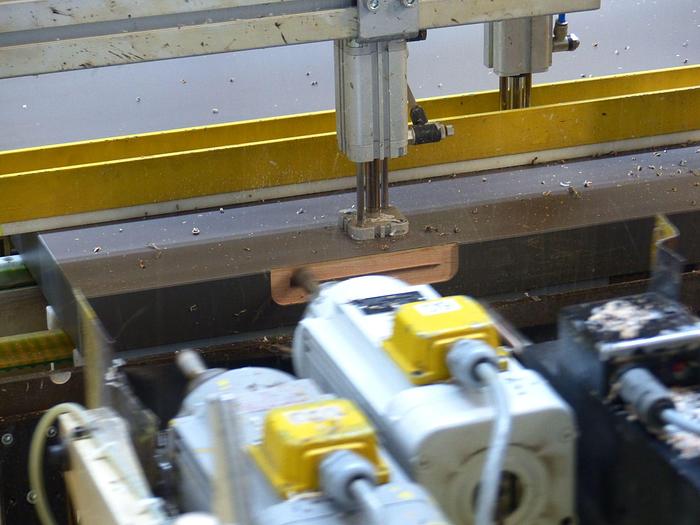

Milling line Weeke BTT30/CNC

Characteristics

Manufacturer: Gustav Weeke Maschinenbau GmbH

Year of manufacture: 1993

Type: Milling line for lock and strip

dimensions: 13595 mm × 4456 mm

max. workpiece dimensions: 3000 mm × 1350 mm × 72 mm

(of which not machinable: . backset dimensions below 40 mm or above 120 mm)

cycle time standard door: ~ 50 seconds

Machine in operation until approx. 09/2022

3 machines:

 Lock machine with 3 units:

 upper sprocket-hole unit consisting of cutter and drill

 lower sprocket-hole unit made of cutter and drill

 lock case unit from lock case cutter, face milling cutter and drill bit

 shifting & aligning unit

 belt machine

 right turning cutter

 left turning cutter

 Drill for screw holes

 Drill for trunnion holes

 Aggregate for assembly of single-drill bands (angle adjustable)

 Drill

 Insertion unit with 2 magazines for tapes type V0020 and V0026

Programming

 NUM control of type 1080

 Storage of 9999 programs for band or

lock processing

 Setup and recall of a manufacturing program

via adapted application, which communicates serially with the

NC unit

Exemplary screenshots of this application in

Figures 3 - 10

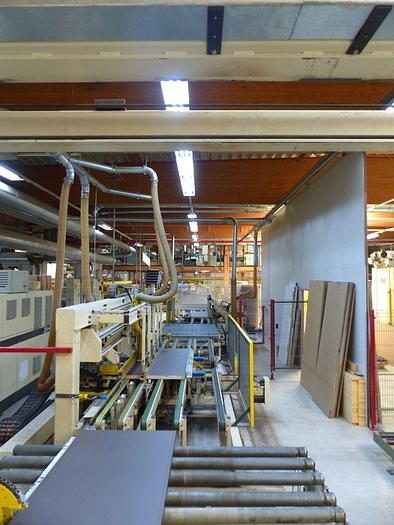

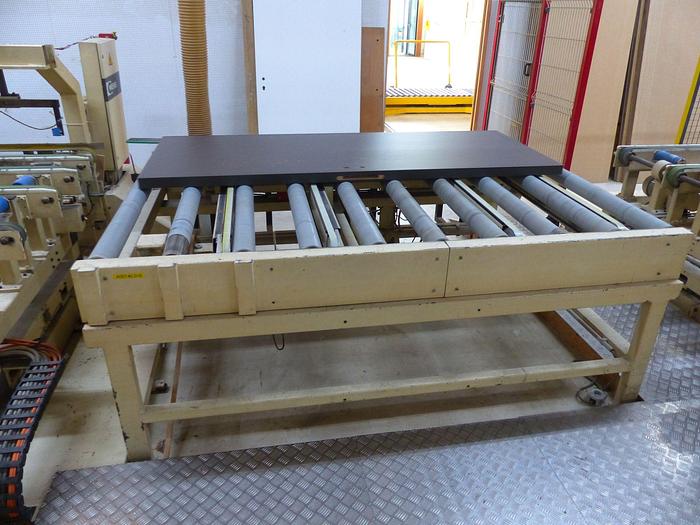

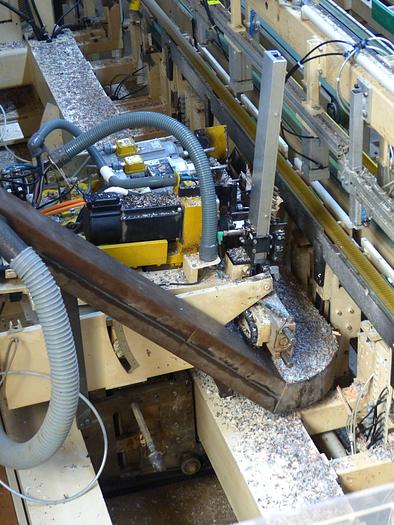

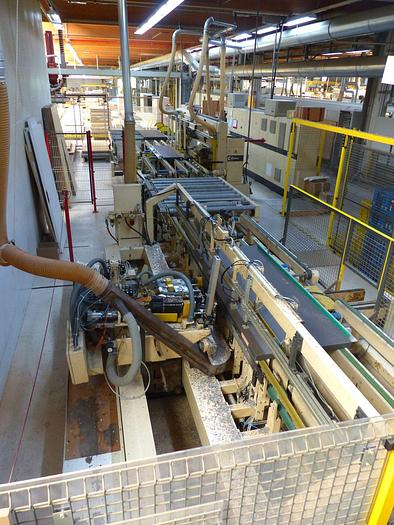

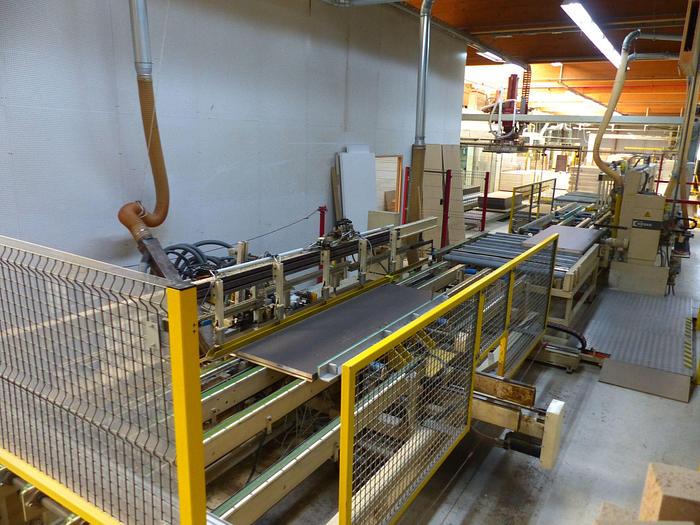

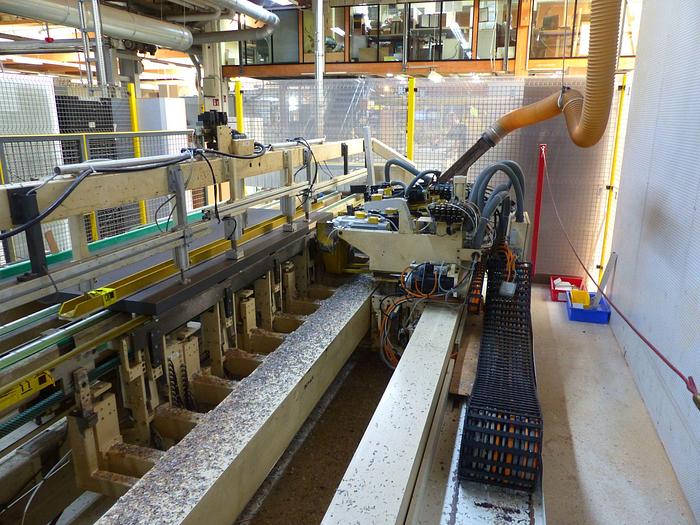

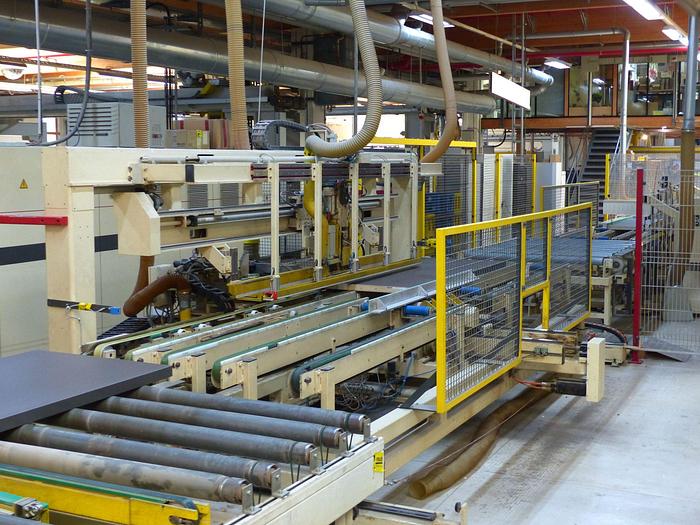

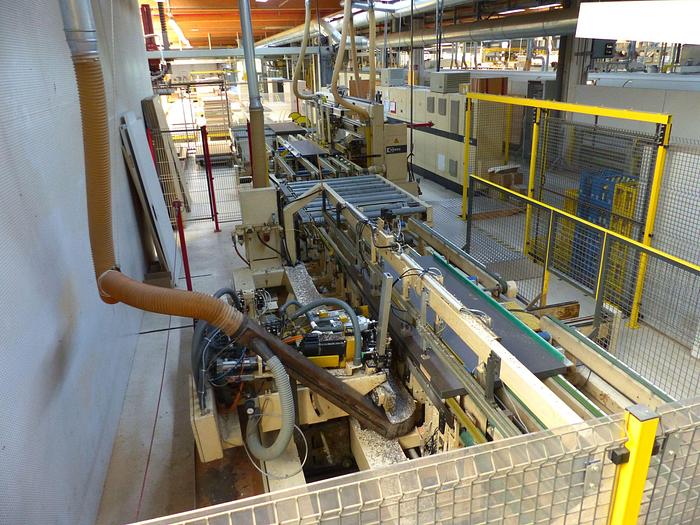

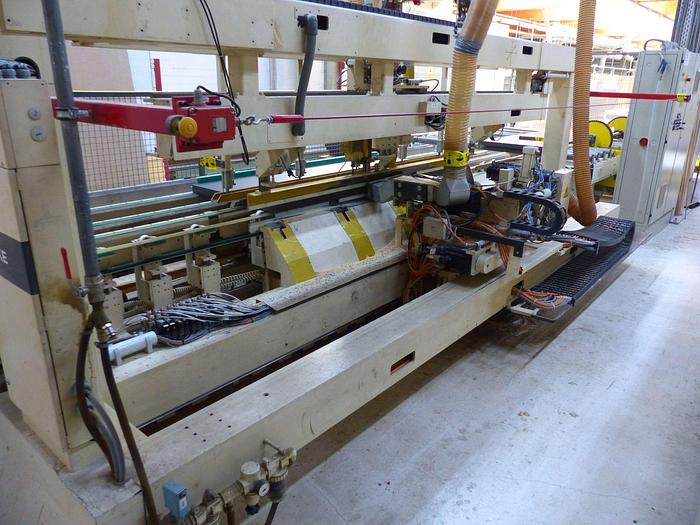

Photographs of the plant in figures 12 - 17
