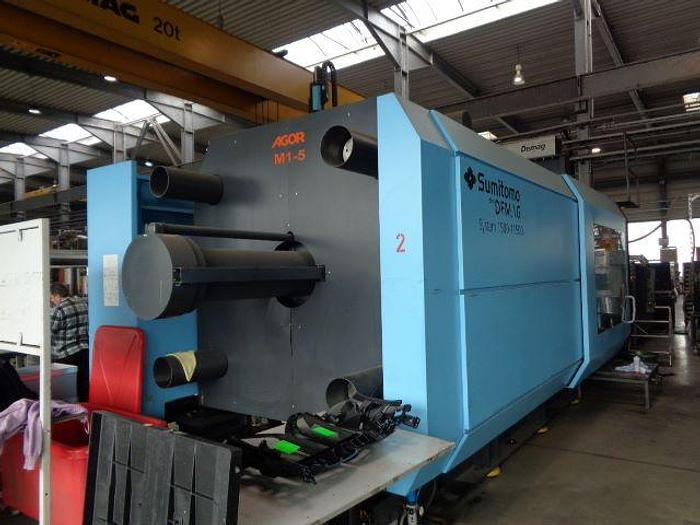

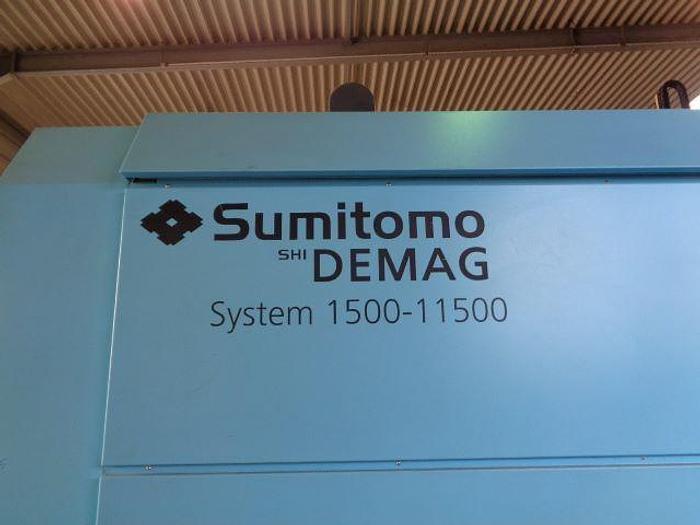

2012 Demag System 1500/1500-11500

Demag 1500t 2K

Hours 862965 / 35870

The Sumitomo Demag System 1500 is a high-performance injection molding machine that was first introduced in 2011. It is designed to deliver fast, precise, and reliable production of plastic parts in a wide range of applications, from automotive and packaging to medical and consumer goods.

Technical Details:

- Clamping force: 1500 tons

- Injection volume: 15,000 cm³

- Maximum shot weight: 13,500 grams

- Distance between tie bars (HxV): 1600 mm x 1400 mm

- Mold height (min-max): 700 mm - 1500 mm

- Platen size (HxV): 2200 mm x 2000 mm

- Ejector force: 235 kN

- Ejector stroke: 400 mm

- Screw diameter: 140 mm

- Screw L/D ratio: 22.7

- Injection pressure: 1938 bar

- Injection rate: 1552 cm³/s

- Maximum screw speed: 90 rpm

Machine Description:

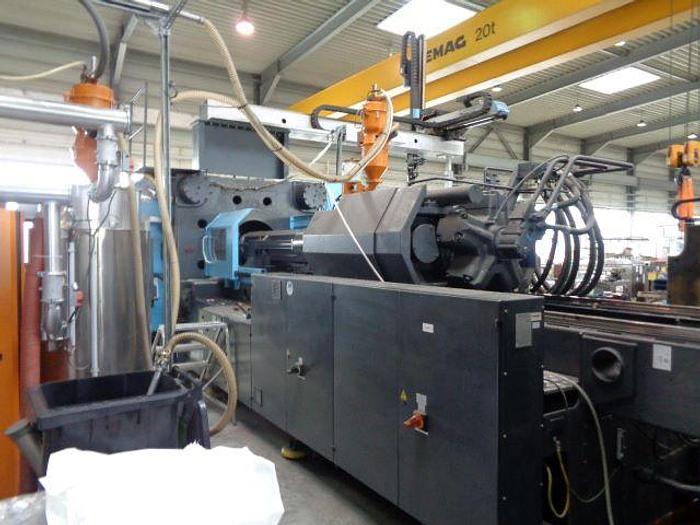

The Sumitomo Demag System 1500 is a large, fully-electric injection molding machine that features advanced servo drive technology for high precision and energy efficiency. The machine is built on a sturdy, heavy-duty frame that provides excellent rigidity and stability during operation.

The clamping unit of the System 1500 is designed for fast and precise mold closing and opening. It features a 5-point double toggle system that ensures uniform distribution of the clamping force over the entire mold surface. The mold platens are guided by high-precision linear guides that provide smooth and accurate movement.

The injection unit of the System 1500 is equipped with a high-performance servo motor that drives a large, twin-screw extruder. The extruder is designed to deliver high plasticizing rates and consistent melt quality, even for high viscosity and shear sensitive materials. The injection unit also features a high-precision linear transducer that measures the screw position and velocity in real-time, ensuring precise control of the injection process.

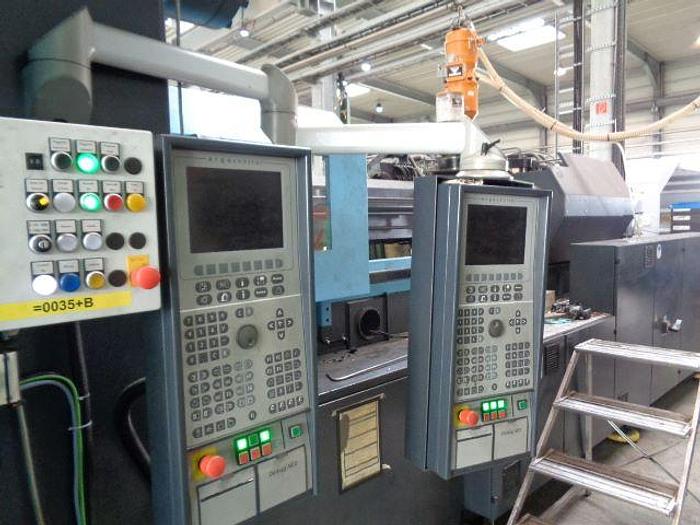

The System 1500 is equipped with a user-friendly control system that allows for easy and intuitive operation. The control system features a large touch screen display that provides real-time monitoring and control of all machine parameters. It also features advanced diagnostic functions that help operators quickly identify and troubleshoot any issues that may arise.

Overall, the Sumitomo Demag System 1500 is a powerful and reliable injection molding machine that is well-suited for high-volume production of large plastic parts. Its advanced features and precise control capabilities make it a popular choice for a wide range of applications in various industries.
