2008 Lidköping 4B

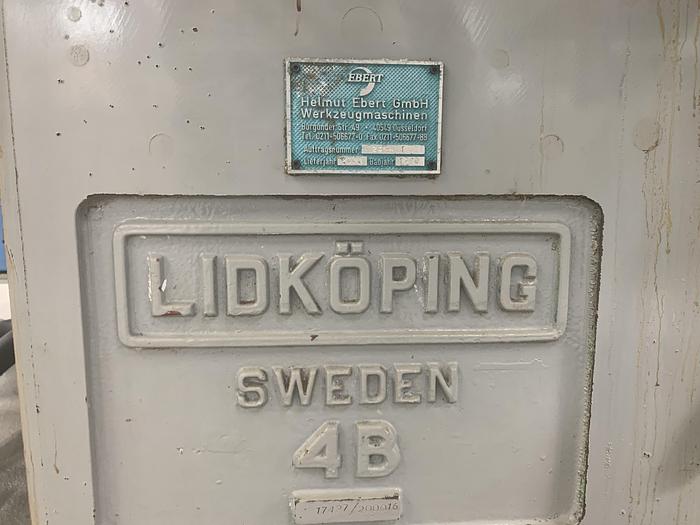

Lidköping 4B. the Liköping 4B is a centerless plunge grinding machine. Shafts were ground on this machine.

BJ.1980

Machine was overhauled in 2008.

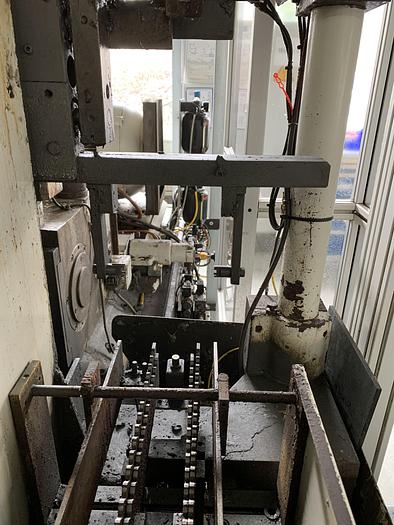

The machine is equipped for plunge grinding and has a hydraulic gantry loader.

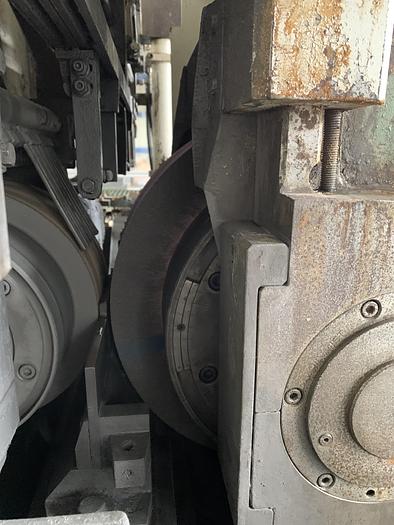

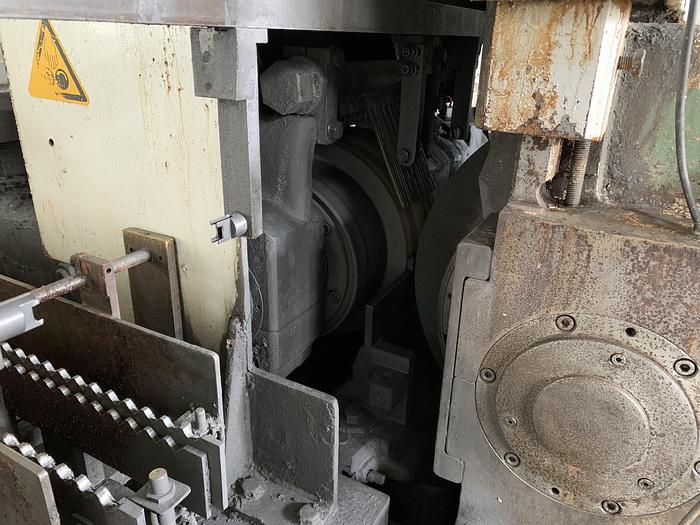

The grinding wheel is mechanically dressed by a copy ruler.

The regulating wheel is also mechanically dressed.

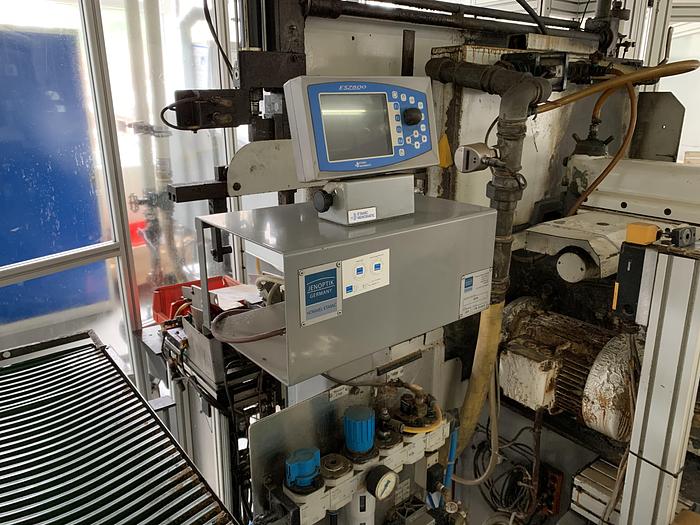

The machine is equipped with an Etamic Movomatic ESZ 800 measuring control.

Grinding wheel 504 mm outer diameter

Max. Width 254 mm, with offset 305 mm

Bore 304,8 mm

regulating wheel 330 mm outer diameter

Max. Width 254 mm, with offset 305 mm

Bore 203 mm

Workpieces from 3 mm to 80 mm outside diameter

Coolant used: emulsion
