2000 DECKEL MAHO DMC 63 V
2000 DECKEL MAHO DMC 63 V
Regensburg, Germany
Description
Vertical machining center DMC 63 V
Year of manufacture 2000
X = 630 mm, Y = 500 mm, Z = 500 mm
speed range 1 - 10.000 rpm
9 / 13 kW at 100 / 40 % ED
tool magazine with 24 places

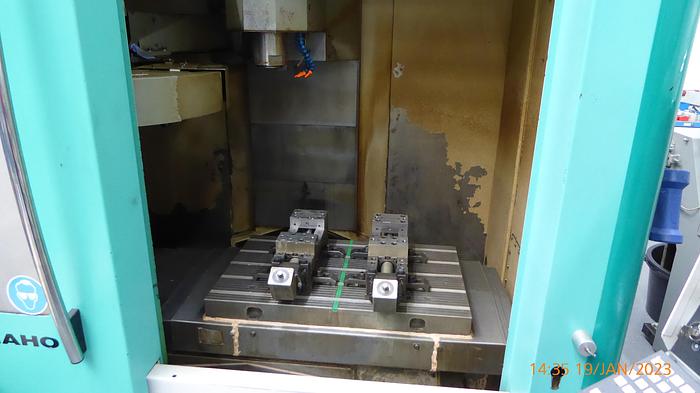

table 800 x 500 mm,
electron. handwheel, 3D path control
design 400 V, 50/60 Hz
3D contouring control SINUMERIK 810D
User interface ShopMil
Extension package DMG-Netservice for machine networks per machine
Control: Siemens SINUMERIK
Drill breakage control and tool length and diameter measurement in the working area via laser
Direct path measuring system
Positioning accuracy according to VDI/DGQ 3441
in X-, Y-, Z-axis 0.010mm absolute
Internal cooling lubricant supply 15 bar centrally through spindle (20l/min, 15 bar)
Cooling lubricant system
Cooling unit blowing air (from outside via 2 pipes)
Oil mist separator
operating mode 4
Gross weight [cm] approx. 4,900 kg
Dimensions [cm] 330 x 242 x 270
Machine accessories in a box:
Vices and various tool holders
(see listing)
dimensions 81x60x50
15x ER16 with collet 6
6x ER16 with collet 4
4x ER16 with collet 3
3x ER16 with collet 10
2x ER16 with collet 7
3x ER16 with collet 2
1x ER16 with collet 8
1x ER16 with collet 1,5
1x ER16 with collet 5
1x ER16 with collet 25
1x ER16 with collet 9
2x ER16 Without collet
6x SK40 with Ø12
7x SK40 with Ø16
7x SK40 with Ø10
10x SK40 with Ø6
1x SK40x100 with Ø6
5x SK40 with Ø8
1x SK40x100 with Ø8
4x SK63 with Ø20
1x SK20 with Ø20
2x SK40 with Ø14
7x M3-M12 compensating chuck
6x ER25
2x drill chuck
Find more here - https://www.ucymachines.com/
Specifications
Manufacturer | DECKEL MAHO |
Model | DMC 63 V |
Year | 2000 |
Condition | Used |
