2000 Famup MC60E

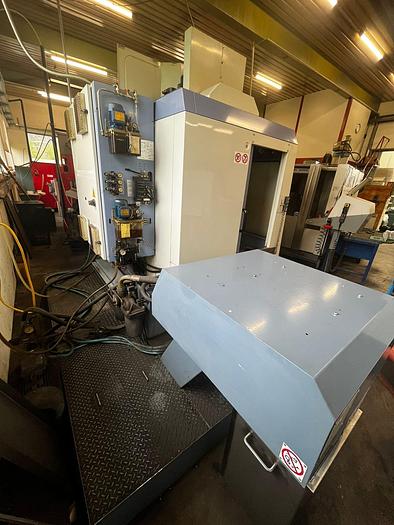

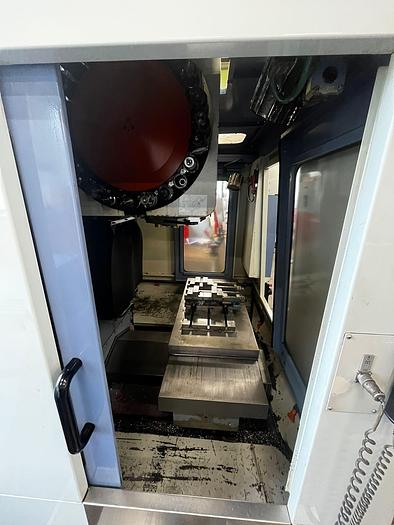

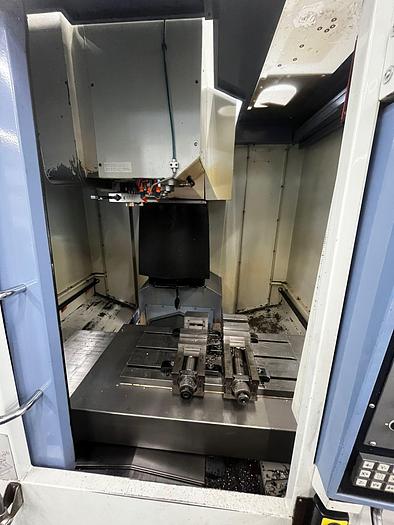

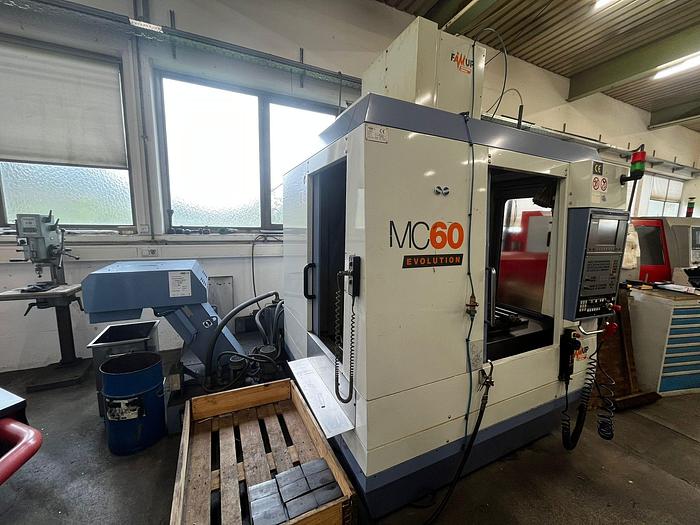

Famup MC60E

Year of manufacture of the machine is 2000, operating hours/programms run 5395 h

Paths: -x axis 600mm

       -Y axis 400mm

       -Z axis 570mm

tool places 24 pcs, SK40

Speed max 10000rpm, internal cooling, high pressure pump 30bar through the spindle,

year 2000, weight 3900 Kg,

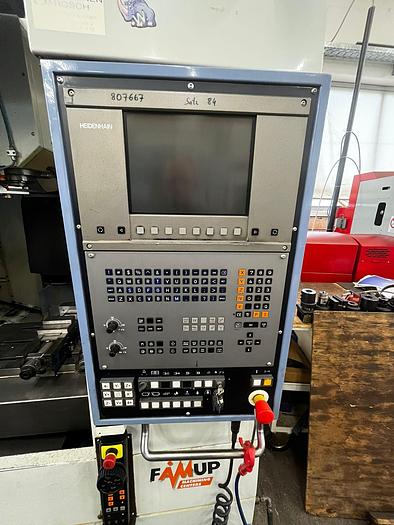

• Control system: Fanuc or Heidenhain
• Spindle speed: 8,000 RPM
• Spindle motor power: 11 kW
• X-axis travel: 600 mm
• Y-axis travel: 400 mm
• Z-axis travel: 450 mm
• Table dimensions: 900 mm x 450 mm
• Maximum table load: 400 kg
• T-slot size: 14 mm
• Tool capacity: 20 tools (24 tools optional)
• Tool holder: BT 40
• Rapid traverse rate: 30 m/min
• Cutting feed rate: 1-10,000 mm/min
• Machine weight: 4,000 kg
• Machine dimensions (L x W x H): 2,200 mm x 2,050 mm x 2,400 mm

It's worth noting that these specifications may vary depending on the specific model and year of production of the Famup MC60E milling center.

The Famup MC60E is a vertical milling center that was manufactured by Famup, an Italian company that specializes in the production of high-quality milling machines. The MC60E is a compact and versatile machine that is suitable for a wide range of milling operations.

The machine features a vertical spindle that is powered by a high-performance motor, which enables it to operate at high speeds while maintaining accuracy and precision. The spindle speed can be adjusted to meet the needs of different milling operations, and the machine is equipped with a wide range of cutting tools that can be used for various materials.

The MC60E has a large worktable that provides ample space for large workpieces and allows for easy loading and unloading of materials. The table is equipped with precision linear guides that ensure smooth and accurate movement, and it can be tilted to an angle of up to 45 degrees to enable 3D milling operations.

The machine is also equipped with a range of advanced features that enhance its performance and ease of use. These include a user-friendly control panel, a high-speed automatic tool changer, and a coolant system that ensures efficient cooling of the cutting tools and workpiece.

Overall, the Famup MC60E is a high-quality milling center that is suitable for a wide range of milling operations. Its compact size, high-speed spindle, and advanced features make it an ideal choice for small to medium-sized manufacturing companies looking for a reliable and efficient milling machine.
