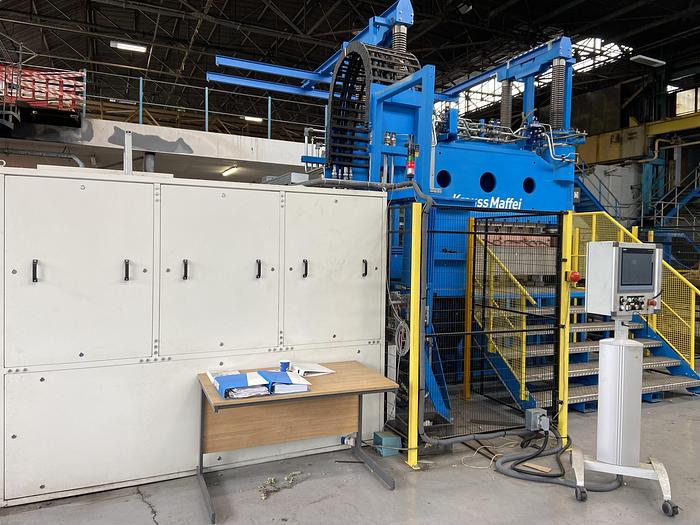

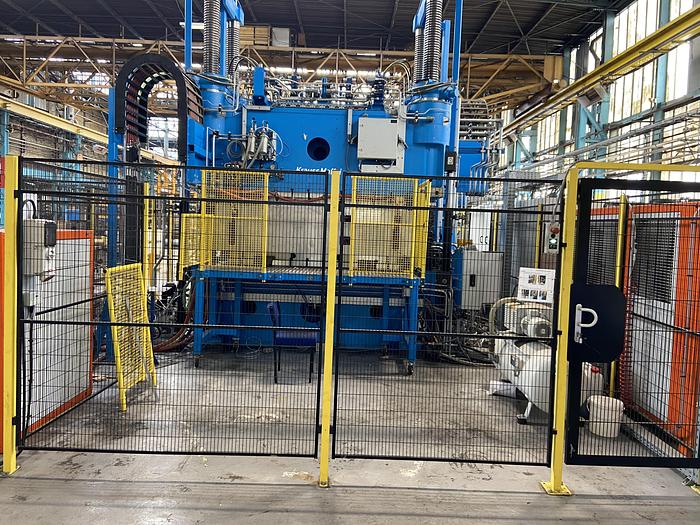

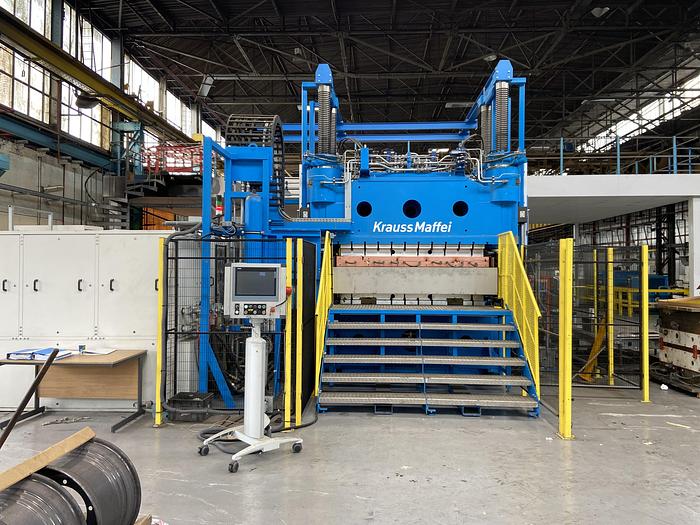

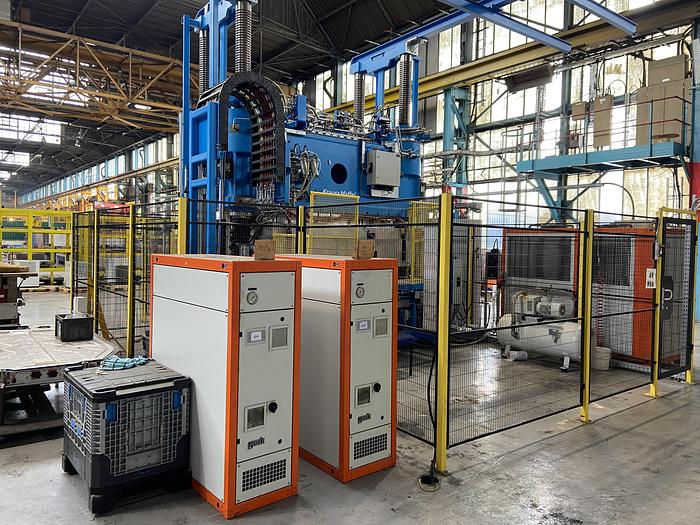

2015 KRAUSS MAFFEI SFT MX

The press has low usage as used as a trial machine. It is for sale via other parties

 it is like new and had little hours usage

The SFT MX mold carrier described below is a hydraulically controlled mold carrier and is designed for manipulating polyurethane (PUR) foam molds.

Year of manufacture: 2015 with add-on 2019

Designation: FT MX 25.16.8000.0.0 mold carrier unit Mold carrier 4916024 Wiring Diagram 20007473 Mold Carrier Hydrauilc 4919288

KraussMaffei Technologies GmbH

Specifications

Mold carrier weight 50 000 kg

Min floor bearing capacity / working load 9 000 kg/m²

Min thickness of concrete 250 mm

Min compressive strength of floor machine footprints 1,3 N/mm³

Quality of concrete DINEN 206 C20/25

Max opening force 800 kN

Max closing speed 800 mm/s

Max hydraulic working pressure 245 bar

2.4.2 Mold to be handled

Max. mold weight 20 000 kg

Length max/min 2 500/790 mm

Width max/min 1 600/500 mm

Height min. 500 mm

2.4.3 Hydraulic unit

Tank volume 2 000 l

Max. operating pressure 250 bar

Motor 110kW

Conveyor capability 377 + 100 l/min

2.4.4 Operating media

Cooling water 60 l/min, 10-15 °C

Pressurized air 6 bars, dry / oilless

Electrical information

Power supply 3-phase 380V, 50 Hz

Control voltage 24 VDC

Total power 200 kW

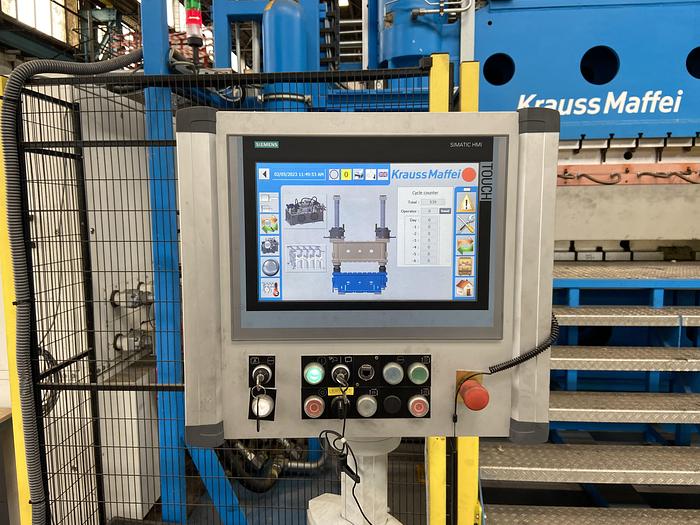

Control system Siemens S7/300 24 V PLC

The Krauss Maffei SFT MX is a high-performance injection molding machine that was first introduced in 2015. It is designed for precision molding of large and complex parts, and it features a modular construction that allows for easy customization to meet specific production needs.

The SFT MX incorporates advanced technologies to ensure high efficiency, accuracy, and repeatability. It has a fast and precise toggle clamp that delivers high closing and opening speeds, and it is equipped with a high-performance injection unit that ensures uniform melt distribution and fast cycle times.

The machine also features a user-friendly control system that enables easy programming, monitoring, and troubleshooting. It can be used for a wide range of applications, including automotive parts, consumer goods, and packaging. Overall, the Krauss Maffei SFT MX is a reliable and versatile injection molding machine that is widely used in the manufacturing industry.
