2020 Fischer automation Mask making machine
2020 Fischer automation Mask making machine
Available quantity: 1
Villingen-Schwenningen, Germany
Description

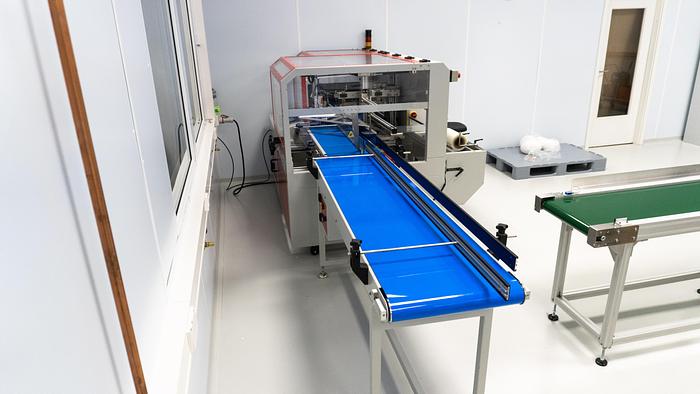

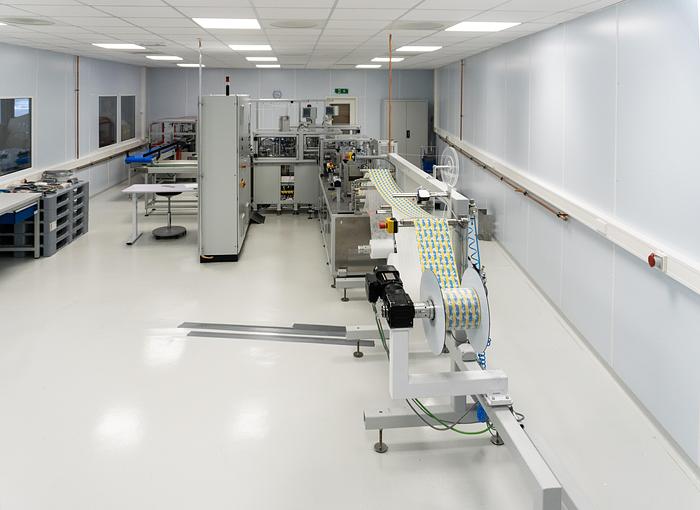

For the production of surgical masks certified according to DIN 14835. The plant comprises the machine for the production of the masks as well as a film welding machine.
In addition to this machine, the material for the production of approx. 8,000,000 masks is on offer.
Possibly, the sale of parts of the plant is also a viable option.

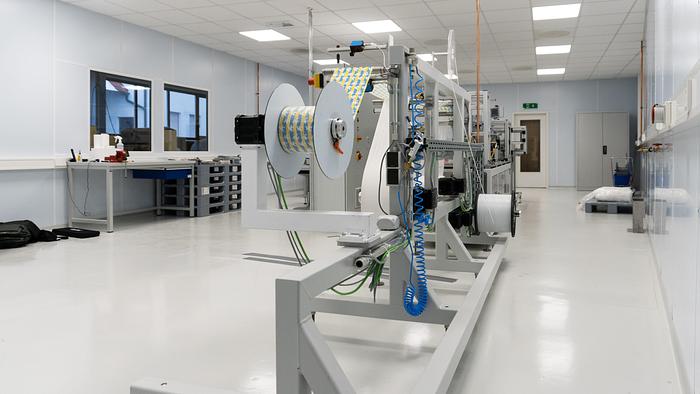

Unwinding:
-Three unwinding points for rolls with maximum diameter approx.
600mm, roll core: 76mm/3"
-Side adjustable guides for material infeed
-One unwinding point for nose wire, roll core 76mm/3",
-Basic structure made of aluminum profiles

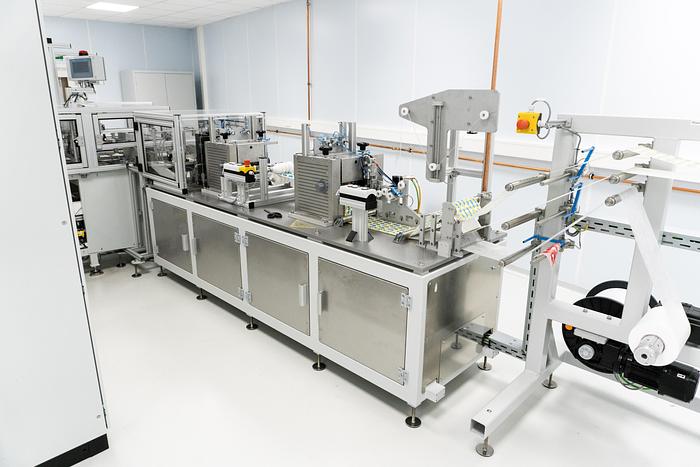

Welding unit for "mask body"
-Material inlet with guides for hammering in the
material edges
-wire feeding unit with straightening unit for wire straightening and
cutting unit
-welding station for welding of the folded material edges
material edges (2x 30 kHz ultrasonic)
-material folding unit for forming the three double folds
-transverse welding unit for welding the transverse seams (1x 20 kHz
ultrasound)
-transverse cutting unit for cutting the mask bodies (length
175mm)
-outfeed belt with turning device for transfer to the following stations
subsequent stations
-two distribution belts for transfer to the
ear loop welding stations
-Basic structure: solid welding frame, powder coated
-Safety enclosure: aluminum profiles with doors

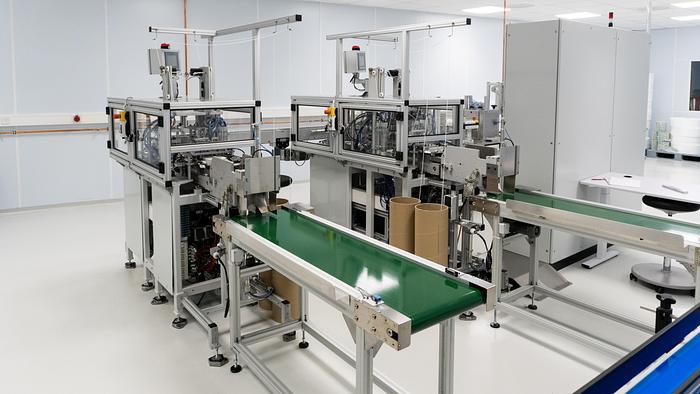

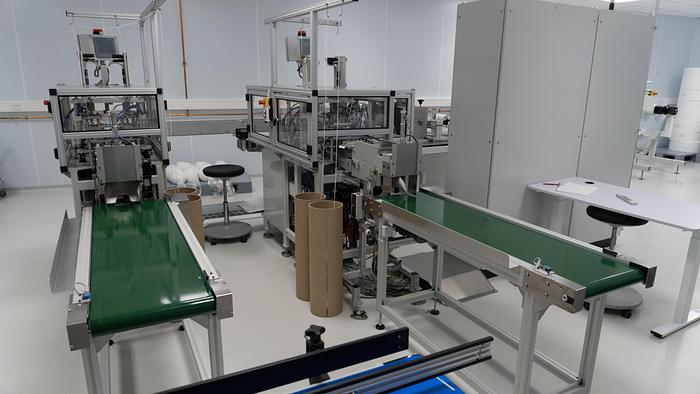

2x welding station for ear loops:
-two welding units each for ear loops
-feeding of the mask bodies by means of a cycle belt
-pulling of the rubber bands from the bag by means of a pre-puller
-feeding of the rubber bands
-pulling of the rubber bands to length
-Pre-feeding of the loops by means of gripper system
-Welding of the loop on both sides at each end
ends (30 kHz ultrasound)
-Offloading of the finished masks onto a conveyor belt (length approx.
1m, system stops when conveyor belt is full)
-basic construction: solid welding frame, powder coated
-Safety enclosure: aluminum profiles with doors
Control technology:
-Siemens S7 SPS control
-HMI: Siemens KTP 900 9" color display for operation of the plant
plant
-Central control cabinet for the complete plant
Find more here - https://www.ucymachines.com/
Specifications
Manufacturer | Fischer automation |
Model | Mask making machine |
Year | 2020 |
Condition | Used |
