Used EL-Matic 24H

It has been used for approximately 2,500 operating hours (3 hours a day, 15 hours a week and 60 hours a month for a total of 41 months).

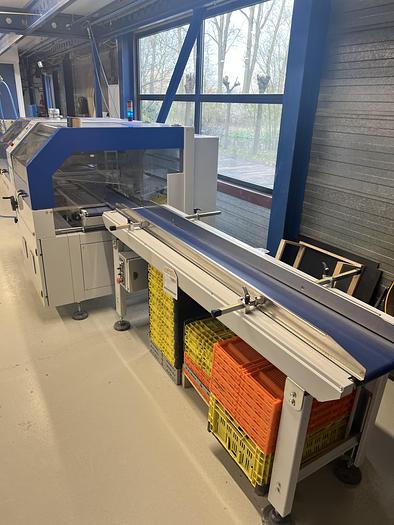

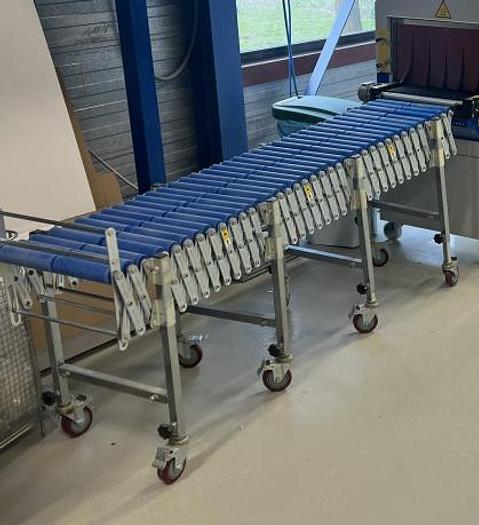

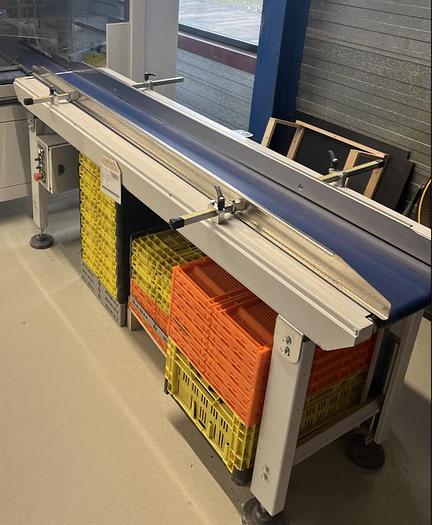

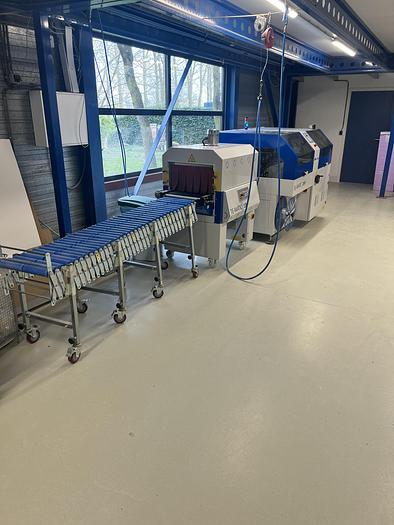

The machine comes with a powered input conveyor belt and a manual output conveyor belt.

High-speed automatic L-sealer with a maximum packing height of 200mm

The Audion EL-Matic 24H is and industrial L sealer suitable when you would like to pack products with a height of maximum 200 mm. This is 50 mm more than the standard EL-Matic 24. This automatic L-sealer uses an automatic conveyor infeed that can process up to 3600 packages/hour.

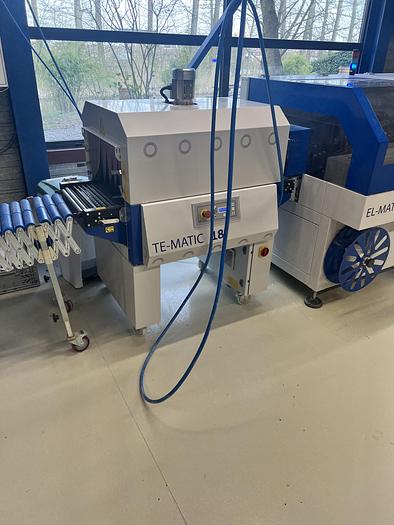

Soft feed conveyors carry products into the system and place them inside the folded shrink film. An adjustable sealing arm raises and lowers as products move through the system. Once sealed, the closed pouch could then be moved into an optional shrink tunnel, shrinking and tightening the film.

The Audion EL-Matic 24H automatic L-sealer helps to automate your sealing process, leading to:

Increased productivity

Increased efficiency

Professional packing results

Higher protection grade

Power supply

380 - 415 V, 3PH + N + PE, 60 HZ

Installed power

3350 W

Sealing bar

640 x 510 mm

Maximum pack height

200 mm

Speed of conveyors

10 - 30 m/min

Output up to

3600 pack per hour (depending product size, pack collation and type of film)

Maximum size of film reel

600 - ø 350 mm

Machine size

2175 x 1875 x 1665 mm

Machine nett weight

660 Kg

Usable films

Polyolefin, up to 30 µ

Usable films

Polyethylene, from 15 to 60 µ with option sealing bar for PE

The Audion EL-Matic 24H is a used machine designed for automatic filling and capping of bottles. It features a 24-head filling station and a capping station capable of handling both screw and press-on caps.

The machine is constructed with a stainless steel frame and is equipped with a variety of safety features, including safety guarding and emergency stop buttons. The fill volume and cap torque can be easily adjusted to accommodate a wide range of bottle sizes and product types.

In addition to its automatic capabilities, the Audion EL-Matic 24H also includes a manual mode for filling and capping smaller runs or for testing new products. The machine is user-friendly and easy to maintain, with quick-change parts for easy cleaning and servicing.

Overall, the Audion EL-Matic 24H is a reliable and efficient choice for automated filling and capping, suitable for a range of industries such as food and beverage, pharmaceuticals, and cosmetics.
