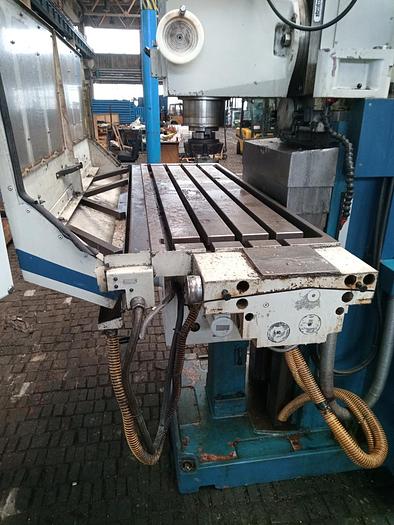

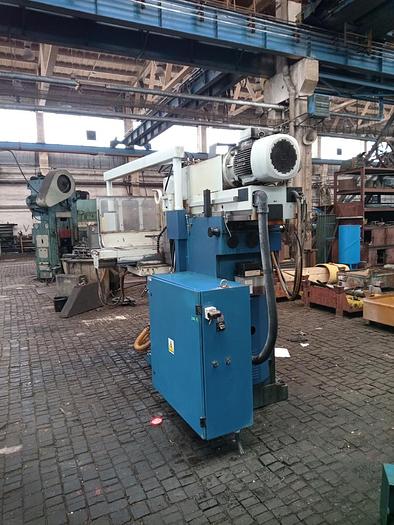

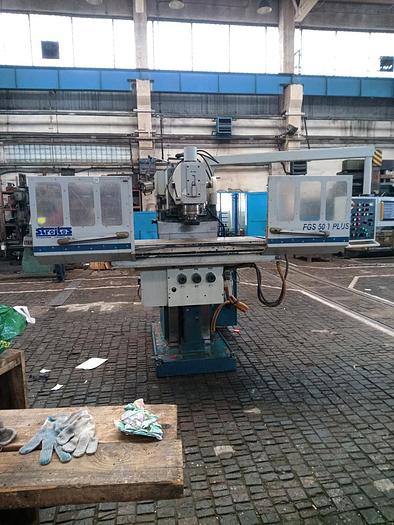

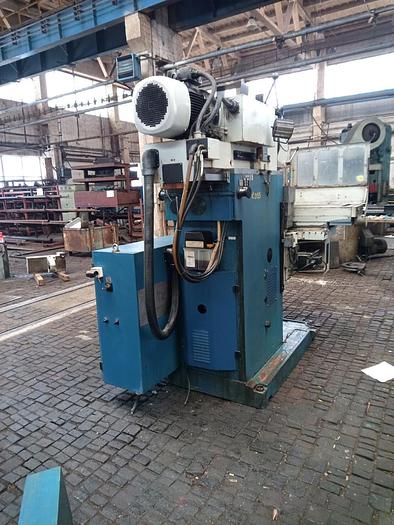

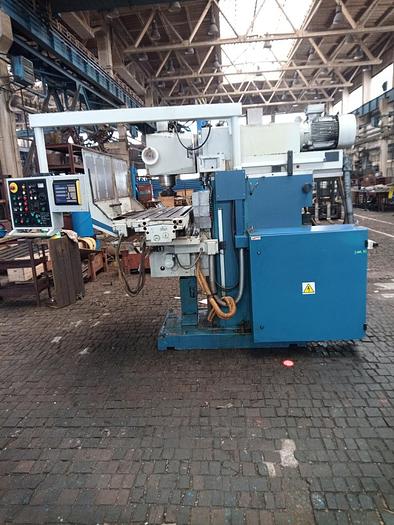

2006 TOS FGS 50 T PLUS

The machine is preserved well and fully functional. It is after service repair.

The TOS FGS 50 T PLUS is a milling machine manufactured by TOS Kurim, a Czech company specializing in the production of machine tools.

The FGS 50 T PLUS is a universal milling machine that features a vertical milling head, horizontal milling spindle, and a swiveling rotary table that allows for 5-axis machining. It has a table size of 630 x 1800 mm and can handle workpieces up to 2000 kg in weight. The spindle speed range is 20 - 4000 RPM and it is equipped with a 3-axis digital readout system for precise positioning.

This machine is designed for heavy-duty milling operations in industrial settings and is suitable for a variety of materials including steel, aluminum, and cast iron. The TOS FGS 50 T PLUS is a popular choice among manufacturers due to its robust construction, high precision, and versatility in milling applications.

• Table size: 630 x 1800 mm
• T-slots: 5 x 18 x 100 mm
• Longitudinal travel (X-axis): 1500 mm
• Cross travel (Y-axis): 700 mm
• Vertical travel (Z-axis): 500 mm
• Spindle taper: ISO 50
• Spindle speed range: 20 - 4000 RPM
• Spindle motor power: 15 kW
• Quill diameter: 100 mm
• Distance from spindle center to column: 850 mm
• Distance from spindle nose to table surface: 0 - 700 mm
• Swiveling rotary table: 360° (continuous)
• Rotary table dimensions: 800 x 800 mm
• Maximum weight of workpiece: 2000 kg

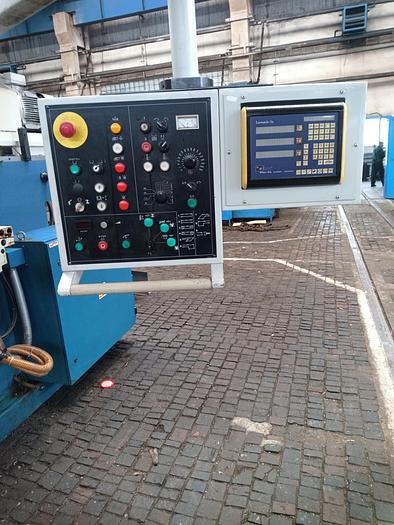

• Digital readout system: 3-axis

Please note that these specifications may vary depending on the specific configuration of the machine, so it's always best to check with the manufacturer for the most up-to-date and accurate information.
