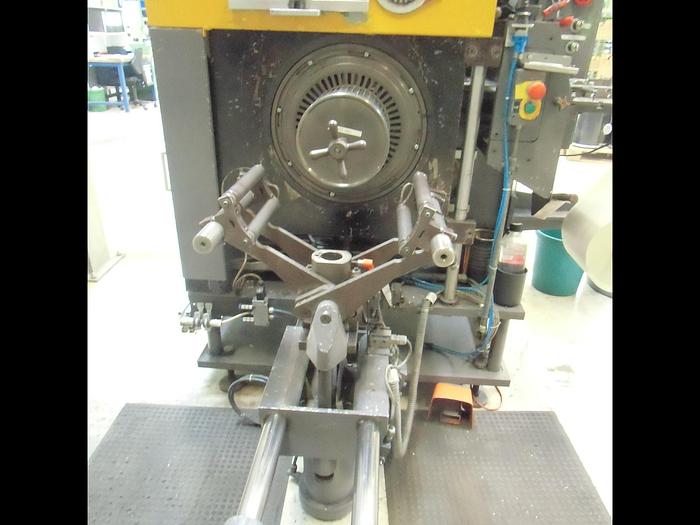

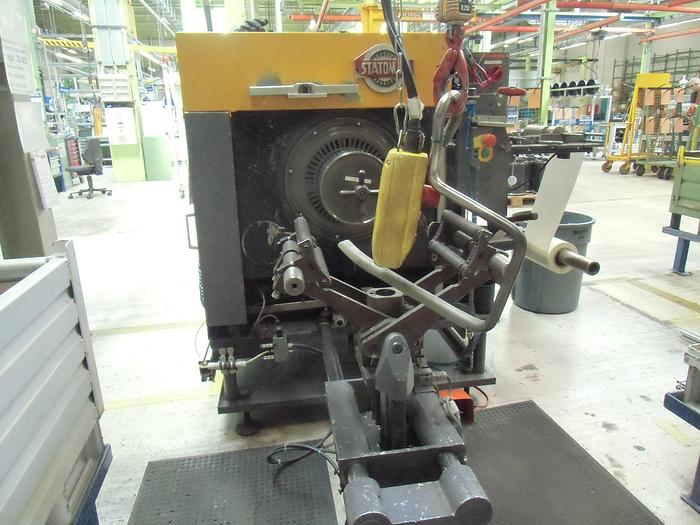

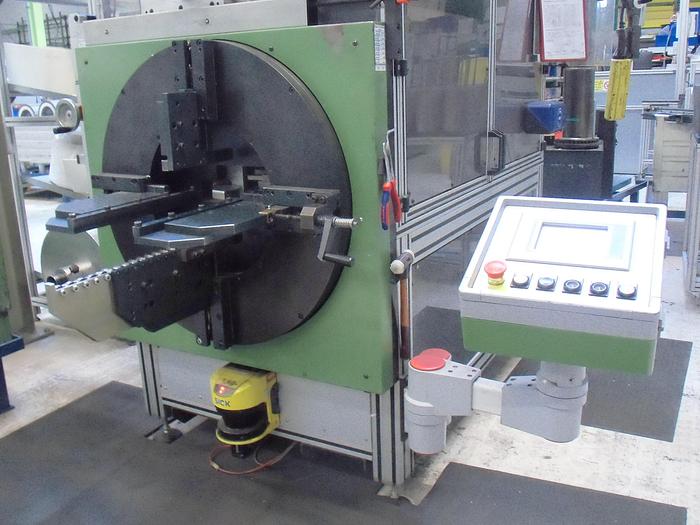

2015 Elmotec Statomat EU 320
2015 Elmotec Statomat EU 320
Available quantity: 3
Karlsruhe, Germany
Description
The Elmotec Statomat EU 320 is a high-precision motor manufacturing machine designed for producing stator and rotor cores for electric motors.
1. Machine dimensions: The Elmotec Statomat EU 320 has a compact design with dimensions of 3.5m x 2.2m x 2.8m (length x width x height) and a weight of around 9,500 kg.
2. Motor capacity: The machine has a motor capacity of up to 55 kW and a maximum rotational speed of 6,000 RPM.
3. Workpiece dimensions: The maximum workpiece diameter is 320 mm, and the maximum stack height is 250 mm.

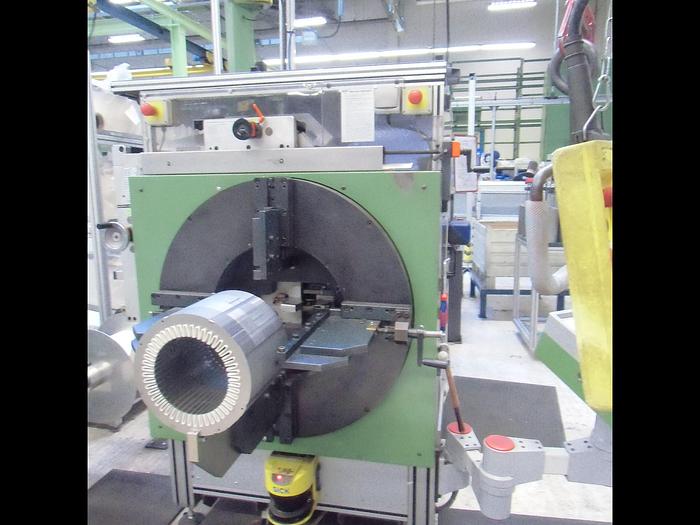

4. Coil insertion: The machine can insert pre-formed coils into the stator core with high accuracy and repeatability. It can handle different types of coils, including wave, diamond, and rectangular.
5. Core assembly: The Elmotec Statomat EU 320 can perform various core assembly processes, including lamination stacking, indexing, welding, and bonding.

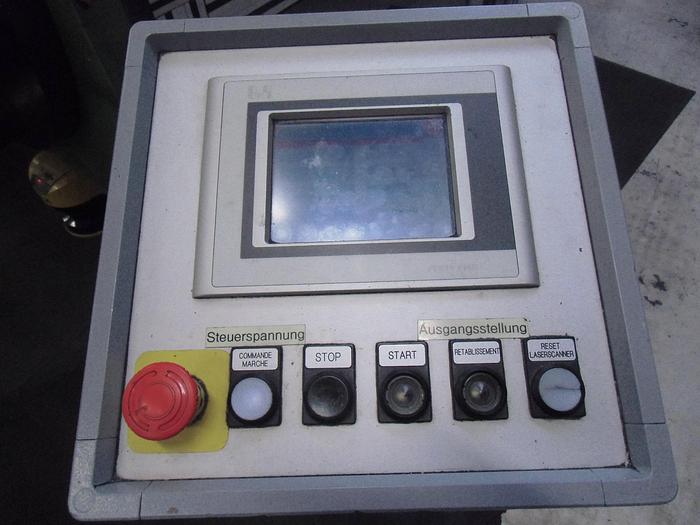

6. Automation: The machine is fully automated and equipped with advanced control systems that allow for precise control of the manufacturing process. It has a touch screen interface that provides easy access to all machine functions.
7. Production speed: The Elmotec Statomat EU 320 can produce up to 1,000 stators or rotors per hour, depending on the complexity of the part and the number of operations required.
8. Accuracy: The machine can achieve high levels of accuracy and repeatability, with a positioning accuracy of 0.01 mm and a repeatable accuracy of 0.005 mm.
9. Flexibility: The Elmotec Statomat EU 320 is highly flexible and can be configured to produce a wide range of stator and rotor sizes and shapes. It can handle different types of materials, including silicon steel, cobalt iron, and nickel iron.
10. Energy efficiency: The Elmotec Statomat EU 320 is designed for energy efficiency, with a low power consumption of around 35 kW during operation. It also features a regenerative braking system that recovers energy during deceleration, reducing overall energy consumption.
Overall, the Elmotec Statomat EU 320 is a high-performance machine that offers exceptional precision and flexibility in the production of stator and rotor cores for electric motors.
Find more here - https://www.ucymachines.com/
Specifications
Manufacturer | Elmotec |
Model | Statomat EU 320 |
Year | 2015 |
Condition | Used |
