2020 CMZ TA 35 Y1350
2020 CMZ TA 35 Y1350
Dresden, Germany
Description

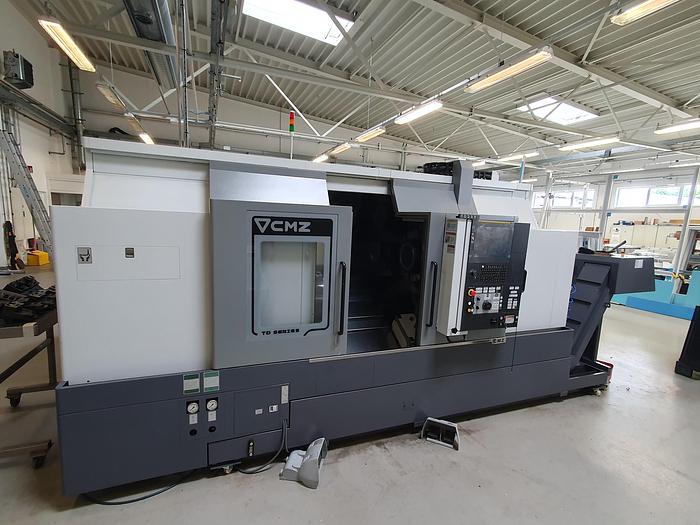

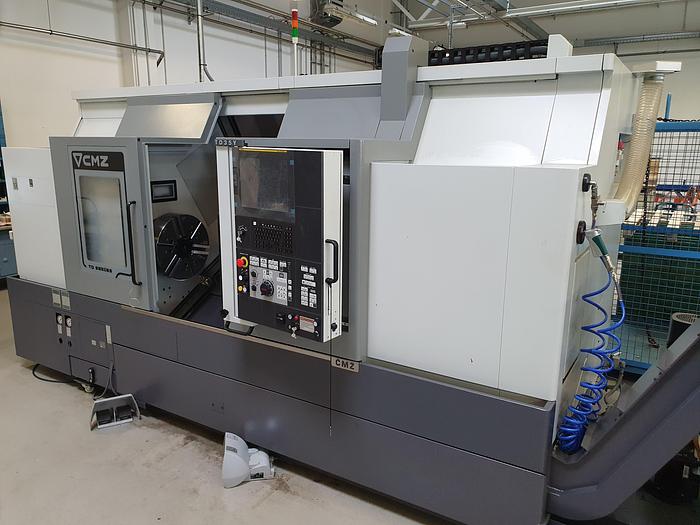

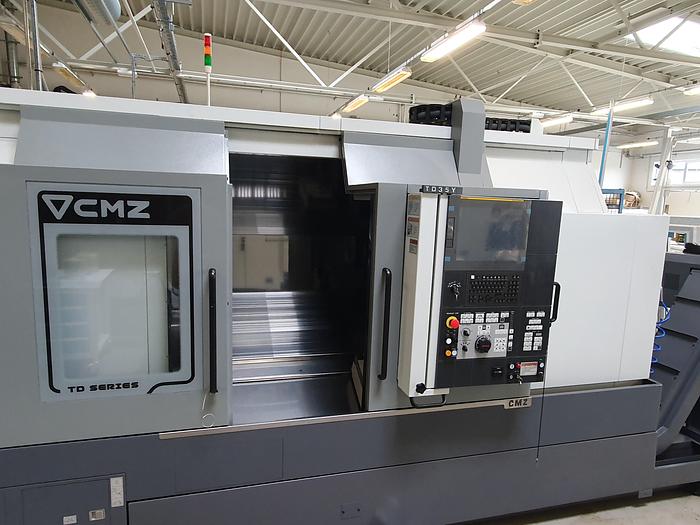

CMZ CNC Lathe Model:

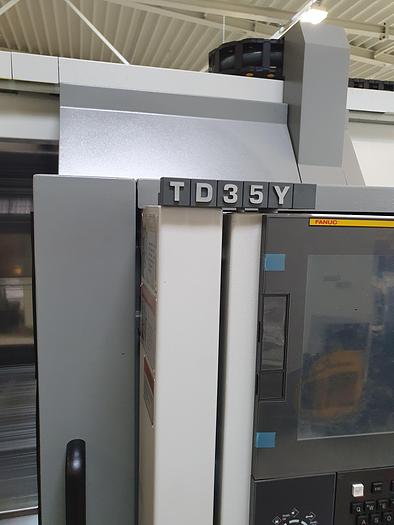

TD-35-Y-1350/Fanuc 32iTB control with 15 "touch screen and new iHMI.
accessories for TD series:
Machine language German
Machine manuals in pdf format available for download on cloud.cmz.com
G Codes type A in Fanuc control
Tailstock with automatic hydraulic lock on the bed
Tailstock quill d=110x150 mm (travel) with integrated quill bearing and taper
MK4
double foot pedal for quill movement

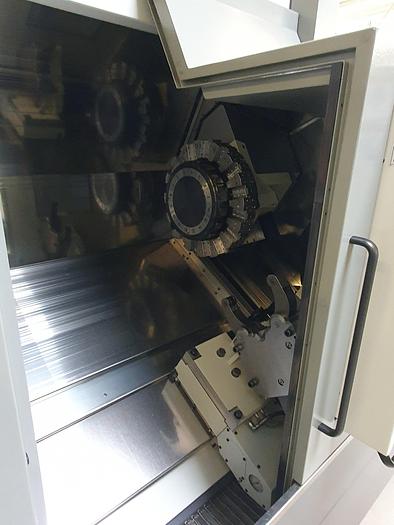

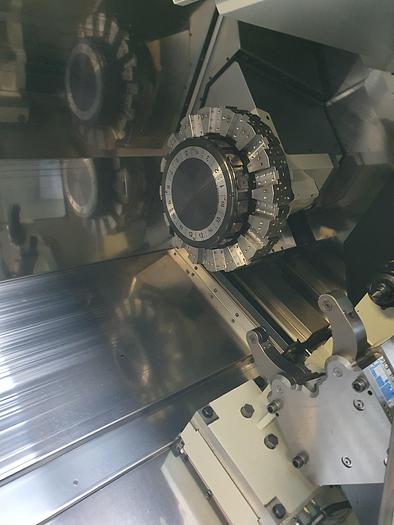

16 positions servo tool turret
Hydraulic hollow clamping cylinder (standard) in main spindle (TD35 Autoblok VNK 225-95)
LPS system in main spindle (end position monitoring hydraulic cylinder)

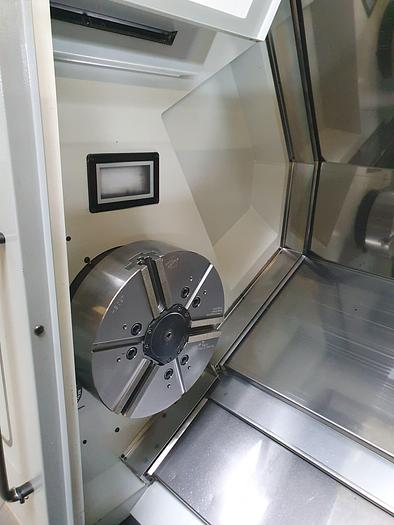

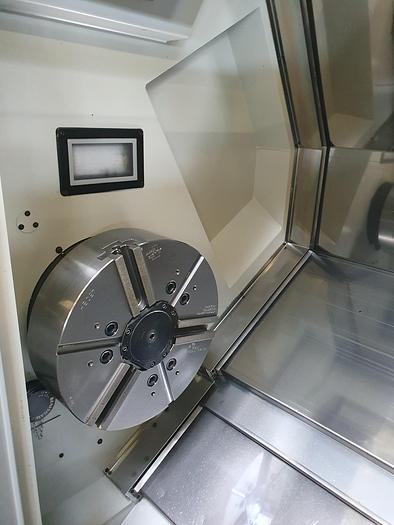

BHD 450 3 jaw power chuck for main spindle with one set of soft top jaws
Tool presetter (tool presetter)

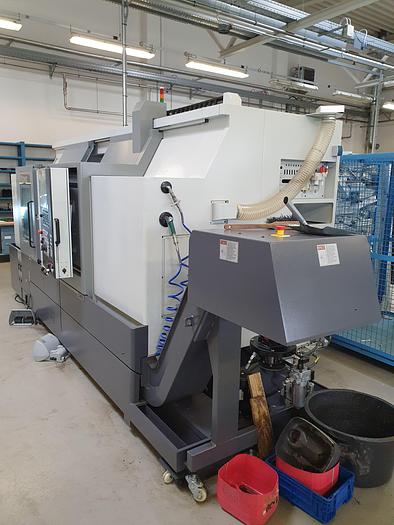

Side chip conveyor for Z=1350 bed (standard version)

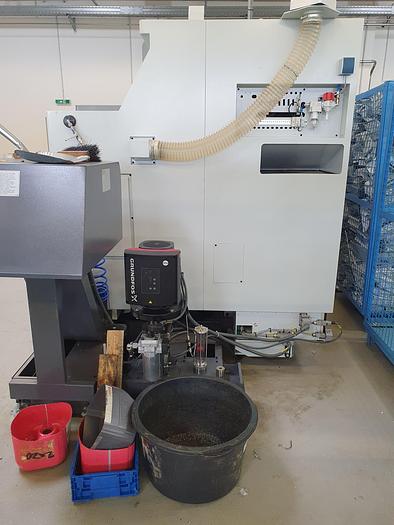

High pressure coolant pump with three programmable pressure levels (35, 15 & 6 bar) incl.
Replaceable 75 mm filter
Coolant wash nozzle
Machine status light
Tool life management
Tool load monitoring

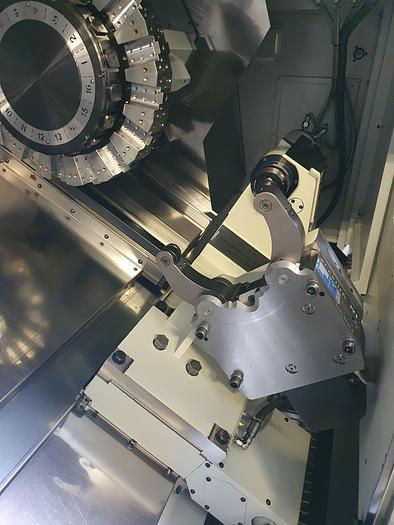

Manual steady rest slide for fixed steady rests. Mounted on tailstock guideway,
incl. electrical, hydraulic installation as well as connections for coolant supply on
Steady rests
Steady rest support on right side of slide 1
Self-centering steady rest SMW-Autoblok Model SLUX 3.2, working diameter 50 to 200
mm, incl. steady rest carrier for mounting on manual or servo-controlled steady rest slide
(Base 1, LH)
Coolant supply through steady rest
Automatic lubrication system for steady rest
Sealing air at steady rest
Preparation for suction, connection flange d=150

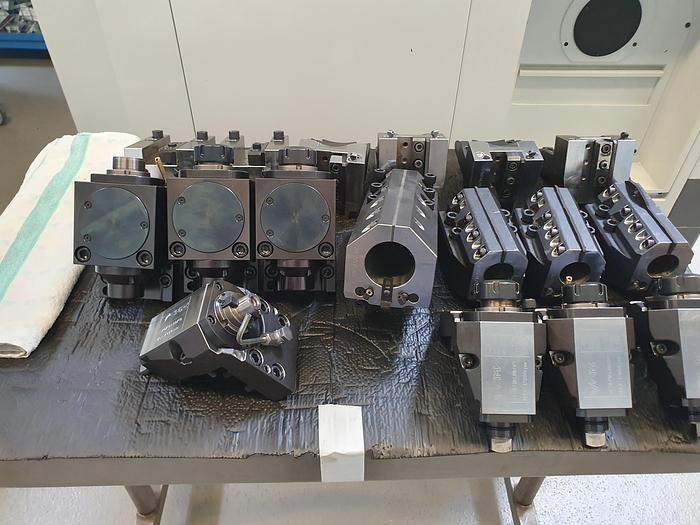

Optional tool holder
4 x holders for turning tools short / collision free
2 x holders for facing tools
3 x holders for drilling tools d=40 long
2 x reducing bush d=12/40
1 x reducing sleeve d=16/40
2 x reducing bush d=20/40
1 x reducing bush d=25/40
2 x reducing bush d=32/40
1 x holder for drilling tools d=60
1 x reducing bushing d=50/60
3 x Axial holder for AGW with internal coolant supply (main spindle)(Max.12.000rpm)
3 x radial holder for AGW with internal coolant supply (Max.12.000 rpm)
1 x driven tool holder radial, with universal shank d=22 (max.4000 rpm)
1 set of additional soft top jaws for BHD-400 and BHD-450 (3 pcs.)
1 set of hard reversible top jaws for BHD-400 & BHD-450 and BHD-500 (3 pcs.)

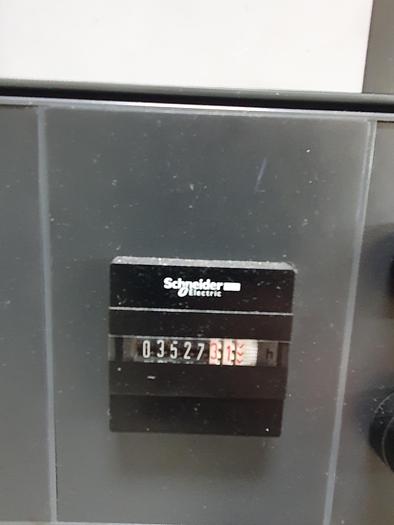

Meter reading as of 03/30/2023: 3,527 hrs, single shift run.
Transport ex HVD, here the risk is transferred to the customer.
Transport, bringing in and installation at the customer pays customer
Year of manufacture of the machine 2020
Find more here - https://www.ucymachines.com/
Specifications
Manufacturer | CMZ |
Model | TA 35 Y1350 |
Year | 2020 |
Condition | Used |
