2020 AXA VHC 3 3000 XTS

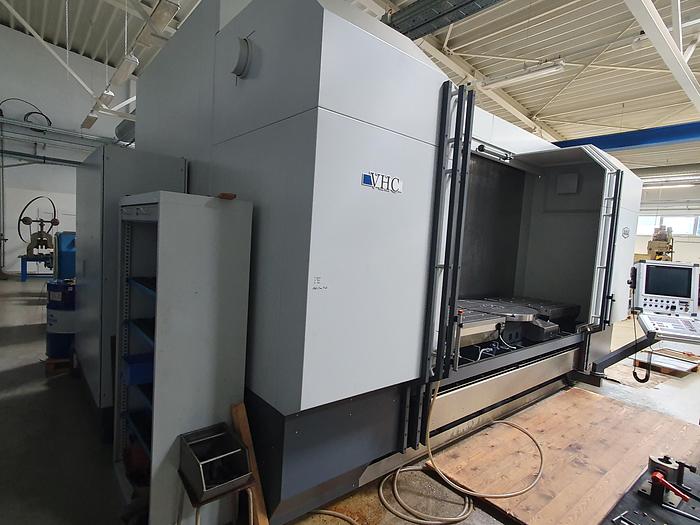

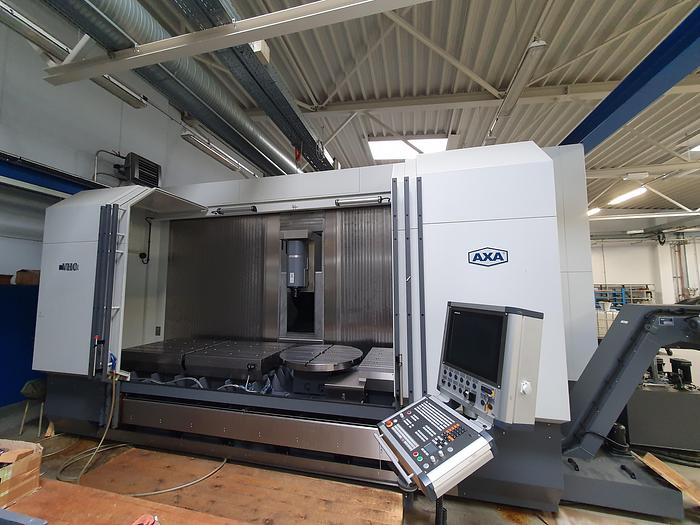

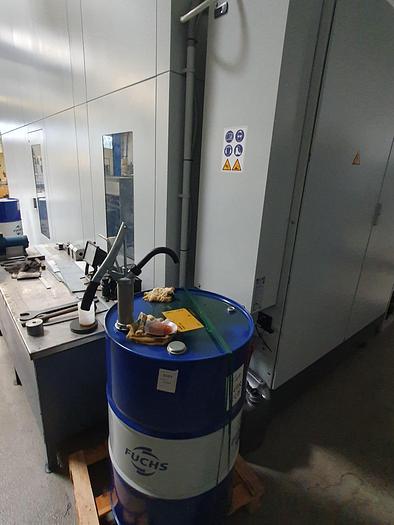

AXA moving column machining center, model VHC 3-3000 XTS

VHC 3 -XTS X=3000 , Y = 700 , Z = 850 (mm)

Standard equipment

Working area

X-stroke vertical according to the X-travel of the selected machine

X-stroke horizontal X-stroke vertical - 2 x 210 mm

Y-stroke vertical 700 mm

Y-stroke horizontal 700 mm

Z-stroke vertical 850 mm

Z-stroke horizontal 850 mm

Distance vertical table - spindle nose: 40 - 890 mm

Distance horizontal table - spindle nose: 250 -1100 mm

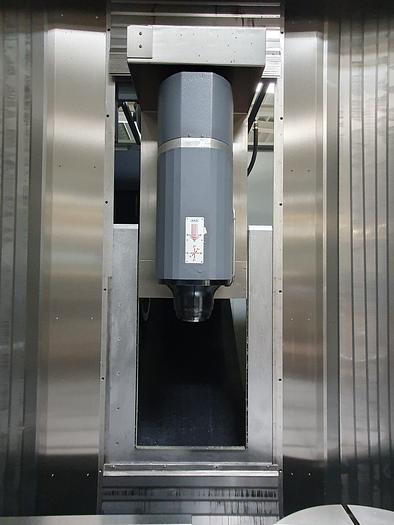

Swivel head

Swivel head 1-axis swivel head infinitely variable positioning in angular steps

of 0.001°. Hydraulically clamped during machining.

Swivel movement via B-axis

Version size A

Swivel range B-axis: +/-90

Pitch 0.001

Swivel radius pivot point - spindle nose: 210 mm

Measuring system Direct measuring system, accuracy +/-5".

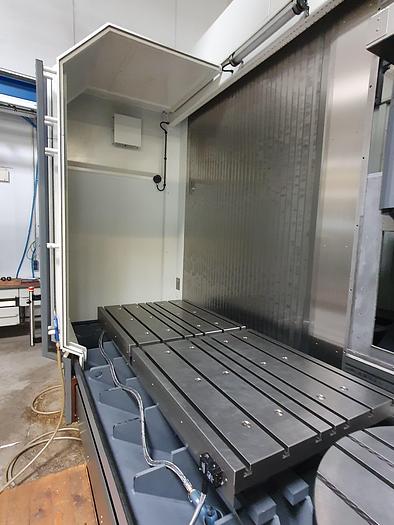

Machine table according to the currently valid standard dimension sheet of the working area

T-slots 14 mm H9, alignment slot H7

T-slot distance 160 mm

Number of T-slots 5

Table load max. 1200kg/m² with even and flat load of the tables

Tool changer

Type XTS Lateral chain magazine, outside the working area.

Tool change behind the working area cover. Thereby

Unrestricted use of the working area during machining and

and protected tool magazine from dirt and chips.

chips. Magazine can be loaded during machining.

Tool holder SK 40, DIN ISO 7388-1 AD/DIN ISO 7388-3 AD (DIN 69871 A/DIN

69872 A)

Tool places 22

Tool width max. diameter 85 mm

With free neighboring places max. diameter 135 mm

Tool length max. 400 mm

Tool weight max. 8 kg per tool

Weight in overgripper max. 10 kg

Spindle and drives

Feed force X/Y/Z max. 9000 N

Rapid traverse X/Y/Z 40/40/30 m/min

Main spindle AC hollow shaft motor, drive no. 110

Power max. 30 kW at 40% ED

Torque max. 143 Nm at 40% ED

Speed range up to max. 6000 1/min. optionally extendable up to max. 12000 1/min.

Buckling speed 2000 1/min

Balancing quality min. G 6,3 mmm/s for tool holders and tools! For

10000 1/min, tool holders and tools with a balancing quality of

with a balancing quality G of 2.5 mm/s are required.

Accuracy

Principle All specifications regarding accuracy only if constant ambient and

ambient and operating conditions. Direct sunlight,

heat accumulation, heating by external energy sources, drafts or vibrations will

vibration affect the accuracy. All data only in

unloaded condition of the machine and after the AXA

Warm-up program

Test protocol Accuracy data only with reference to the AXA

test protocol and only with technologically reasonable and possible

feed. Positioning accuracy with vertical spindle position per 1000

mm per axis X, Y and Z.

Repeating/positioning accuracy +/-0.005 mm

Further equipment

Control Siemens 840 D sl with 19" TFT display

Guiding system Hardened precision steel guides in the basic axes x/Y/Z mounted on a

hand scraped or ground base.

Mating guides with Turcite coating. Thereby high life

excellent long-term accuracy and optimum damping properties.

damping properties .

Traversing column/headstock Cross slide, traversing column and headstock are made from

high-quality machine castings

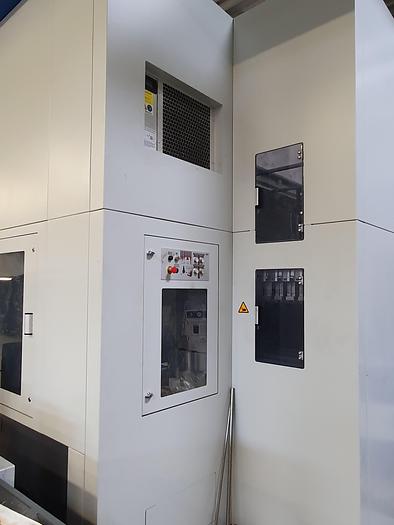

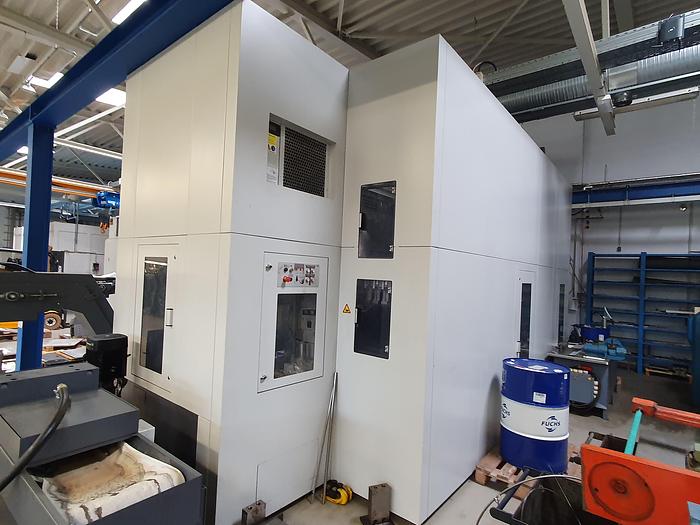

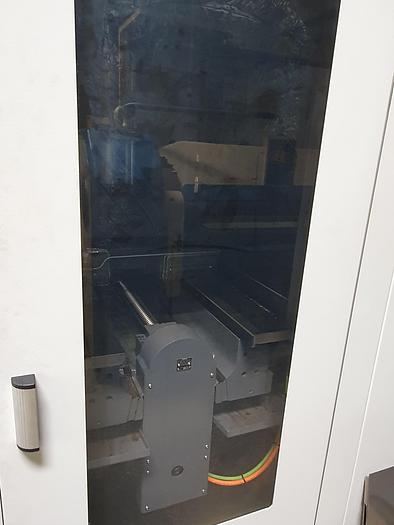

Cladding Closed work area cladding with vertically positioned

bellows cover with sheet metal lamellas. Above the work area

opening, manually operated sliding doors. Electrically protected and

locked

Connection sleeve Preparation for connection sleeve with 200 mm diameter for a customer's

suction system provided by the customer. A cover plate is fitted as standard

installed as standard

Coolant system Coolant system only in connection with chip conveyor and

an external coolant tank

Measuring system Direct, encapsulated length measuring system in the basic axes X/Y/Z.

Manufacturer Heidenhain

Data interfaces USB and RJ45 Ethernet interface.

Main connection 3 x 400 V / 230 V / N/PE 50 Hz

Control voltage 24 V DC

Compressed air connection Min. 6 bar to max. 10 bar oil-free, dry and clean compressed air

Travel Pendulum operation with partition wall and safety circuit for

side detection

Y-stroke 900 mm and Z-stroke 950 mm. For X-stroke up to 3000 mm. Incl.

900 mm wide machine tables

Tool magazine Extension of the magazine chain from 22 to 36 SK 40 tool places.

Accuracy Increased accuracy for X, Y, and Z axis with vertical spindle.

Positioning accuracy +/- 0.0075 mm per 1000 mm and per axis.

Incl. temperature compensation of the heating by the main spindle

in Y and Z axis and recooling system for central cooling of

spindle motor and control cabinet

Main spindle AC hollow shaft motor, drive no. 113. max.power 40 kW (40%

ED), max. torque 255 Nm (40%ED), articulation speed 1500 1/min.

Speed range up to 6000 1/min. Optionally extendable up to max. 12000

1/min.

Speed range Increased speed range up to 10000 1/min.

Coolant system Coolant system for the machining process. Internal

Coolant supply through the spindle. Coolant pressure up to 50 bar

and volume flow up to 30 l/min. Incl. external 400 l tank with

paper filter system. Filtering up to 50 mm. Only in connection with

Chip conveyor

Coolant system accessories Additional price for external coolant tank with 800 l. Recommended

from 50 bar coolant pressure or machines with X-stroke > 4000 mm

Coolant system accessories Two manual spray guns in the working area with steel sheathing of the

hose

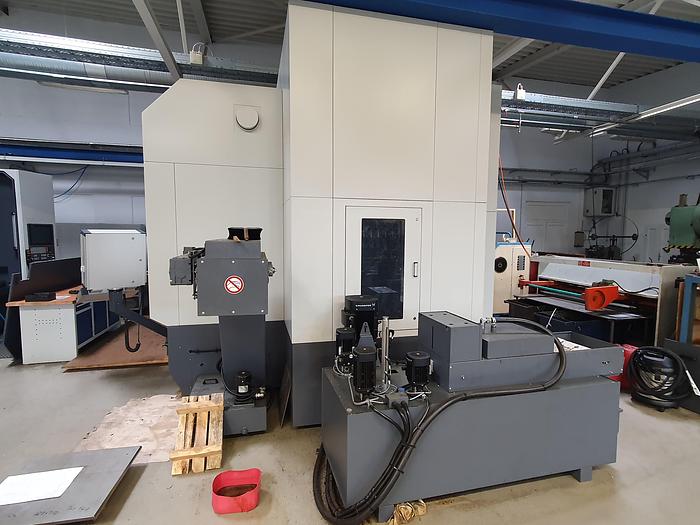

Chip conveyor Hinged chip conveyor with torque cut-off as overload protection.

Discharge side right. Discharge height approx. 1200 mm. Incl. coolant tank and

pump for external coolant supply via a coolant ring with

adjustable coolant nozzles on the spindle. For X-stroke up to 3000 mm

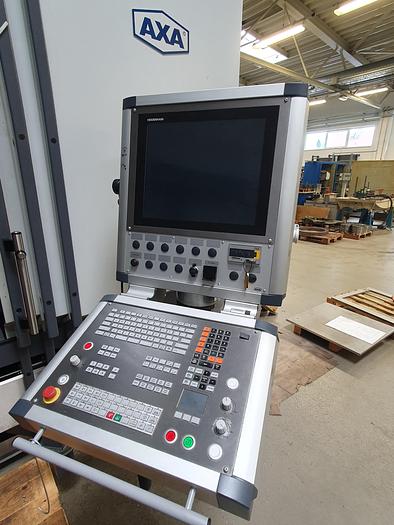

Control Additional price for Heidenhain TNC 640 control with 19" TFT touch screen.

Control system Electronic handwheel HR 510 for Heidenhain control system

Measuring/control Renishaw RMP 60 touch probe with signal transmission by radio.

Receiver on the workspace paneling.

Measuring/controls Sealing air for the length measuring system in the basic axes X/Y/Z. For protection

against dust, dirt and liquids

Additional equipment

NC rotary table AXA RTA 2-300, face plate 300 mm. Indirect measuring system, accuracy

+/- 15" . Star-shaped T-slots. Horizontal/vertical design, center height

200 mm.

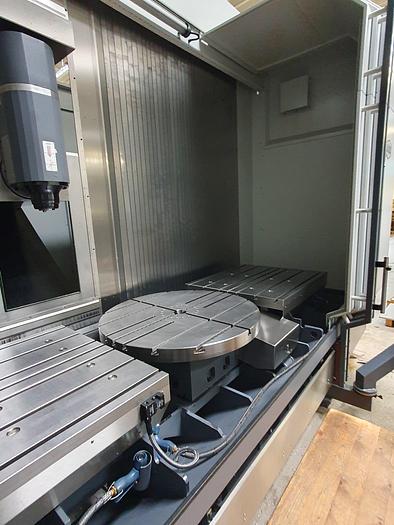

NC rotary table AXA RTA 4TF - 1000, face plate 1000 mm. Direct measuring system.

Accuracy +/- 5". Incl. rotary table cooling, star-shaped T-slots. Only for

horizontal extension. In positioning mode up to max. 20 1/min.

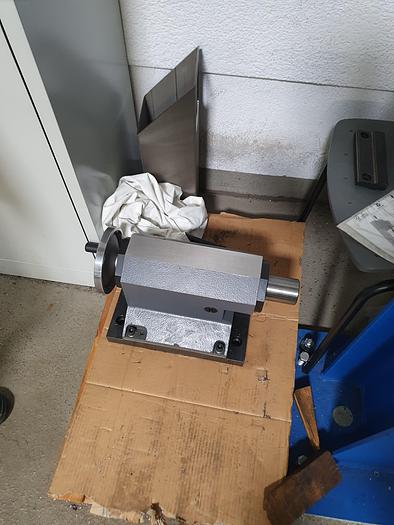

Rotary table accessories Manually operated tailstock MK 4. quill stroke 100 mm, center height 200

mm. Without tailstock tip.

Machine table T-slots in size 18 mm according to DIN 650. For X-stroke up to 3000 mm.

Coolant system Optional use of external cooling with compressed air or

cooling lubricant. Controlled by M-function.

Coolant system Optional use of internal cooling with compressed air or

cooling lubricant. Controlled via M-function.

Rotary table Accessories Rotary table RTA integrated in the working area. Same height as the machine table.

With straight connection of the machine tables to the rotary table. Information

about X/Y position of rotary tables in work area required.

Additional equipment for set-up plates. Required for setting up, aligning and

commissioning of the machine

Control mode 3 without enabling key gaccording to DIN EN 12417 part 1.1.6.4 for

Heidenhain or Siemens control

Control Opt. '167 OCM Optimized Contour Milling for Heidenhain Control

Counter reading as of 30.03.2023 4,320 hrs. , only one shift run

Year of manufacture of the machine 2020

Machine. Bound tools to the AXA machine

GARANT 5-axle clamp with many accessories

Veldon holders SK 40

d = 6 19 x

d = 8 10 x

d = 10 10 x

d = 12 11 x

d = 14 3 x

d = 16 11 x

d = 18 1 x

d = 20 11 x

d = 25 5 x

d = 32 1 x

Collets ER 16 52 x

ER 32 19 x

Drill chuck 3 x

Morse taper 6 x

Milling arbor 13 x

3 x vises

2 x measuring probes

Drills and milling cutters

Milling heads
