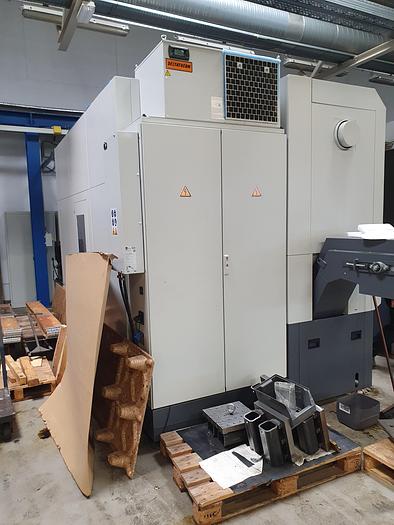

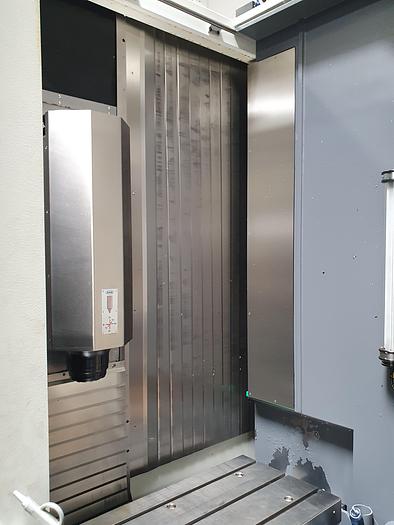

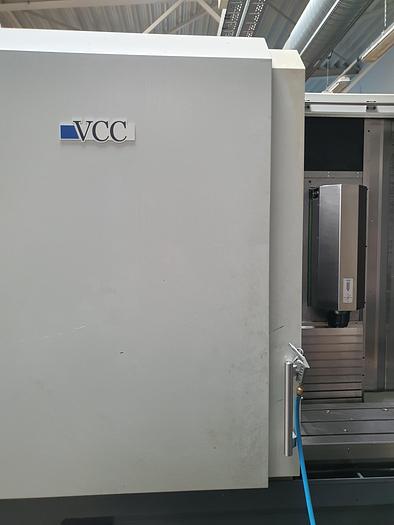

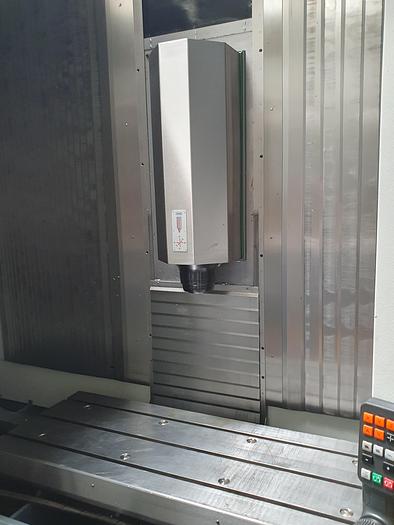

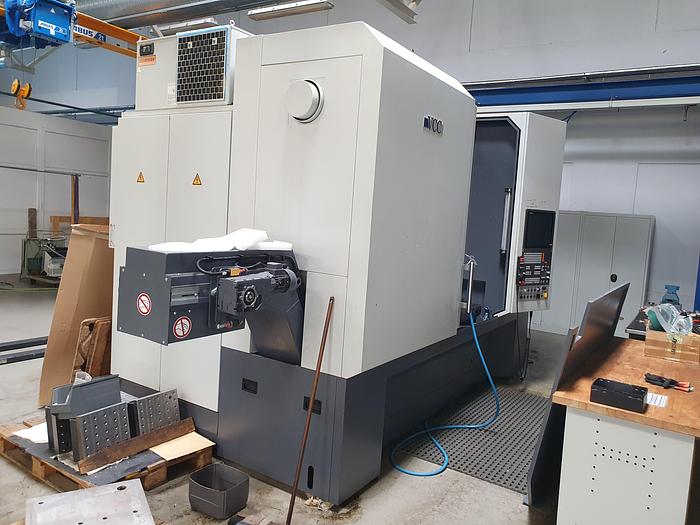

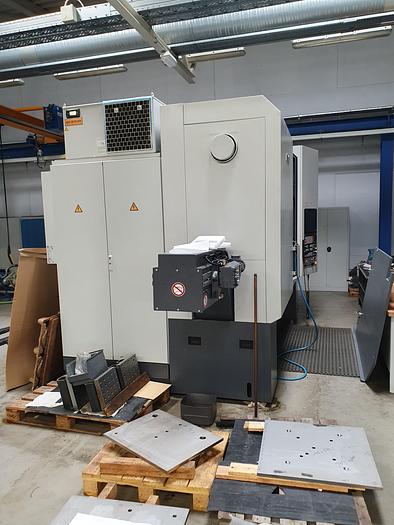

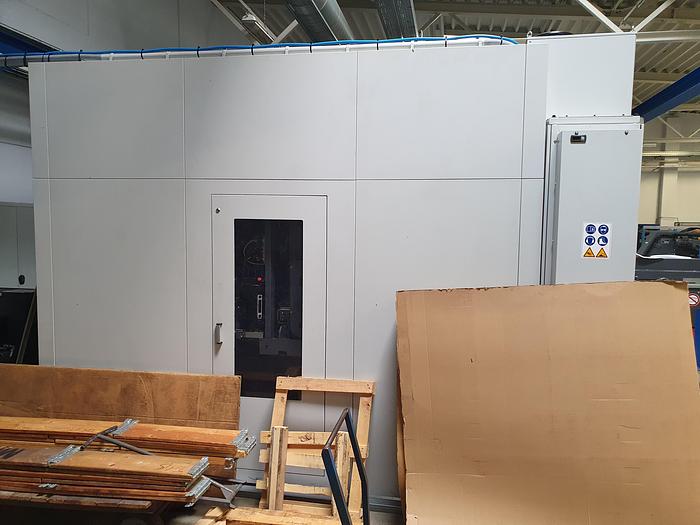

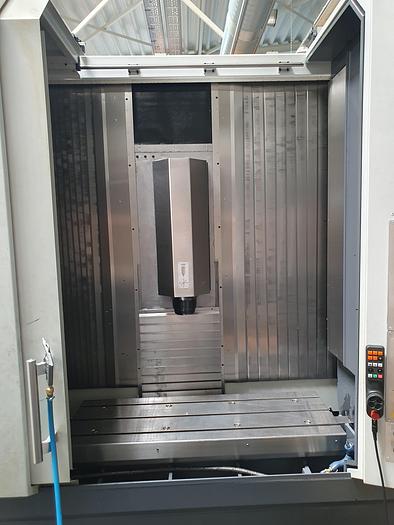

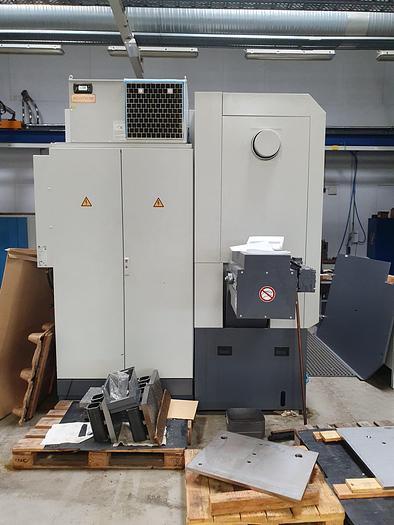

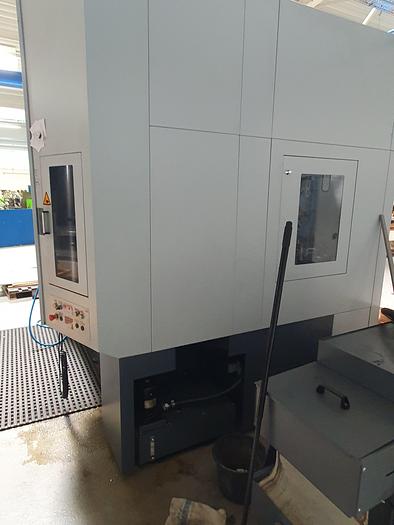

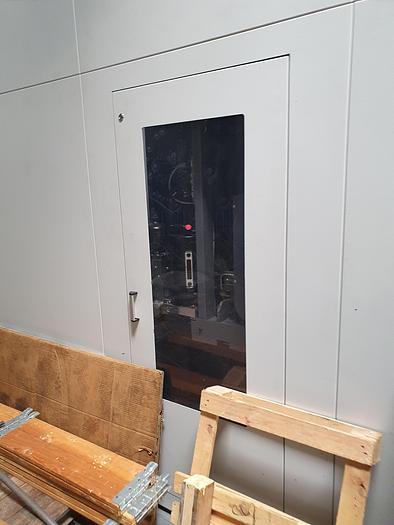

2021 AXA VCC 1200

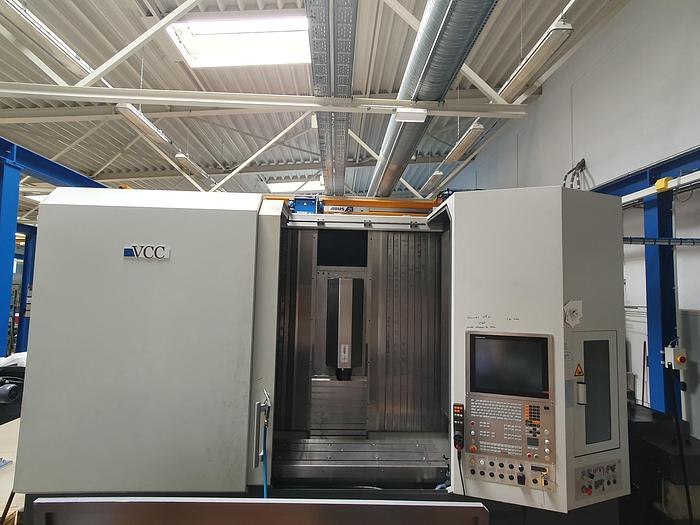

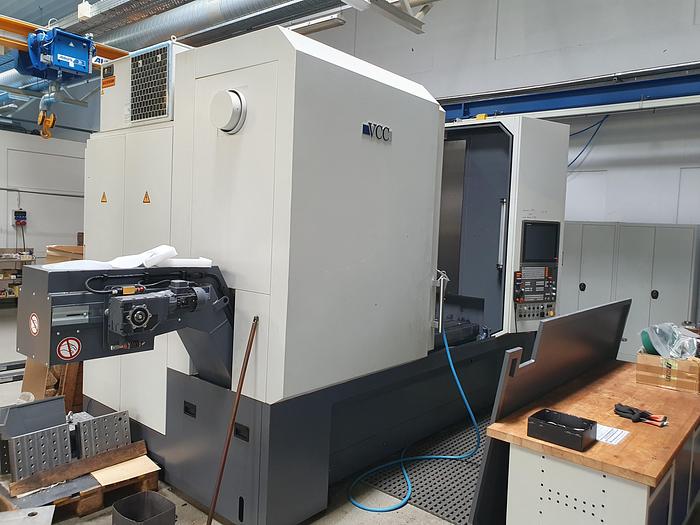

AXA moving column machining center, model VCC 1200

VCC X=1200 , Y = 550 , Z = 600 (mm)

Standard equipment

Working area

X-stroke according to the X-travel of the selected machine

Y-stroke 550 mm

Z-stroke 600 mm

distance table - spindle nose: 180 - 780 mm

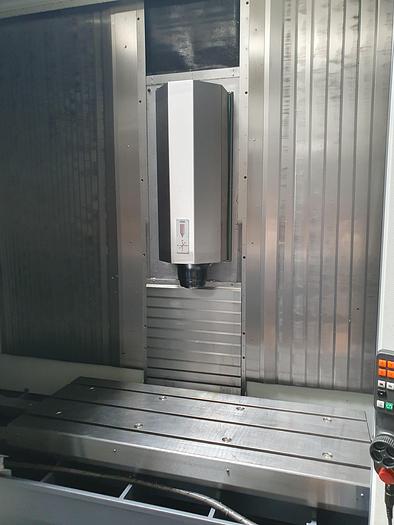

Machine table

Clamping surface 1000 x 500 mm with X-stroke = 750 mm

Clamping surface 1350 x 500 mm with X-stroke = 1200 mm

T-slots 14 mm H9, alignment slot H7

T-slot distance 160 mm

Number of T-slots 3

Table load max. 800 kg/m² with even and flat load on the tables

Tool changer

Type T Laterally positioned plate magazine, directly next to the work area.

Protected from dirt and chips. Magazine can be loaded during

during machining.

Tool holder SK 40, DIN ISO 7388-1 AD/DIN ISO 7388-3 AD (DIN 69871 A/DIN

69872 A)

Tool places 22

Tool width max. diameter 85 mm

With free neighboring places max. diameter 135 mm

Tool length max. 400 mm

Tool weight max. 8 kg per tool

Spindle and drives

Feed force X/Y/Z max. 9000 N

rapid traverse X/Y/Z 25/25/20 m/min

Main spindle AC hollow shaft motor, drive no. 110

Power max. 30 kW at 40% ED

Torque max. 143 Nm at 40% ED

Speed range up to max. 6000 1/min. optionally extendable up to max. 12000 1/min.

Buckling speed 2000 1/min

Balancing quality min. G 6,3 mmm/s for tool holders and tools! For

10000 1/min, tool holders and tools with a balancing quality of

with a balancing quality G of 2.5 mm/s are required.

Accuracy

Principle All specifications regarding accuracy only if constant ambient and

ambient and operating conditions. Direct sunlight,

heat accumulation, heating by external energy sources, drafts or vibrations will

vibration affect the accuracy. All data only in

unloaded condition of the machine and after the AXA

Warm-up program

Test protocol Accuracy data only with reference to the AXA

test protocol and only with technologically reasonable and possible

feed. Positioning accuracy per 1000 mm per axis X, Y and Z.

Repeat accuracy +/-0.005 mm

Positioning accuracy +/-0.015 mm

Further equipment

Control Siemens 840 D sl with 19" TFT display

Guiding system Hardened precision steel guides in the basic axes X/Y/Z mounted on a

hand scraped or ground base.

Mating guides with Turcite coating. Thereby high life

excellent long-term accuracy and optimum damping properties.

damping properties .

Traversing column/headstock Cross slide, traversing column and headstock are made from

high-quality machine castings

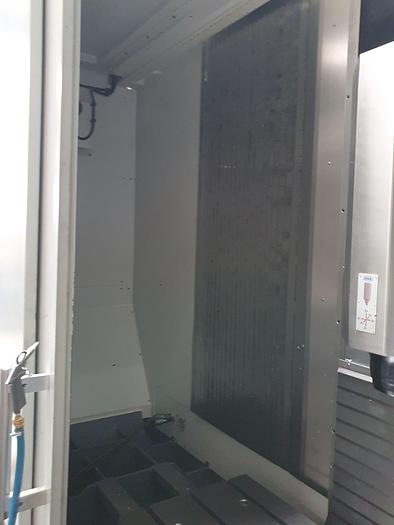

Cladding Closed work area cladding with vertically positioned

bellows cover with sheet metal lamellas. Above the work area

opening, manually operated sliding doors. Electrically protected and

locked

Connection sleeve Preparation for connection sleeve with 200 mm diameter for a customer's

suction system provided by the customer. A cover plate is fitted as standard

installed as standard

Coolant system Coolant system only in connection with chip conveyor and

an external coolant tank

Measuring system Direct, encapsulated length measuring system in the basic axes X/Y/Z.

Manufacturer Heidenhain

Data interfaces USB and RJ45 Ethernet interface.

Main connection 3 x 400 V / 230 V / N/PE 50 Hz

Control voltage 24 V DC

Compressed air connection Min. 6 bar to max. 10 bar oil-free, dry and clean compressed air

Equipment

Tool magazine Expansion from 22 to 30 SK 40 tool places

Accuracy Increased accuracy for X, Y, and Z axis . Positioning accuracy +/-

0,0075 mm per 1000 mm and per axis. Incl.

Temperature compensation of heating by the main spindle in Y

and Z axis and re-cooling system for central cooling of

spindle motor and control cabinet

Main spindle AC hollow shaft motor, drive no. 111. Max. Power 40 kW (40%

ED), max. torque 191 Nm (40%ED), buckling speed 2000 1/min.

max. speed range up to 6000 1/min. Optionally extendable up to max.

12000 1/min.

Speed range Increased speed range up to 10000 1/min.

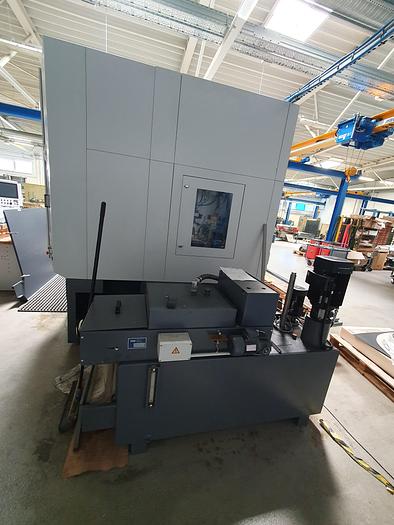

Coolant system Coolant system for the machining process. Internal

Coolant supply through the spindle. Coolant pressure up to 30 bar

and volume flow up to 30 l/min. Incl. external 400 l tank with

paper belt filter system. Filtering up to 50 mm. Only in connection with

Chip conveyor

Coolant system Accessories A hand spray gun in the working area with steel sheathing of the

hose

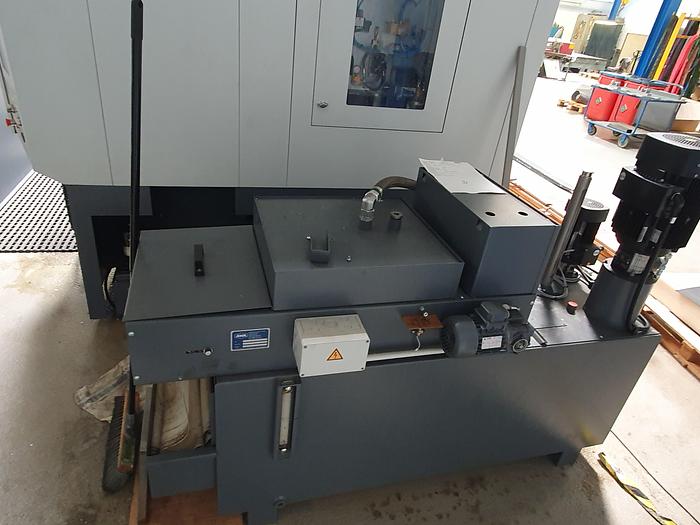

Chip conveyor Hinged chip conveyor with torque cut-off as overload protection.

Discharge side left. Discharge height approx. 1000 mm. Incl. coolant tank and

pump for external coolant supply via a coolant ring with

adjustable coolant nozzles on the spindle. For X-stroke up to 1200 mm

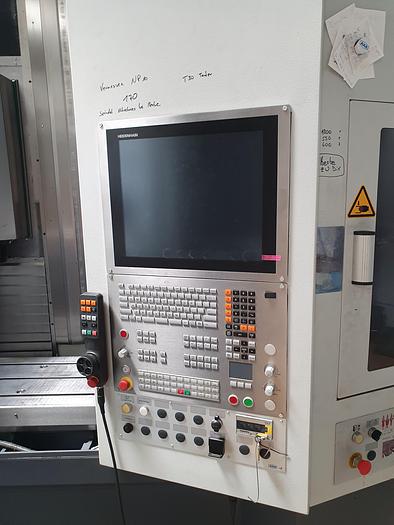

Control Additional price for Heidenhain TNC 640 control with 19" TFT touch screen.

Control system HR 510 electronic handwheel for Heidenhain control system

Measuring/control Renishaw RMP 60 touch probe with signal transmission by radio.

Receiver on the workspace paneling.

Measuring/controls Sealing air for the length measuring system in the basic axes X/Y/Z. For protection

against dust, dirt and liquids

Additional equipment

Machine table T-slots in size 18 mm according to DIN 650. For X-stroke up to 2000 mm.

Coolant system Additional price for coolant pressure infinitely variable via frequency converter.

Incl. pressure sensor. Only in connection with coolant system with 30,

40 or 50 bar coolant pressure.

Coolant system Optional use of external cooling with compressed air or

cooling lubricant. Controlled via M-function.

Coolant system Optional use of internal cooling with compressed air or cooling lubricant.

cooling lubricant. Controlled via M function.

NC extension Pre-equipment AXA rotary table in size 2. Incl. axis extension and

Pre-equipment of hydraulic clamping.

Additional equipment for set-up plates. Required for setup, alignment and

commissioning of the machine

Control mode 3 without enabling key gaccording to DIN EN 12417 part 1.1.6.4 for

Heidenhain or Siemens control

Control Opt. '17 OCM Optimized Contour Milling for Heidenhain Control

Counter reading as of 30.03.2023 3,170 hours, single-shift operation

Year of manufacture of the machine 2021

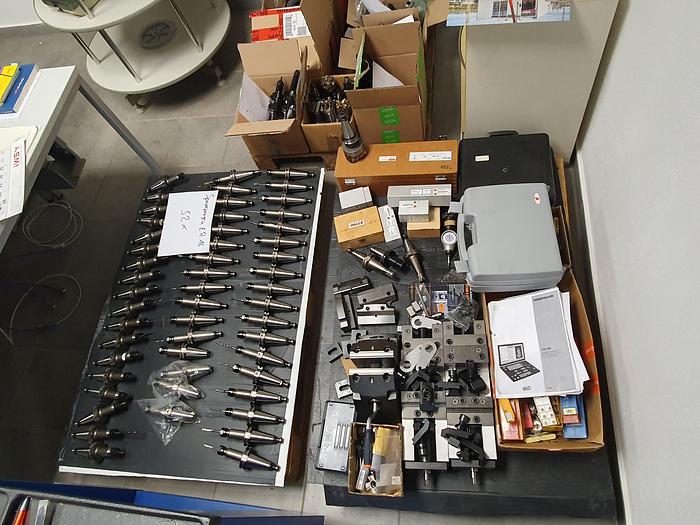

Machine. Bound tools to the AXA machine

GARANT 5-axle clamp with many accessories

Veldon holders SK 40

d = 6 19 x

d = 8 10 x

d = 10 10 x

d = 12 11 x

d = 14 3 x

d = 16 11 x

d = 18 1 x

d = 20 11 x

d = 25 5 x

d = 32 1 x

Collets ER 16 52 x

ER 32 19 x

Drill chuck 3 x

Morse taper 6 x

Milling arbor 13 x

3 x vises

2 x measuring probes

Drills and milling cutters

Milling heads
