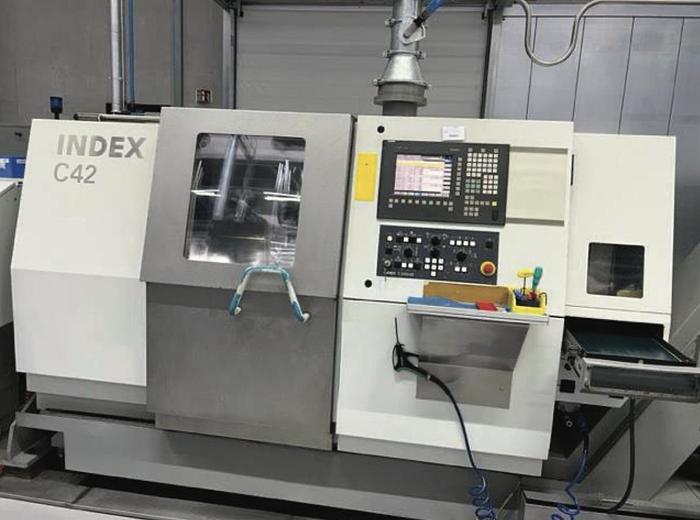

2004 INDEX C42 Speed Line

The INDEX C42 Speed Line is a high-performance CNC (Computer Numerical Control) turning machine designed and manufactured by INDEX-Werke GmbH & Co. KG. It is a versatile and efficient machine used for precision machining operations in industries such as automotive, aerospace, medical, and general engineering.

Here are the specifications of the INDEX C42 Speed Line:

1. Machine Type: CNC Turning Center

2. Control System: Siemens or Fanuc (depending on customer preference)

3. Maximum Swing Diameter over Bed: 600 mm

4. Maximum Swing Diameter over Slide: 420 mm

5. Maximum Turning Length: 800 mm

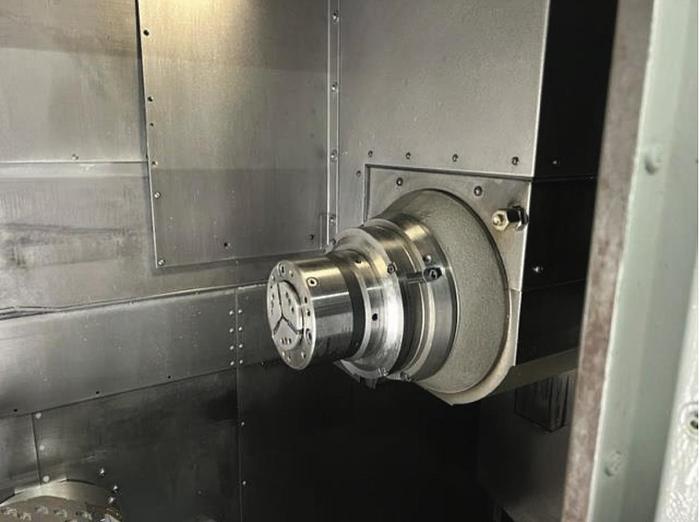

6. Spindle Nose: Size 140 with DIN 55026 A8

7. Spindle Bore Diameter: 90 mm

8. Spindle Speed Range: Up to 5,000 RPM (depending on configuration)

9. Number of Tool Stations: 14 (can be expanded with optional tool turret)

10. Tool Shank Size: 25 mm x 25 mm

11. Rapid Traverse Rate (X/Z): 30 m/min

12. Maximum Cross Slide Travel (X-Axis): 300 mm

13. Maximum Longitudinal Slide Travel (Z-Axis): 800 mm

14. Turret Configuration: VDI25, with the option for VDI30 (with additional tool turret)

15. Main Motor Power: 29 kW

16. Machine Dimensions (L x W x H): Approximately 4,600 mm x 2,800 mm x 2,800 mm

17. Machine Weight: Approximately 8,000 kg

Features and capabilities of the INDEX C42 Speed Line:

1. High-Speed Machining: The C42 Speed Line offers rapid tool movements and high spindle speeds, enabling fast and efficient machining operations.

2. Precision and Accuracy: The machine incorporates robust construction and advanced technologies to ensure precise and accurate machining results.

3. Multiple Tooling Options: The machine is equipped with a versatile tool turret system that can accommodate a wide range of tools, allowing for flexibility in machining operations.

4. Advanced Control System: The CNC control system (Siemens or Fanuc) provides user-friendly programming and operation interfaces, enabling efficient setup and optimization of machining processes.

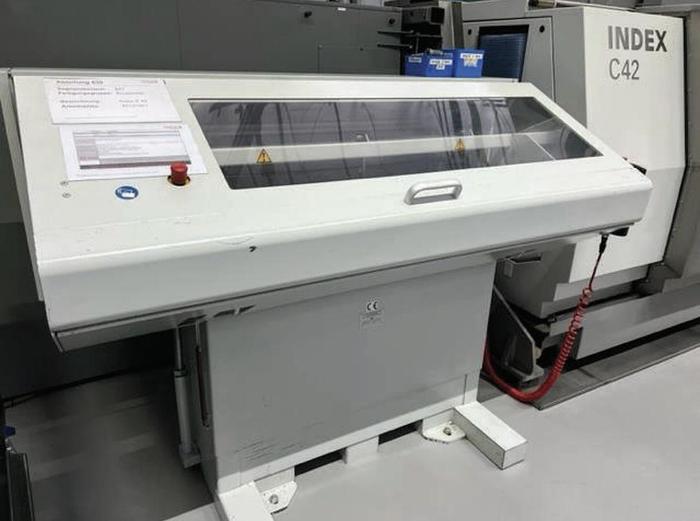

5. Automation Ready: The C42 Speed Line can be integrated with various automation systems such as robotic loaders and bar feeders, enhancing productivity and reducing manual intervention.

6. Easy Maintenance: The machine is designed for easy access to components, facilitating maintenance and minimizing downtime.

7. Optional Features: Additional features such as coolant systems, chip conveyors, part catcher systems, and tool presetting systems can be integrated based on specific requirements.

Please note that the specifications mentioned above are based on general information and may vary depending on the specific configuration and version of the machine.
