2001 KRAUSS MAFFEI 650 – 2700 C1

Injection moulding machine incl. robot

Manufacturer Krauss Maffei

Model 650 – 2700 C1

Year 2001

Used Materials -

Final product Plastic injection

Hours in Production 98203

CLAMPING UNIT

Clamping force 650

Distance between tie-bars 1000

H/V (mm)

Tie-bar diameter (mm) 210

Platten size (H x V) (mm) 1525 x 1700

Mould height (Max.- Min) (mm) Min 600

Daylight between platen (mm) 600

Clamping speed (mm/s) 730

Opening stroke (Max.) (mm) 1750

Ejector force (kN) 226

Ejector stroke (mm) 120

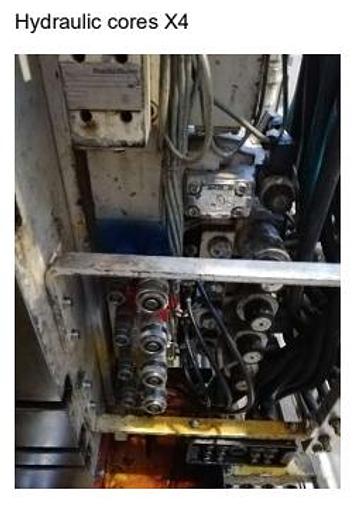

Core pulls (YES/NO) YES

Number of core pulls 4 in mobile side

Dry cycle -

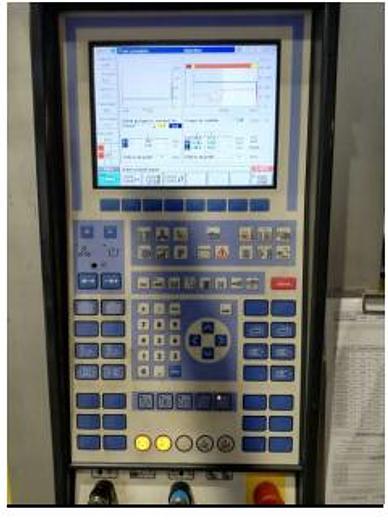

Control type MC4

INJECTION UNIT

Plastification unit size 2700

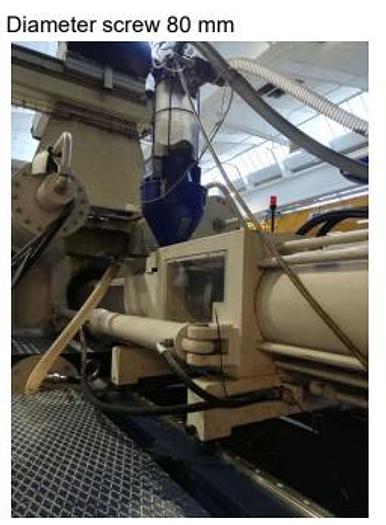

Screw diameter (mm) 80

Shot weight (Max.) (Material)(g) 1049

Injection volumen (cm3) 1442

Injection pressure (bar) 1829

Injection rate (cm3/s) 603

Nozzle force (Max.) (Ton) 173

Nozzel stroke (Max.) (Ton)

Plasticising capacity (g/s)

Number of Heating zones 12 for the mold

Heating capacity (kW)

OTHER DETAILS

Weight (kg) 34.500

Weight clamping unit (kg)

Weight injection unit (kg)

Machine dimensions (LxWxH)

Dimensions clamping unit (LxWxH)

Dimensions injection unit (LxWxH)

Voltage (V) 400

Frequency (Hz) 50

Total Electric consumption (Kw) 36

CE certified? (YES/NO) YES

Machine manuals (YES/NO) YES

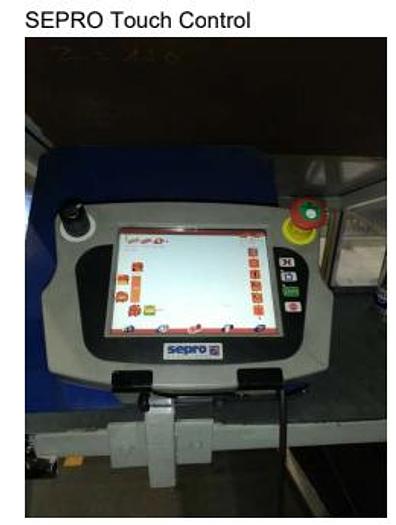

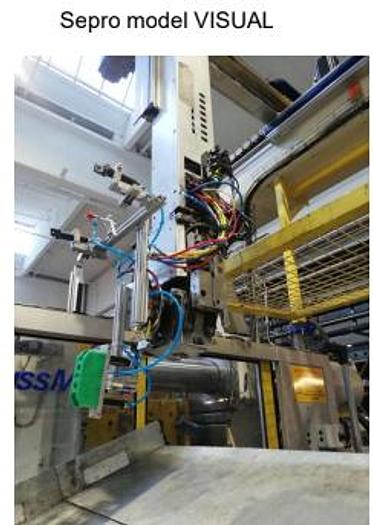

Handling / Robot (YES/NO) YES

Brand SEPRO

Model 4040 S3 Visual

Year 2004

Serial no. P 10830
