2007 HASSIA Polyflex THM 8/48

Used HASSIA Polyflex THM 8/48 , year 2007 for sale

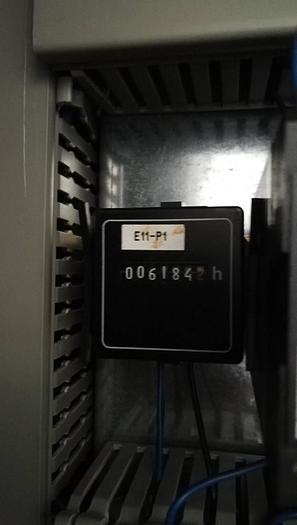

For hours check picutre

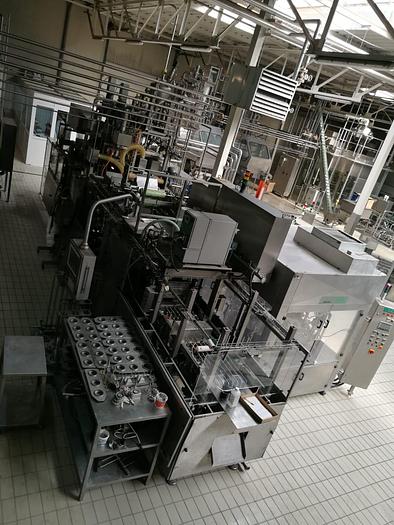

Cup Form-Fill & Seal machine HASSIA,

Technical Specifications:

Output: 10800 U/h

Cup Volume (Min): 70 g

Cup Volume (Max): 180 g

Material Width: 480 mm

Forming Area (V): 80 mm

Depth Of Draw: 90 mm

Cip:Yes

Hygienic Standard:Ultra clean

Other Specifications:

Cup Form Fill and Seal machine HASSIA Polyflex 8/48, year 2007

6 lanes

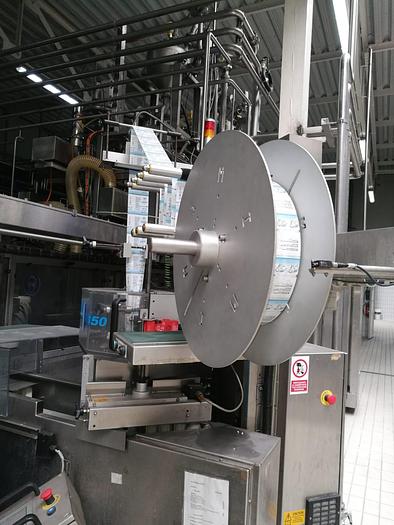

With sleever Graham VF650

Cup volume:

70ml (without sleeve)

125ml (with sleeve)

150ml (with sleeve)

180ml (with or without partial sleeve)

- 25-30 strokes/min (9000-10800 c/h) without sleeve

- 20-25 strokes/min

(7200-9000c/h) with sleeve

- 1 takt = 6 pcs x 150 g

- UV lamp for cleaning the thermoseal foil

- Filling chamber with filtrated airFilling temperature: 50 gr.C for cups with a sleeve application, depending on the product (max.filling temperature 70gr.C for sleeve appllication)

Electrical data:

kW: 64

V: 400 3NPE

A: 3x 125

Hz: 50

The machine is in good condition, not used very much.

It is still installed. Test is not possible, because the PLC has to be changed.

Other Details:

Guarantee: Without guarantee

Current condition: Disconnected. Can't be seen in running condition

Availability: Immediate

Clasification:

Final Products: Yoghurt

Used Materials: Cups

Processes: Filling

Application: Ultra-Clean
